Assembly Instructions for Tchibo 826550 2-in-1 Rotary Table Cabinet
A comprehensive assembly guide for the Tchibo 826550 2-in-1 Rotary Table Cabinet. This manual includes step-by-step installation instructions, safety warnings, maintenance tips, and care guidelines to ensure proper setup and longevity of...
Quick answers from the manual
Quick answer
- This manual provides assembly instructions for the Tchibo 826550 2-in-1 Rotary Table Cabinet. It includes a parts list, 21 assembly steps, safety warnings regarding wall mounting, and maintenance/care instructions. p. 1, 2, 20
Key actions
- Assemble the cabinet p. 10, 25
- Wall mounting p. 20
Problems and fixes
Loose connections
Regularly check and tighten all screw connections.
p. 3, 4, 5, 6Maintenance and reset
- Regular maintenance p. 3, 4, 5, 6
Where to find it in the PDF

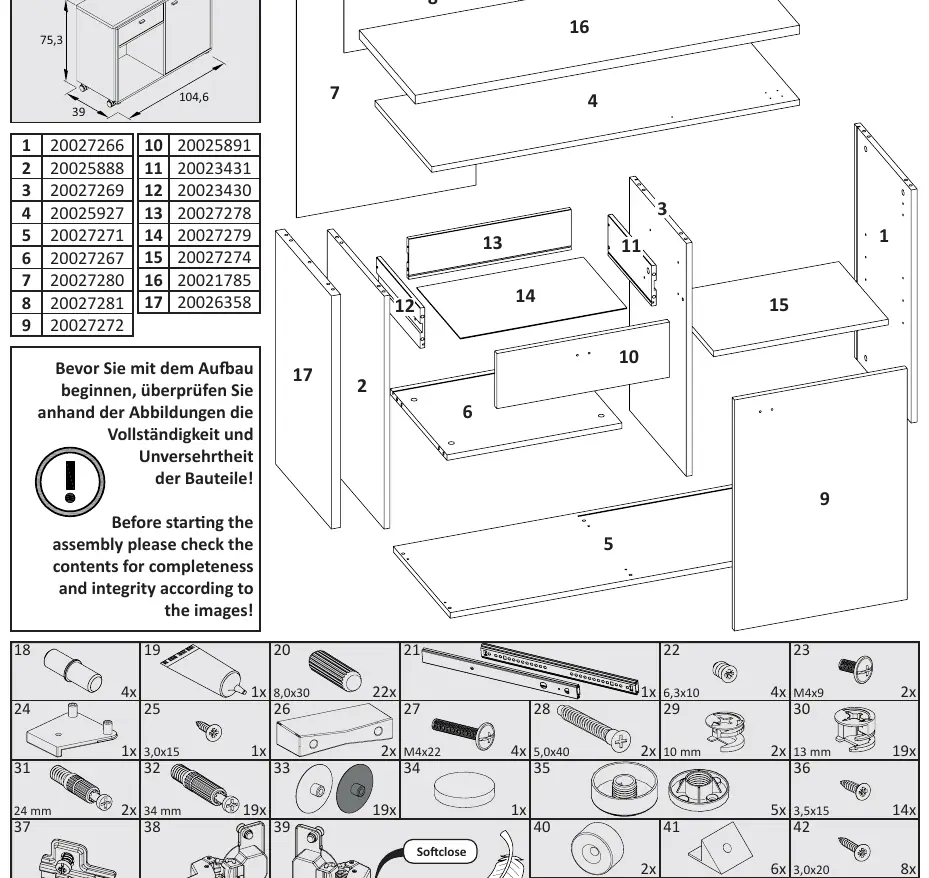

- Parts List p. 2
- Assembly Steps p. 10, 25
Table of contents
Manual images
Click an image to enlargeImportant Information
This document provides assembly instructions for the Tchibo 826550 2-in-1 Rotary Table Cabinet. Please read all instructions carefully before beginning assembly. Keep this manual for future reference.
Safety Warnings
- Choking Hazard: Keep small parts, packaging bags, and films out of reach of babies and small children.
- Tipping Hazard: Wall mounting is mandatory to prevent the unit from tipping over.
- Installation Safety: Before drilling, check for electricity cables and water pipes. Ensure the unit is mounted on solid masonry, not on conductive surfaces.
Assembly Preparation
Before starting, check the contents for completeness and integrity according to the images provided in the manual. Use a soft surface, such as a blanket, during assembly to protect the furniture from scratches.
Assembly Steps
The assembly process involves 21 steps, including:

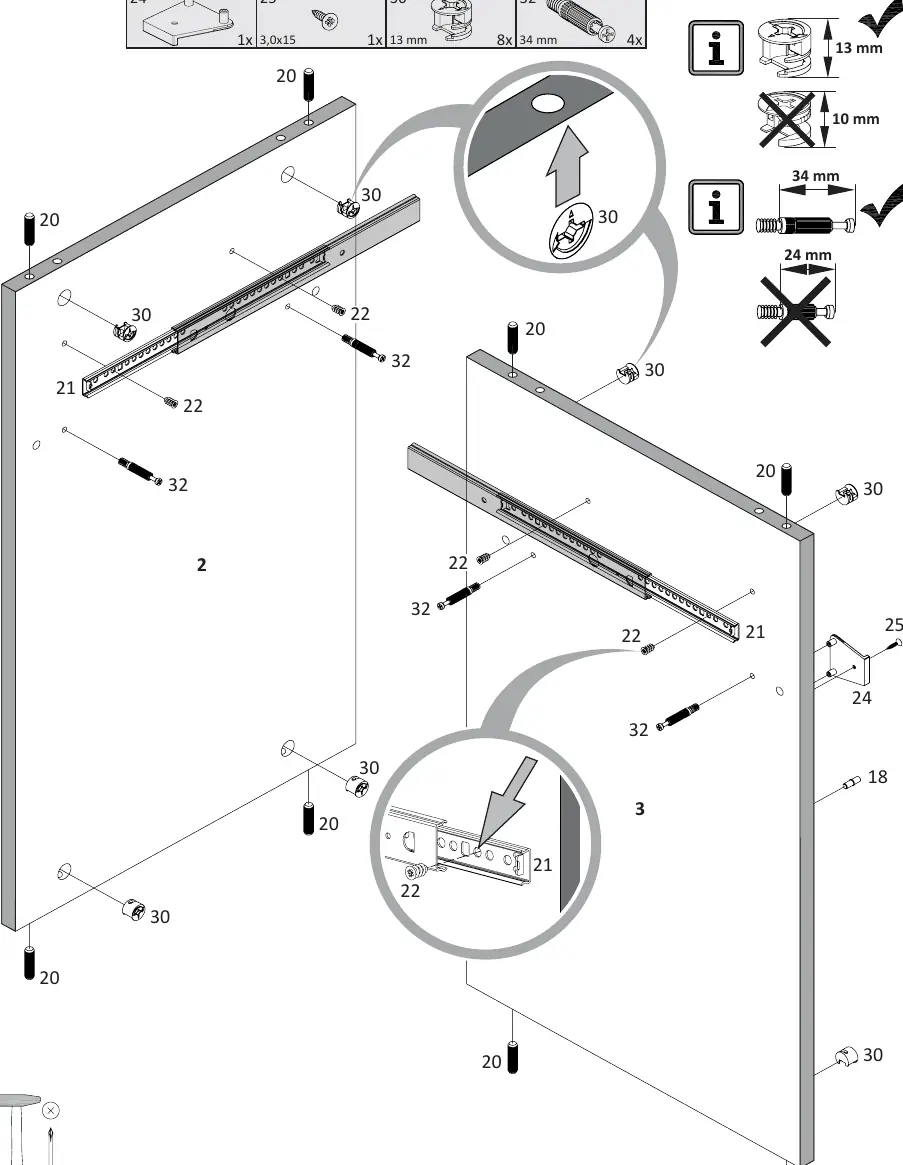

- Preparing side panels and attaching drawer runners.
- Assembling the main frame and internal shelves.
- Installing the back panel.
- Attaching the top panel.

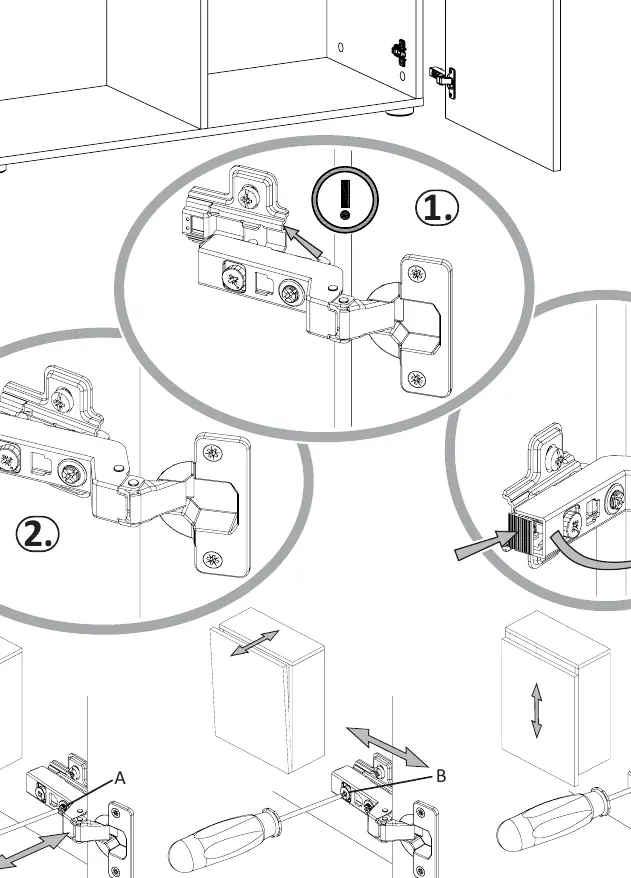

- Installing the door hinges and drawer mechanism.
- Final wall mounting for safety.
Maintenance and Care
- Maintenance: Regularly check and tighten all screw connections. Loose connections can compromise safety.
- Cleaning: Use soft, slightly moistened cloths or shammies. Wipe all parts dry after cleaning.
- Avoid: Do not use abrasive cleaners, solvents, or microfibre cloths.
- Cosmetics: Some concentrated cosmetics can damage the material if not wiped off immediately.
Disposal
The packaging is made of recyclable materials. Dispose of the product and packaging in accordance with local environmental regulations. Do not dispose of the product in household waste at the end of its life.
Manufacturer information
Tchibo GmbH
Practical help
Common problems
Loose connections
Regularly check and tighten all screw connections to ensure safety.
Surface damage
Avoid abrasive cleaners, solvents, and microfibre cloths. Wipe away moisture and cosmetics immediately.
Before use
- Check all parts for completeness against the parts list on page 2.
- Prepare a soft surface (e.g., a blanket) to prevent scratches.
- Verify the location of electricity cables and water pipes before drilling.
- Ensure the wall mounting material is suitable for your specific wall type; replace if necessary.
- Keep small parts away from children.
Specs in practice

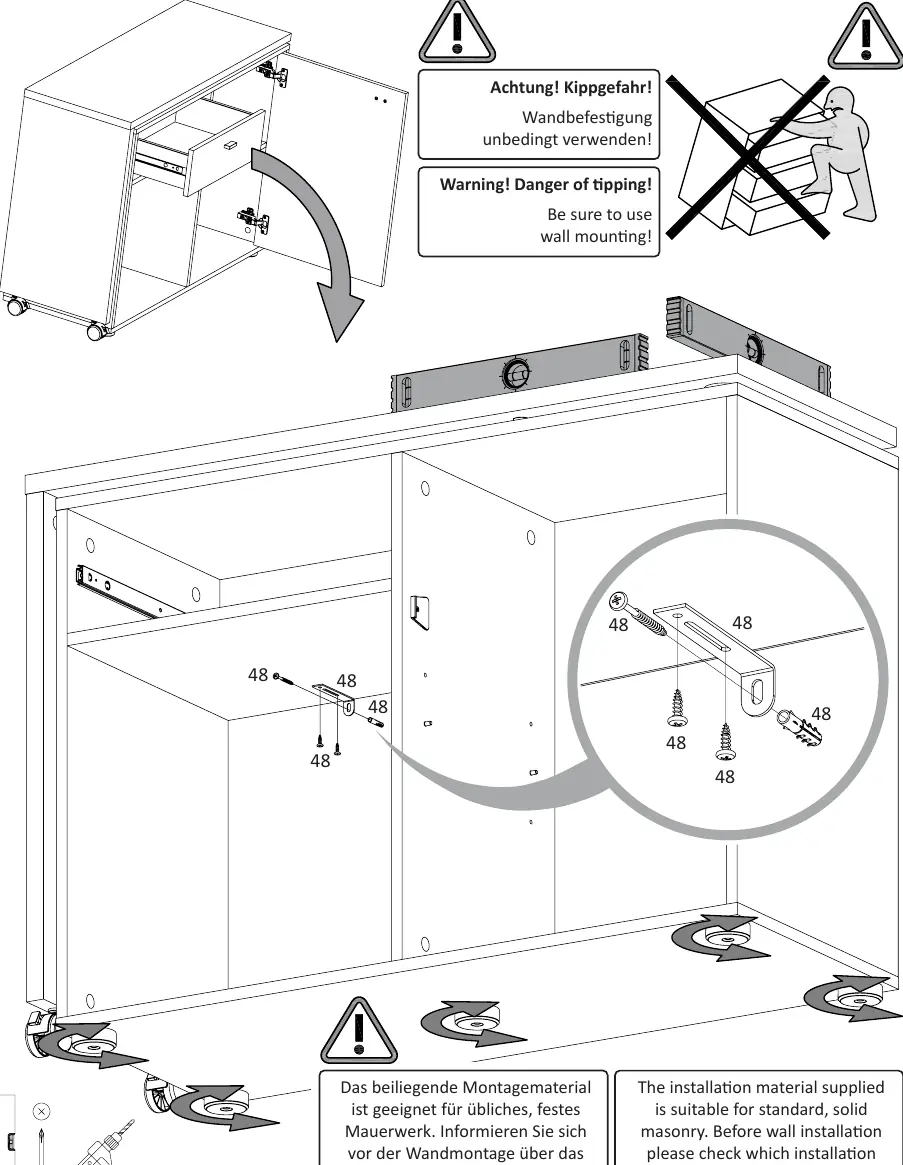

- Wall mounting
- Mandatory safety requirement to prevent tipping; ensure the wall is solid masonry.
Images and diagrams
- The manual uses numbered steps (1-21) with detailed diagrams showing part placement and screw locations.
- Icons indicate specific tools required (hammer, screwdriver) and safety warnings (e.g., 'A=B!!' for alignment).
Model compatibility
- The supplied installation material is suitable for standard, solid masonry only.
