Assembly Instructions for Tchibo Bathroom Vanity Unit 140110AS92XXIII

Important Information from the Manual

This bathroom vanity unit requires assembly by two people. For safety and stability, the unit must be fastened to a suitable wall. The provided mounting materials are intended for standard, solid walls; please verify your wall type before drilling. Ensure there are no pipes or electrical wiring behind the wall at the drilling location.

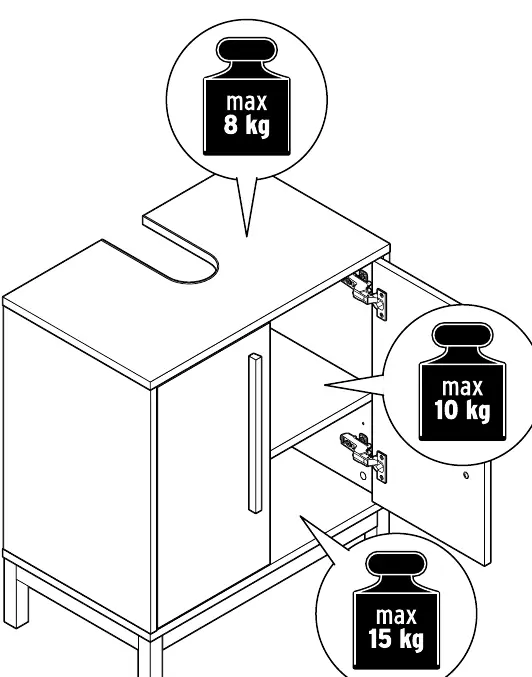

Load Limits

• Top surface: max 8 kg
• Shelf: max 10 kg
• Bottom surface: max 15 kg

Safety Warnings

• Danger to children: Keep packaging materials (bags, films) away from children to prevent suffocation. Keep small parts out of reach during assembly to prevent choking hazards.
• Stability: Do not stand or sit on the unit. It must be secured to a wall to prevent tipping.
• Assembly: Assemble on a soft, level surface (e.g., the transport cardboard) to avoid scratching the finish.

Assembly Instructions

The assembly process involves 22 steps. Key phases include:

• Preparation: Identify all parts using the parts list on pages 8-10.
• Main Body Assembly: Assemble the frame and panels using the provided screws and connectors. Ensure the unit is level and plumb.
• Wall Mounting: Secure the unit to the wall using the provided textile strap and mounting hardware.
• Door Installation: Attach hinges to the doors and mount them to the unit.

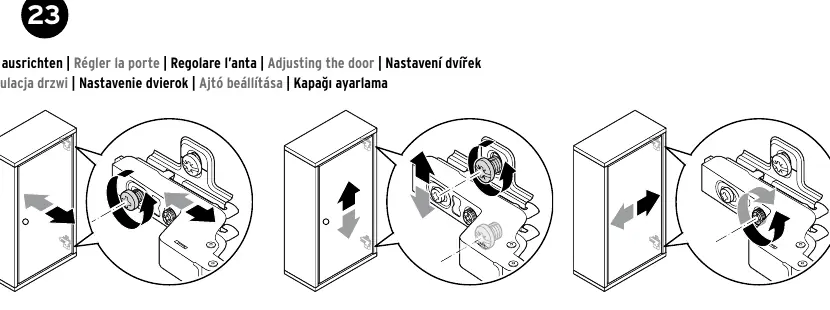

• Adjustment: Use the hinge screws to align the doors properly.

Care and Maintenance

Do not use abrasive or caustic cleaning agents or hard brushes. Clean surfaces with a slightly damp cloth and wipe dry immediately.

Service Information

If a part is missing or defective, please refer to the service information on the back page of the manual. When contacting customer service, have the product number (140110AS92XXIII) and the specific part number ready.
