Tecnolite 10LQLEDY30MVN LED Outdoor Reflector Instructions
Installation and maintenance guide for the Tecnolite 10LQLEDY30MVN 10W LED outdoor lighting fixture, including safety precautions and technical specifications.
Table of contents
Product Overview
The Tecnolite 10LQLEDY30MVN is a high-quality LED lighting fixture designed specifically for outdoor use. It features a robust construction with an IP66 rating, ensuring protection against dust and powerful water jets, and an IK05 impact protection rating. This unit is designed to provide efficient illumination while maintaining durability in outdoor environments.
Technical Specifications
The fixture operates on a wide voltage range of 100 V to 240 V at 50/60 Hz. It consumes 10 W of power and is designed for constant voltage operation. Users should always verify the specific electrical data printed on the product label before installation to ensure compatibility with the local power supply.
Safety and Installation
Safety is paramount during the installation process. The fixture must be installed at a minimum distance of 0.50 meters away from any combustible material to prevent fire hazards. The electrical connection requires a physical ground connection. Ensure the power is completely disconnected before starting any installation or maintenance work. Use appropriate anchors and screws suitable for the mounting surface, as these are not included with the product.
Maintenance
To ensure the longevity of the fixture, perform periodic inspections of all electrical connections. The luminaire and its internal parts can become hot during operation; always allow the unit to cool down before handling. Use a clean, dry rag for cleaning. If maintenance is required, ensure the power supply is disconnected. For further assistance or service inquiries, contact Tecnolite customer service centers or visit their official website at www.tecnolite.mx.
Official resources from the manual
Manufacturer information
Tecnolite
Practical help
Common problems
Fixture overheating
Ensure the unit is installed at least 0.50m away from combustible materials and allow it to cool before touching.
Electrical connection issues
Verify that the ground connection is physical and that all wiring is tightened securely.
Before use
- Verify the power supply matches the 100-240V range.
- Ensure the mounting surface is suitable for the weight of the fixture.
- Confirm that the installation location is at least 0.50m away from flammable materials.
- Prepare appropriate anchors and screws for the specific wall type.
- Ensure the power is disconnected at the main breaker.
Images and diagrams

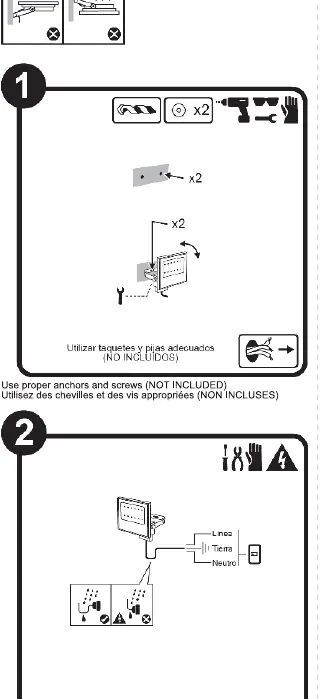

- The installation diagram shows the correct orientation for mounting the bracket to the wall.
- The electrical diagram illustrates the connection points for Line, Neutral, and Ground wires.
Model compatibility
- Not suitable for operation outside the specified voltage range.
- Requires a physical ground connection for safe operation.
