User Manual for Tecnolite 12TLLED510MVCCN Indoor LED Luminaire
Quick guide for the Tecnolite 12TLLED510MVCCN indoor LED luminaire. Includes installation steps, CCT color temperature selection, technical specifications, and safety precautions.
Table of contents
Quick guide from the manual
This document provides installation and operation instructions for the Tecnolite 12TLLED510MVCCN indoor LED luminaire. The fixture operates on 100-240V and features a selectable CCT (Correlated Color Temperature) function. Ensure all safety precautions are followed during installation.
Installation
- Mounting: Secure the luminaire base to the desired surface.
- Wiring: Connect the electrical wires according to the diagram provided. Ensure the power is disconnected before starting.
- Grounding: Ensure the ground connection is physical and properly secured.
- Final Assembly: Attach the luminaire housing to the base.
CCT Color Temperature Selection
The luminaire allows for color temperature adjustment:
- Warm light (3000 K): Soft, warm ambiance.
- Neutral white light (4000 K): Balanced lighting.
- Daytime lighting (6500 K): Bright, cool light.
Safety and Maintenance
- Fire Safety: The luminaire must be installed at a minimum distance of 0.50 meters from any combustible material.
- Maintenance: Always disconnect the power source before cleaning. Use a clean, dry rag to clean the luminaire and its internal parts.
- Handling: The lamp and other parts of the luminaire may become hot during operation; use gloves if handling shortly after use.
Technical Specifications
- Voltage: 100-240V ~ 50/60 Hz
- Power: 12W
- Current: 0.12 A
- Base: LED integrated
Manufacturer information
Tecnolite
Practical help
Common problems
Luminaire gets hot during operation
Disconnect the power source and allow the luminaire to cool down before handling or cleaning.
Risk of fire
Ensure the luminaire is installed at least 0.50 meters away from any combustible materials.
Before use
- Verify the power supply is 100-240V.
- Ensure the power is disconnected before starting installation.
- Check that the installation area is free of combustible materials within 0.5m.
- Ensure the ground connection is physical and secure.

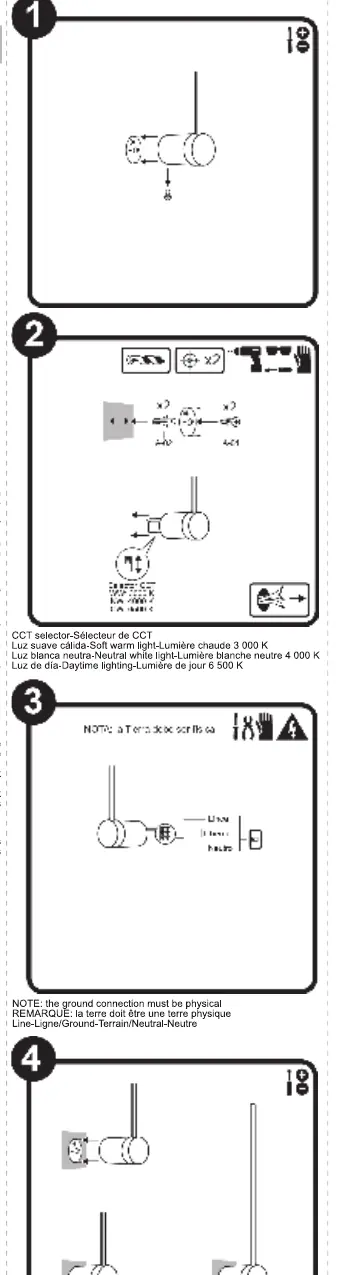

Images and diagrams
- Step 1: Mounting the base to the surface.
- Step 2: Wiring the electrical connections.
- Step 3: Connecting the ground wire.
- Step 4: Final assembly of the fixture.
Model compatibility
- Designed for indoor use only.
- Not suitable for constant voltage work above specified limits.
