User Manual for Tefal Steam Generator Iron GV9810xx Series

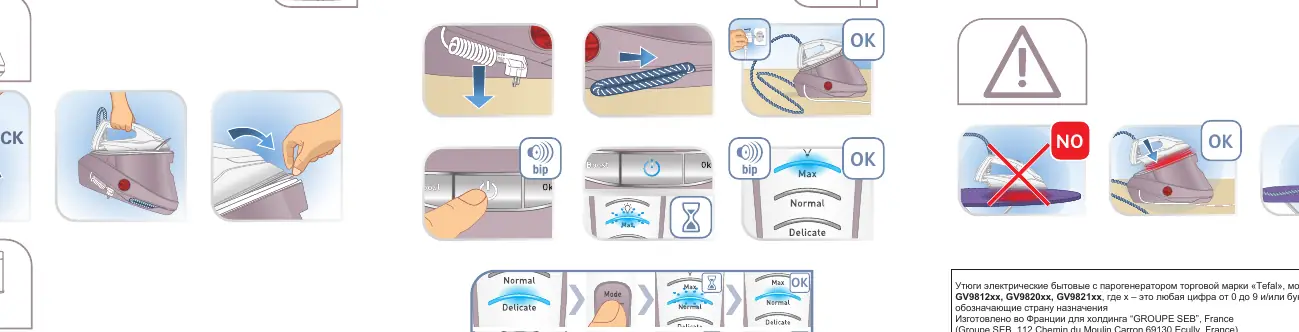

Quick Start and Safety

Before using your steam generator iron for the first time, please read the safety and use instructions booklet provided with the device. Ensure the iron is placed on a stable surface. The device features various steam modes and an automatic shut-off function for safety.

Operating Modes

The iron features several steam modes to suit different fabric types and ironing needs. You can switch between modes using the control panel on the handle:

• Smart: Automatic adjustment for optimal results.
• Delicate: Lower steam output for sensitive fabrics.
• Normal: Standard steam output for everyday ironing.
• Max: High steam output for stubborn creases.
• Boost: Maximum steam burst for heavy-duty ironing.

The iron also includes a light indicator system to show the current status and mode selection.

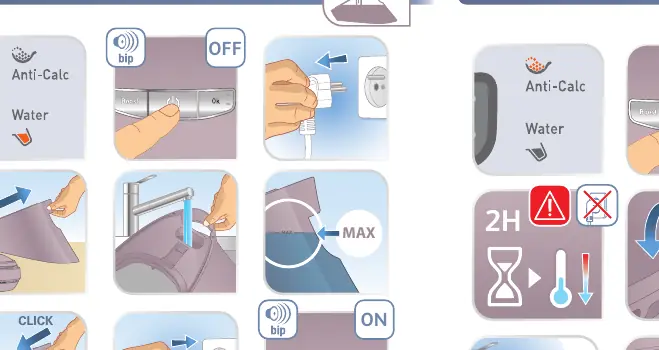

Water Tank Maintenance

To fill the water tank:

1. Ensure the iron is unplugged or in a safe state.
2. Remove the water tank from the base unit.
3. Fill the tank up to the MAX indicator line.
4. Reinsert the tank until you hear a click, ensuring it is securely locked in place.

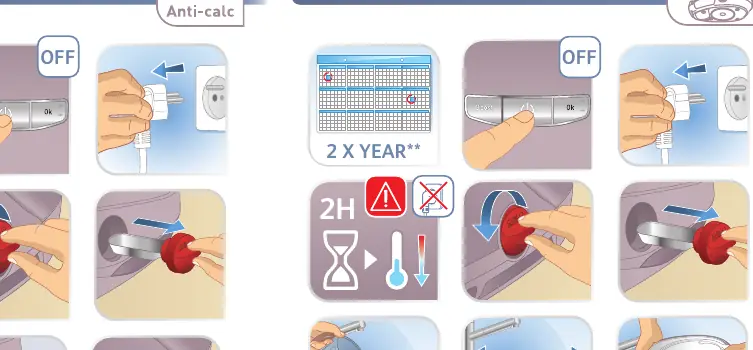

Anti-Calc Procedure

To maintain performance and prevent scale buildup, perform the anti-calc procedure twice a year:

• Ensure the device is cool and unplugged.
• Locate the anti-calc collector, usually found on the side or back of the base unit.
• Unscrew and remove the collector.
• Rinse the collector under running water to remove scale deposits.
• Reinsert and tighten the collector securely.

Technical Specifications

• Voltage: 220-240 V
• Power Consumption: 2740-3260 W
• Frequency: 50-60 Hz
