User Manual for Terra LCD/LED 2435W HA Monitor
Quick guide for the Terra LCD/LED 2435W HA monitor. Includes setup instructions, OSD menu navigation, stand adjustments, technical specifications, and troubleshooting tips.
Quick answers from the manual
Quick answer
- The Terra 2435W HA is a 24-inch monitor. To set it up, connect the power cord, video cable (HDMI, DisplayPort, or VGA), and audio cable. Use the front-panel buttons to access the OSD menu for image and audio adjustments. p. 6
Key actions
- Connect cables p. 6
- Adjust stand p. 7
- Access OSD menu p. 8, 10
First start
- Connect power and video cables, then power on the computer followed by the monitor. p. 6
Show 4 more answers Show less
Problems and fixes
No power
Check power cord and outlet.
p. 15
No image
Check video cable and brightness settings.
p. 15Maintenance and reset
- Use the 'Memory Recall' function in the OSD menu to restore factory settings. p. 12
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Resolution | 1920 x 1080 | Full HD maximum resolution | p. 14 |
| Power | AC 100-240 V | Input voltage | p. 14 |
| Speaker | 1.5W x 2 | Built-in speaker output | p. 14 |
Where to find it in the PDF
- Installation p. 6
Table of contents
Manual images
Click an image to enlargeQuick Guide
The Terra LCD/LED 2435W HA is a 24-inch high-resolution monitor. This guide provides essential information for installation, operation, and maintenance. Always ensure the monitor is placed in a clean, dry environment and connected to a grounded power outlet.

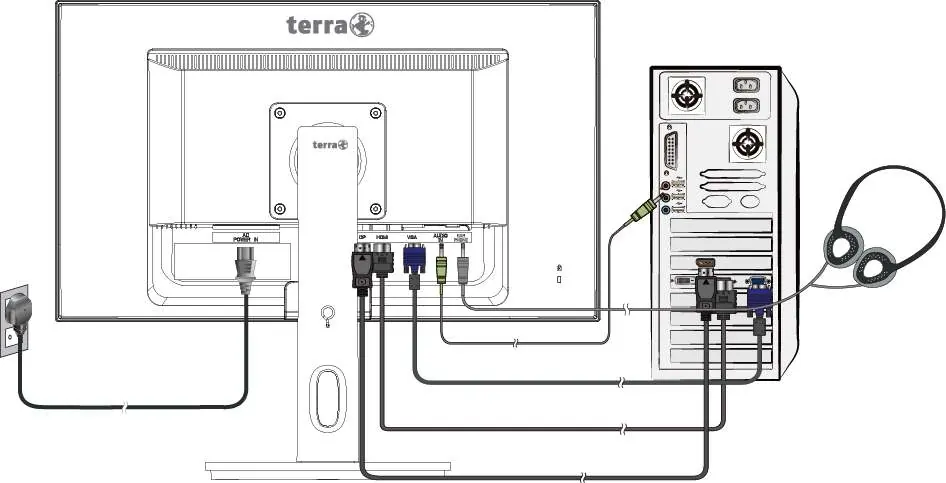

Installation
Follow these steps to set up your monitor:
- Power Off: Ensure both the monitor and computer are powered off before connecting cables.
- Video Connection: Connect the HDMI, DisplayPort, or VGA cable from the computer output to the corresponding monitor input.
- Power Connection: Connect the power cord to a properly grounded AC outlet and then to the monitor.
- Audio Connection: Connect the audio cable from the computer's audio output to the monitor's audio input.
- Power On: Power on the computer first, then the monitor.
- Settings: Configure the resolution and refresh rate (e.g., 1920 x 1080 @ 60 Hz) in your computer's display settings.
Stand Adjustments
The monitor features a high-adjustable stand base:
- Tilt Angle: The screen can be tilted up by 15° and down by -5°.
- Lift Range: The height can be adjusted within a range of 120mm.
OSD Menu and Controls
The monitor features front-panel buttons for OSD (On Screen Display) navigation:
- OSD Menu On/Off: Opens or closes the main menu.
- Scroll Down/Decrease: Navigates down or decreases values.
- Scroll Up/Increase: Navigates up or increases values.
- Confirm Select: Confirms menu selections.
- Power ON/OFF: Turns the monitor on or off.
The OSD menu allows adjustments for Contrast/Brightness, Input Select, Audio, Color, and Image settings. Use the 'Memory Recall' function to restore factory settings.
Technical Specifications
Key specifications for the 2435W HA model include:
- Panel Size: 61 cm (24 inch) TFT.
- Resolution: Full HD 1920 x 1080 max.
- Refresh Rate: 60Hz max.
- Power Input: AC 100-240 V.
- Speakers: 1.5W x 2.
- Operating Temperature: 0°C to +40°C.
Troubleshooting
If you encounter issues, check the following:
- No Power: Ensure the power cord is securely connected and the outlet is providing voltage.
- No Image: Verify that the video cable is tightly secured to both the computer and the monitor. Adjust brightness settings.
- Abnormal Colors: Check the video cable for loose or broken pins. Try connecting to another computer or reset to default settings.
Practical help
Common problems
No power
Ensure the AC power cord is securely connected to the monitor and a functioning power outlet.
No screen image
Check that the video cable is tightly secured to the computer's video output and the monitor's input. Adjust brightness settings.
Wrong or abnormal colors
Check the video cable for loose or broken pins. Connect the monitor to another computer to verify, or use the 'Memory Recall' function to reset settings.
Before use
- Unpack the monitor and remove all packaging materials.
- Ensure the power source matches the label on the rear of the monitor.
- Connect the appropriate video cable (HDMI, DisplayPort, or VGA).
- Connect the power cord to a grounded outlet.
- Connect the audio cable if using the monitor's speakers.
- Adjust the stand tilt and height for comfortable viewing.
Show more Show less
Specs in practice
- Power Management
- VESA DPMS compatible; consumes ≤ 0.3 W in Off Mode.
- Operating Temperature
- The monitor should be used in environments between 0°C and +40°C.
Images and diagrams
- Front buttons: 1 (Menu), 2 (Down/Decrease), 3 (Up/Increase), 4 (Confirm), 5 (Power), 6 (LED Indicator).
- Rear ports: Power input, DisplayPort, HDMI, VGA, Audio In, Earphone Out.
Model compatibility
- Supports various timing modes including VGA, MAC, VESA, and CVT standards.
- Video timing modes supported include 480i/p, 576i/p, 720p, 1080i/p.
