User Manual for Terra 2256W PV LED Monitor
Quick guide for the Terra 2256W PV LED monitor. Includes installation steps, OSD menu settings, stand adjustments, and troubleshooting tips.
Quick answers from the manual
Quick answer
- To set up the monitor, connect the video cable (DisplayPort, HDMI, or DVI) and power cord. Power on the computer, then the monitor. Use the front panel buttons to access the OSD menu for adjustments. p. 6
Key actions
- Connect video and power cables p. 6
- Adjust stand (tilt, lift, swivel, pivot) p. 7
- Reset to factory settings p. 12
First start
- Connect cables, power on, and set resolution in Windows display settings. p. 6
Show 4 more answers Show less
Problems and fixes
No power
Check power cord connection and outlet.
p. 15
No screen image
Check video cable connection and brightness.
p. 15Maintenance and reset
- Use Memory Recall in the OSD menu to reset video and audio controls. p. 12
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Resolution | 1920 x 1080 | Full HD maximum resolution | p. 14 |
| Power | AC 100-240 V | Input voltage | p. 14 |
Where to find it in the PDF
- Safety Precautions p. 4
- Quick Installation p. 6
- Stand Adjustment p. 7
- OSD Functions p. 10, 11, 12
- Technical Specifications p. 14
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This guide provides essential information for setting up and operating the Terra 2256W PV LED monitor. Ensure the monitor is placed on a stable surface and connected to a grounded power outlet. Use the provided cables for optimal performance.
Safety Precautions
- Operate only with the correct power source indicated on the rear label.
- Do not attempt to repair the monitor yourself; it contains high-voltage parts.
- Unplug the monitor immediately if it gets wet, emits smoke, or produces abnormal odors.
- Keep the monitor away from magnetic objects, motors, and heat sources.
- Always unplug the monitor before cleaning. Use a clean, dry cloth; do not apply cleaners directly to the screen.

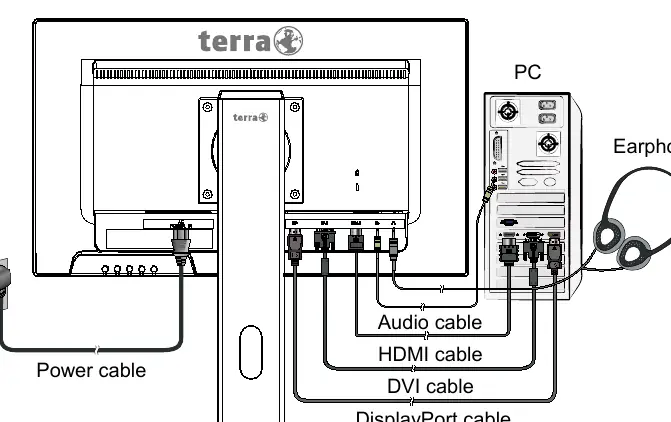

Installation
Follow these steps for initial setup:
- Connect Video Cable: Ensure both the monitor and computer are powered off. Connect the DisplayPort, HDMI, or DVI cable from the computer to the monitor.
- Connect Power: Connect the power cord to a grounded AC outlet and then to the monitor.
- Connect Audio: Connect the audio cable from the computer to the monitor's audio input.
- Power On: Turn on the computer first, then the monitor.
- Configure Settings: In Windows, right-click the desktop, go to Display Settings, and set the resolution to 1920 x 1080 at 60 Hz.
Stand Adjustments
The monitor stand supports the following adjustments:
- Tilt: -5° to 20°
- Lift: Up to 130mm
- Swivel: 140° left and right
- Pivot: 90° right
OSD Menu Functions
Use the buttons on the front panel to navigate the On-Screen Display (OSD) menu:
- Contrast/Brightness: Adjust screen image quality, DCR, and ECO mode.
- Input Select: Switch between DVI, HDMI, and DisplayPort signals.
- Audio Adjust: Control volume and audio input source.
- Colour Adjust: Select color presets (Cool, Normal, Warm, User Color) or Anti Blue Light mode.
- Manual Image Adjust: Adjust sharpness and video mode (4:3 or Full Screen).
- Setup Menu: Configure OSD position, language, and timeout.
- Memory Recall: Reset video and audio controls to factory settings.
Troubleshooting
- No Power: Check that the power cord is securely connected to the monitor and a working outlet.
- No Image: Ensure the video cable is tightly secured to both the computer and the monitor. Adjust brightness settings.
- Abnormal Colors: Check the video cable connection for loose or broken pins. Try connecting to another computer or use the Memory Recall function.
Technical Specifications
- Panel Size: 54.6 cm (21.5")
- Resolution: Full HD 1920 x 1080 max
- Power Input: AC 100-240 V
- Operating Temperature: 0°C to +40°C
- Speaker: 1W x 2
Practical help
Common problems
No power
Ensure the AC power cord is securely connected to the monitor and the power outlet. Verify the outlet is working with another device.
No screen image
Ensure the video cable is tightly secured to the computer and monitor. Adjust the brightness settings.
Abnormal colors
Check the video cable for loose or broken pins. Connect to another computer to test. Use the 'Memory Recall' function to reset settings.
Before use
- Ensure the monitor is placed in a clean, dry, and well-ventilated area.
- Verify the power source matches the label on the rear of the monitor.
- Ensure the power cord is connected to a grounded outlet.
- Remove all packaging materials, including plastic bags and foam.
Show more Show less
Specs in practice
- Displayable Resolution
- Maximum resolution is 1920 x 1080 at 60Hz.
- Operating Temperature
- The monitor should be used in environments between 0°C and +40°C.
Images and diagrams
- The stand supports tilt (-5° to 20°), lift (130mm), swivel (140°), and pivot (90°).

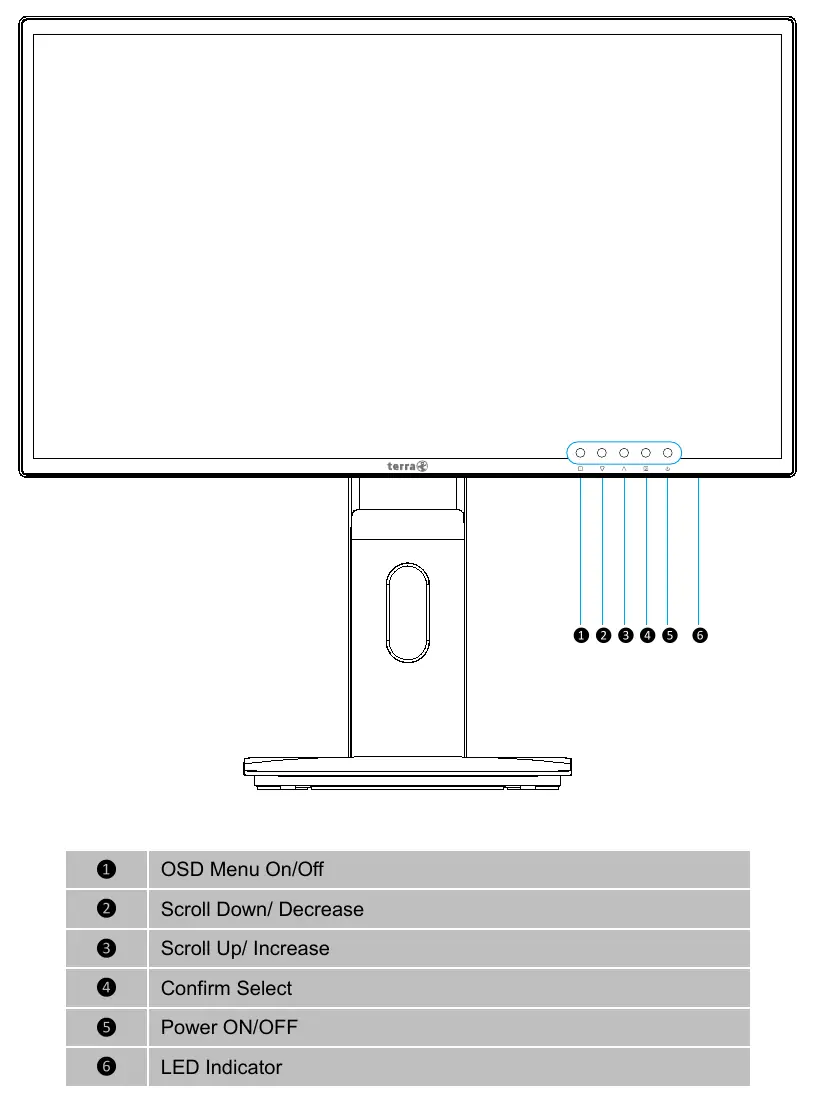

- Front buttons control OSD menu, input selection, and power.

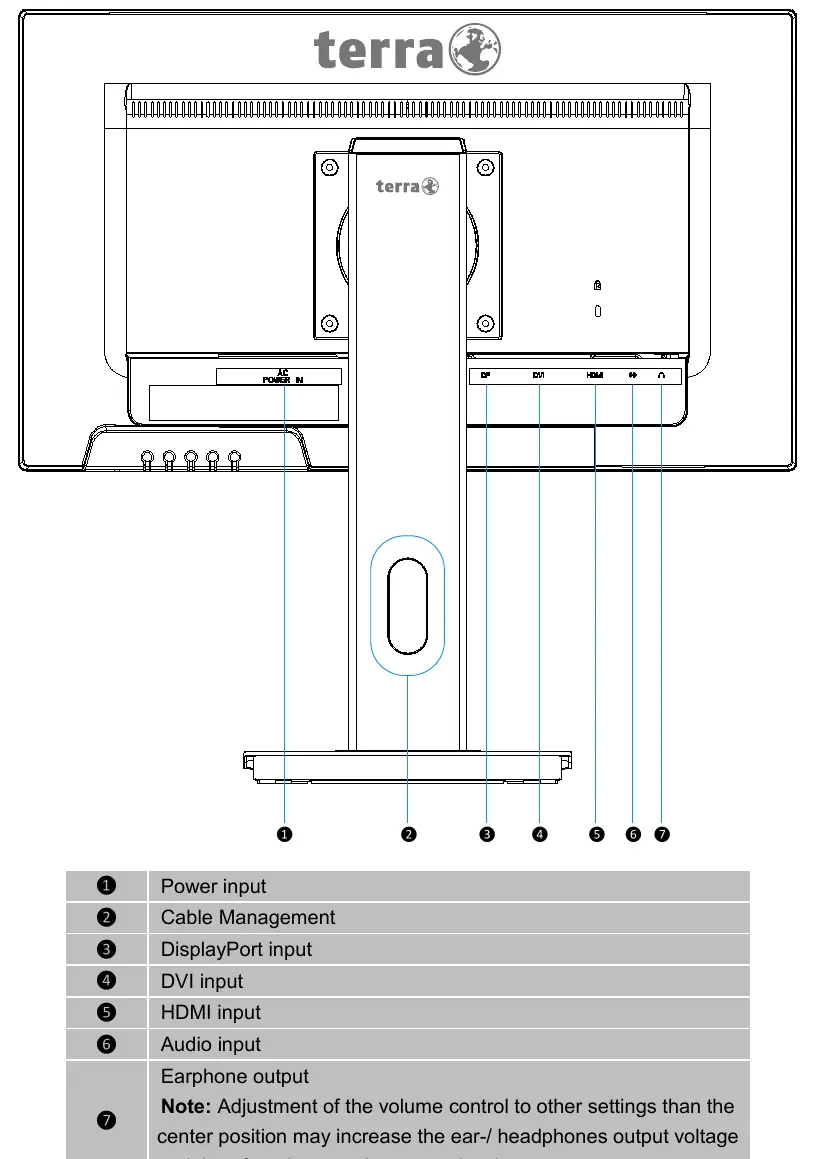

- Rear ports include Power, DisplayPort, DVI, HDMI, Audio In, and Earphone Out.
Model compatibility
- Supports VESA DPMS power management.
- Compatible with Windows display settings for resolution and refresh rate.
