User Manual for Philips S Line 242S9 Monitor

Comprehensive user guide for the Philips S Line 242S9 monitor. Includes installation instructions, OSD menu navigation, image optimization settings, technical specifications, and troubleshooting tips.

Quick answers from the manual

Quick answer

  • The Philips 242S9 is a 23.8-inch monitor. Setup involves attaching the base, connecting power and signal cables, and adjusting OSD settings for optimal performance. p. 5, 6, 7

Key actions

  • Install Base p. 5
  • Connect to PC p. 6
  • Lock/Unlock OSD p. 27

First start

  • Connect power and signal cables, turn on computer and monitor. If image appears, installation is complete. p. 6
Show 4 more answers Show less

Problems and fixes

No Picture

Check power cord, power button, and signal cable connection.

p. 24
Image not centered

Use 'Auto' function or adjust Phase/Clock in OSD.

p. 24

Maintenance and reset

  • To reset to factory settings, press the OSD button and select 'Setup' > 'Reset'. p. 26

Technical specifications

Parameter Value Meaning Pages
Native Resolution 1920 x 1080 @ 60 Hz Optimal resolution for the display. p. 15
Panel Size 23.8 inch (60.5 cm) Physical screen size. p. 15

Where to find it in the PDF

  • Installation p. 5
  • Technical Specifications p. 15, 16
Table of contents

Manual images

Click an image to enlarge

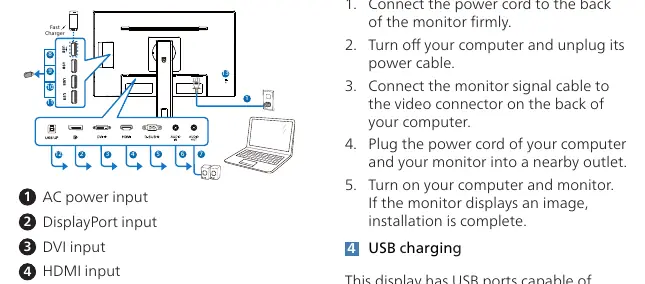

Port layout Page 8 Control buttons Page 9 Height adjustment and pivot Page 11

Quick guide from the manual

This guide provides essential information for setting up and using your Philips S Line 242S9 monitor. For optimal performance, ensure your computer is set to the native resolution of 1920 x 1080 at 60 Hz.

Safety precautions and maintenance

  • Keep the monitor away from direct sunlight, heat sources, and oil.
  • Do not block ventilation holes.
  • Use only the approved power cord provided by Philips.
  • Clean the screen with a slightly damp cloth when the power is off. Do not use organic solvents like alcohol or ammonia.
  • Always activate a screen saver or periodic screen refresh to prevent burn-in or ghost imaging.
  • Do not tilt the monitor downward by more than -5 degrees to avoid panel damage.

Installation

Installing the base:

Port layout
Port layout
Height adjustment and pivot
Height adjustment and pivot
  1. Place the monitor face down on a smooth surface.
  2. Attach the base to the stand and tighten the screw at the bottom.
  3. Attach the stand to the VESA mount area until the latch locks.

Connecting to your PC:

  1. Connect the power cord to the back of the monitor.
  2. Turn off your computer and unplug its power cable.
  3. Connect the signal cable (HDMI, DVI, VGA, or DisplayPort) to the monitor and your computer.
  4. Plug the power cords into a nearby outlet and turn on the devices.

Operating the monitor

The monitor features an On-Screen Display (OSD) menu for adjustments. Use the control buttons on the front bezel to navigate the menu and confirm selections. The SmartImage feature allows you to select presets like EasyRead, Office, Photo, Movie, Game, Economy, and LowBlue Mode to optimize display settings for different content.

Control buttons
Control buttons

Technical specifications

  • Panel Size: 23.8 inch (60.5 cm)
  • Native Resolution: 1920 x 1080 @ 60 Hz
  • Power Consumption: 17.7 W (typ.) at 100VAC
  • VESA Mount: 100mm x 100mm
  • Connectivity: VGA, HDMI 1.4, DVI, DisplayPort 1.2, Audio in/out, USB-B (upstream), 4x USB-A (downstream)

Troubleshooting

If you encounter issues, check the following:

  • No Picture: Ensure the power cord is connected and the power button is ON. Check signal cable connections and ensure the computer is turned on.
  • Image not centered: Use the 'Auto' function in the OSD menu or adjust Phase/Clock (VGA mode only).
  • Flicker: Use the 'Auto' function or adjust Phase/Clock settings.
  • Locked OSD: To lock/unlock the OSD, hold the OSD button while the monitor is off, then press the power button.

Manufacturer information

Philips

Brand profile
Manufacturer website Open official website Support Open support Manufacturer manuals Open manual library

Practical help

Common problems

No Picture (Power LED not lit)

Ensure the power cord is plugged into the outlet and the back of the monitor. Check that the power button is in the ON position.

No Picture (Power LED is White)

Ensure the computer is on and the signal cable is properly connected. Check for bent pins on the cable.

Image not centered

Use the 'Auto' function in the OSD menu or adjust Phase/Clock settings (valid only in VGA mode).

Vertical or Horizontal flicker

Use the 'Auto' function in the OSD menu or adjust Phase/Clock settings (valid only in VGA mode).

Before use

  • Ensure the monitor is placed on a stable surface.
  • Verify the power cord is securely connected.
  • Check that the signal cable is connected to the PC.
  • Set the PC resolution to 1920 x 1080.
Show more Show less

Specs in practice

Native Resolution
1920 x 1080 @ 60 Hz for optimal image quality.
Power Consumption
17.7 W (typical) at 100VAC.

Images and diagrams

  • The base installation involves attaching the base to the stand and then to the monitor.
  • The port layout includes AC power, DisplayPort, DVI, HDMI, VGA, Audio in/out, and USB ports.
  • The OSD buttons are located on the front bezel for menu navigation.

Model compatibility

  • Compatible with Windows 11/10/8.1/8 and Mac OS X.
  • Adaptive Sync is compatible with specific AMD Radeon graphics cards.
