Assembly Instructions for The Home Depot 00-B3907-100 Wood Frame Panel Bed

Quick Guide from the Manual

This guide provides instructions for assembling the The Home Depot 00-B3907-100 Wood Frame Panel Bed. Before beginning, ensure you have all parts and hardware listed in the manual. Assembly requires at least two people and basic tools.

Tools Required

• Screwdriver (not included)
• Allen Wrench (included)

Pre-Assembly Preparation

• Teamwork: Always have at least two people to help with transporting and assembling the product to avoid injury or damage.
• Suitable Location: Assemble the bed near the area where it will be used.
• Sufficient Space: Ensure you have enough room to move around during assembly.
• Avoid Scratches: Use cardboard, blankets, or a carpeted area to protect the furniture during assembly.
• Flat Surface: Ensure the furniture rests on a flat and level surface.

Assembly and Care Advice

• Position each part correctly and insert screws or bolts into their respective holes.
• Turn clockwise to tighten; only tighten fully when the step is completed or when instructed.
• Use appropriate hand tools or power tools carefully to avoid damaging the furniture.
• Save the instructions and store supplied tools for future maintenance.
• Maintenance: After two weeks, check and tighten any loose hardware. Repeat this check every six months.

Assembly Steps

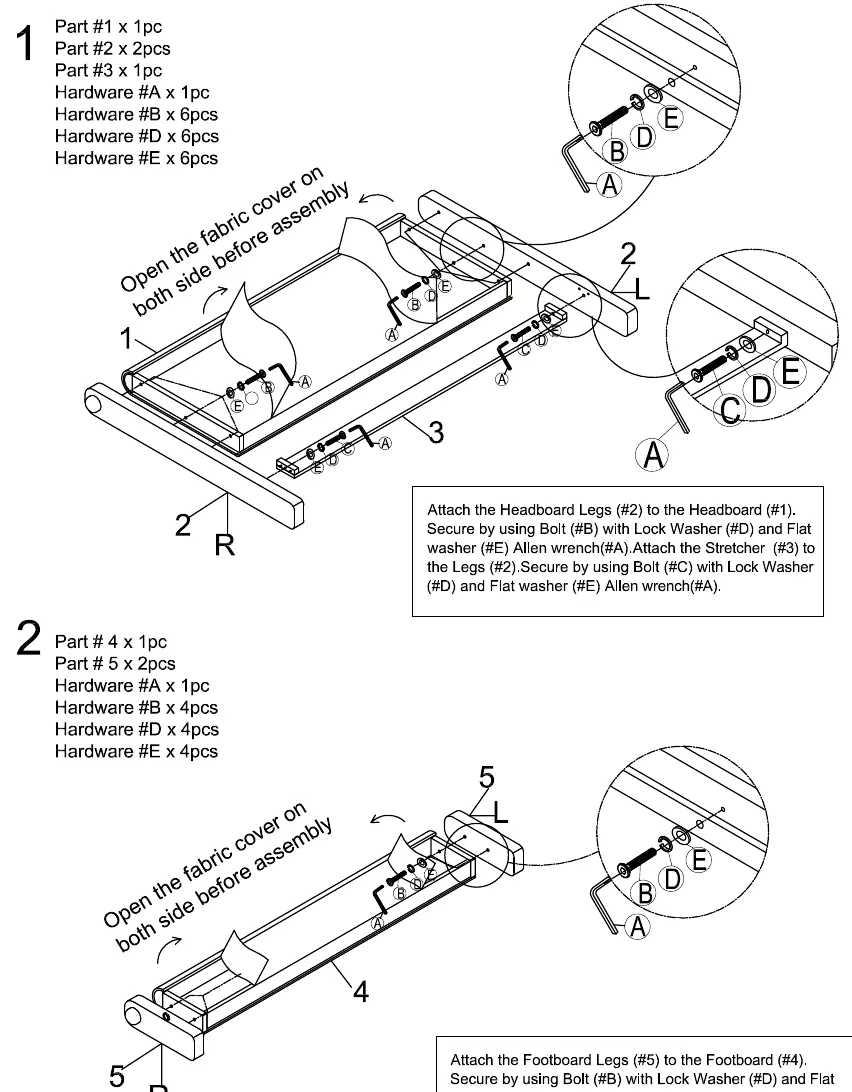

Step 1: Headboard and Stretcher Assembly

Attach the Headboard Legs (#2) to the Headboard (#1). Secure using Bolt (#B) with Lock Washer (#D) and Flat Washer (#E) using the Allen Wrench (#A). Attach the Stretcher (#3) to the legs and secure with Bolt (#C), Lock Washer (#D), and Flat Washer (#E).

Step 2: Footboard Assembly

Attach the Footboard Legs (#5) to the Footboard (#4). Secure using Bolt (#B) with Lock Washer (#D) and Flat Washer (#E) using the Allen Wrench (#A).

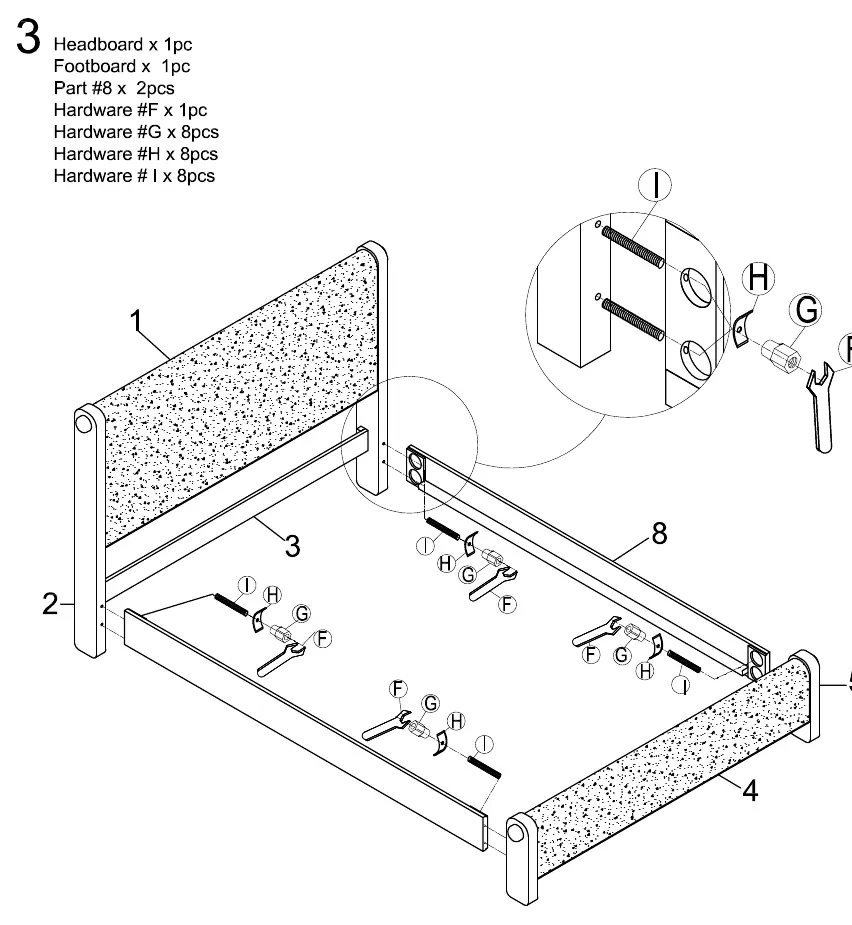

Step 3: Side Rails Assembly

Connect the Side Rails (#8) to the Headboard and Footboard assemblies using the provided hardware (Nuts #G, Curved Washer #H, Bolt #I, and Open Wrench #F).

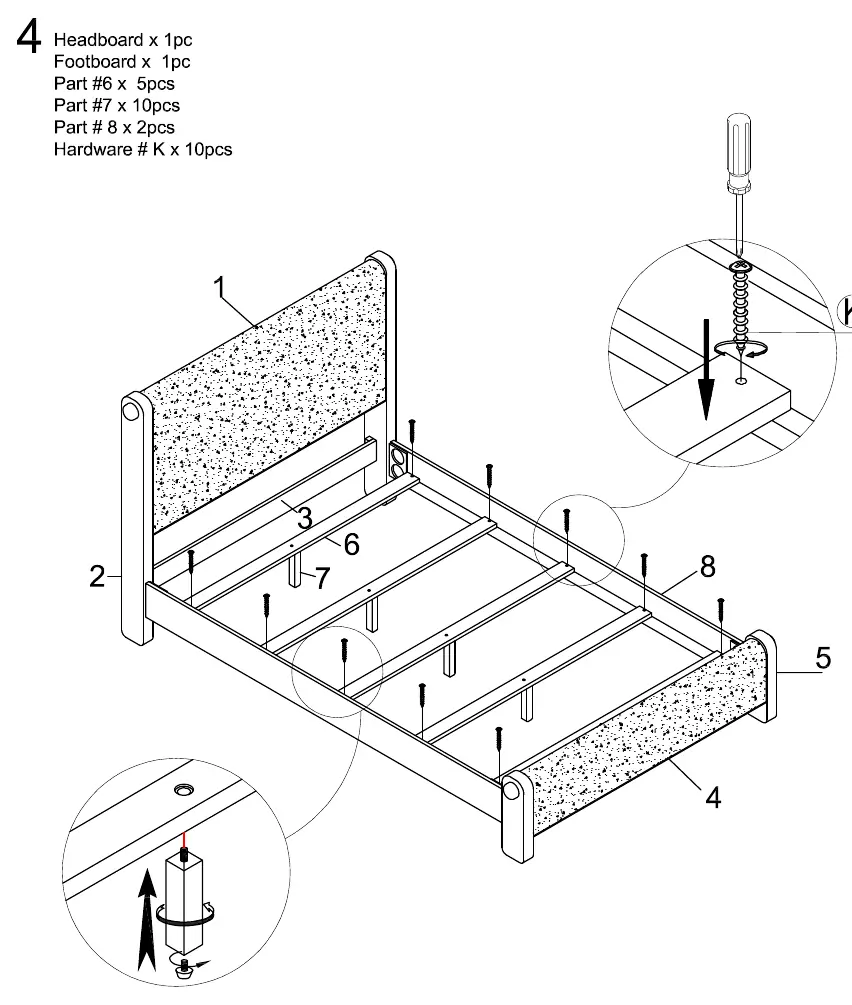

Step 4: Slats Installation

Install the Slats (#6) and Support Slats (#7) onto the frame. Secure the slats to the side rails using Wood Screws (#K) and a screwdriver.

Wall Mounting and Fixing

If securing the furniture to the wall, use the provided expansion wall anchors, which are suitable for masonry walls (drywall, plaster, or concrete). Always check for wires or pipes before drilling. Drill horizontally and ensure a tight fit for the wall anchor.
