User Manual for Thor Kitchen TWC24US Wine Cooler
Quick guide for the Thor Kitchen TWC24US wine cooler. Learn about installation, temperature settings, operating modes, maintenance, and troubleshooting.
Quick answers from the manual
Quick answer
- The Thor Kitchen TWC24US is a 24-inch single-zone wine cooler with a 46-bottle capacity. It features adjustable temperature control (5-18°C), multiple LED lighting modes, and various running modes (STD, ECO, DEMO, Sab). p. 1, 7
Key actions
- Unlock controls p. 7
- Change temperature p. 7
- Switch °C/°F p. 8
First start
- Let the unit stand upright for 2 hours before plugging in. p. 6
Show 4 more answers Show less
Problems and fixes
Wine cooler does not operate
Check power connection, ensure unit is turned on, check circuit breaker.
p. 13
Wine cooler is not cold enough
Check temperature setting, door seal, and frequency of door opening.
p. 13Maintenance and reset
- Clean interior with baking soda solution (2 tbsp per quart of water). p. 12
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Temperature Range | 5-18°C / 41-64°F | Operating temperature range | p. 8 |
| Capacity | 46 bottles | Maximum bottle capacity | p. 9 |
Where to find it in the PDF
- Safety Warnings p. 4, 5
- Installation p. 6
- Operating Instructions p. 7, 8
- Maintenance p. 12, 13
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Thor Kitchen TWC24US is a single-zone wine cooler designed for storing wine at optimal temperatures. Key features include a 46-bottle capacity, adjustable temperature control (5-18°C / 41-64°F), and multiple operating modes (STD, ECO, DEMO, Sab). Before first use, ensure the unit stands upright for 2 hours to allow the cooling system to stabilize.
Safety Warnings
- Child Entrapment: Never allow children to play inside the appliance. Remove the door before discarding old units.
- Refrigerant: This unit uses R600a refrigerant. Do not damage the refrigerant circuit.
- Ventilation: Keep ventilation openings clear of obstructions.
- Usage: Not suitable for freezing foodstuffs. Do not use mechanical devices to accelerate defrosting.
Installation
- Placement: Can be used as a free-standing or built-in (fully recessed) unit. Place on a floor strong enough to support the unit when fully loaded.
- Environment: Locate away from direct sunlight and heat sources (stoves, radiators). Avoid moist areas.
- Leveling: Adjust the front leveling legs to ensure the unit is stable.
- Power: Plug into an exclusive, properly grounded wall outlet. Do not use extension cords.
Operating the Appliance
Control Panel Settings
- Child Lock: Press and hold the Lock button for 3 seconds to lock/unlock.
- Running Modes: Press the mode button to cycle through STD (Standard), ECO, and DEMO. Press and hold for 3 seconds to enter/exit Sab (Sabbath) mode.
- LED Lighting: Adjust light color (white1, blue, white2), mode (Default, 24hr, 30Min, 1Min), and brightness (50%, 75%, 100%).
- Temperature Control: Use the up/down arrows to adjust the temperature in 1-degree increments. Range: 5-18°C (41-64°F).
- Temperature Units: Press and hold both up and down arrows for 3 seconds to switch between °C and °F.
Wine Storage

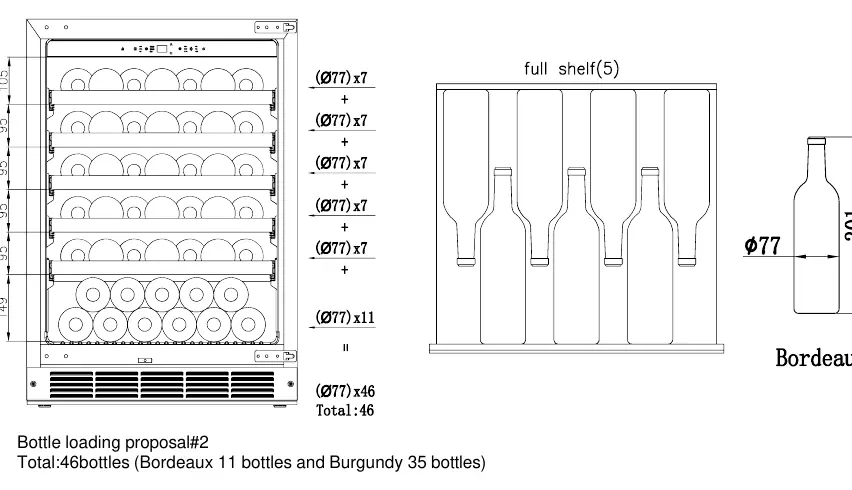

The unit has a capacity of approximately 46 bottles. The manual provides loading proposals for Bordeaux, Burgundy, and Champagne bottles to maximize space. Always store wine in sealed bottles.
Care and Maintenance
- Cleaning: Turn off and unplug the unit. Wash interior surfaces with a solution of 2 tablespoons of baking soda per quart of warm water. Wash shelves with mild detergent.
- Vacation: For short vacations (less than 3 weeks), leave the unit running. For long vacations, empty the unit, turn it off, clean it, and leave the door slightly ajar to prevent mold.
- Moving: Remove all items, tape down shelves, turn up leveling legs, and tape the door shut. Keep the unit upright during transport.
Troubleshooting
If the unit does not operate, check the power supply and circuit breaker. If it is not cold enough, check the temperature setting, ensure the door is closed properly, and verify the door gasket seal. Rattling or gurgling noises are often normal refrigerant flow sounds.
Practical help
Common problems
Wine cooler does not operate
Check if the unit is plugged in, turned on, or if the circuit breaker has tripped.
Wine cooler is not cold enough
Check temperature control settings, ensure the door is not opened too often, and verify the door gasket seals properly.
Unit makes noise
Ensure the unit is level. Gurgling or rattling sounds are normal refrigerant flow; popping/crackling may be wall expansion.
Door does not close properly
Ensure the unit is level, the gasket is clean, and shelves are positioned correctly.
Light does not work
Check if plugged in, circuit breaker, bulb status, or if the light button is set to OFF.
Before use
- Remove all exterior and interior packing.
- Let the unit stand upright for approximately 2 hours before connecting to power.
- Clean the interior surface with lukewarm water and a soft cloth.
- Ensure the floor is strong enough to support the unit when fully loaded.
- Plug into an exclusive, properly grounded wall outlet.
Show more Show less
Specs in practice
- Temperature Range
- 5°C to 18°C (41°F to 64°F)
- Ambient Temperature Limits
- SN: 10-32°C, N: 16-32°C, ST: 16-38°C, T: 16-43°C
Images and diagrams
- Control Panel: Allows adjustment of temperature, lighting, and operating modes.
- Wine Chart: Illustrates bottle loading proposals for different bottle types.
Model compatibility
- Designed for free-standing or built-in (fully recessed) installation.
- Not suitable for freezing foodstuffs.
