Kegco 24-Inch Outdoor Single Tap Kegerator HK38SSU-L-1 Specification Sheet
Technical specifications and feature overview for the Kegco HK38SSU-L-1 outdoor kegerator. Includes dimensions, keg capacity options, electrical requirements, and included kit components.
Table of contents
Manual images
Click an image to enlargeQuick Guide to Kegco HK38SSU-L-1
The Kegco HK38SSU-L-1 is a 24-inch wide, outdoor-rated, single-tap kegerator designed for both built-in and freestanding applications. This document serves as a specification sheet detailing the unit's capabilities, dimensions, and included components.
Key Features
- Outdoor Rated: Designed for outdoor use with a stainless steel exterior.
- Temperature Control: Features digital temperature control for precise cooling.
- Air Cooled Tower: Includes an air-cooled draft tower to prevent foam.
- Versatility: Can be converted to a standard refrigerator.
- Security: Equipped with a locking stainless steel door.
Included Premium Direct Draw Kit
The unit comes with a complete dispensing kit, including:
- 5 lb. aluminum CO2 tank
- Commercial grade double gauge CO2 regulator
- Brewery grade D system lever handle keg coupler
- 14.5” tall, 3” diameter polished stainless steel draft tower
- Necessary hoses and fittings
Keg Storage Capacities
The interior is designed to accommodate various keg configurations:
- Full Size / 1/2-Barrel: Holds 1
- Pony Size / 1/4-Barrel: Holds 1
- 1/4-Barrel Slim: Holds 2
- 1/6-Barrel: Holds 3
- 5 gal. Ball/Pin Lock Keg: Holds 3
- 5-Liter / Mini Keg: Holds 3
Technical Specifications
Dimensions
- Height: 34-1/8"
- Width: 24"
- Depth (without handle): 25"
- Depth (with handle): 26.5"
Electrical
- Requirements: 115V/60Hz
- Running Amps: 1.7 A
Cooling System
- Type: Compressor
- Defrost: Manual
- Ventilation: Front ventilation allows for built-in installation.
Warranty
- Labor: 1 Year
- Parts: 1 Year
- Compressor (Parts Only): 5 Years
Practical help
Before use
- Verify electrical supply matches 115V/60Hz requirements.
- Ensure installation location allows for front ventilation.
- Check that the desired keg size is compatible with the interior capacity (e.g., max 3x 1/6-barrel or 5-gal kegs).
- Confirm the door swing direction meets your installation needs (Note: Field reversible is No).
Specs in practice
- 34-1/8" Height
- Designed to fit under standard kitchen or bar counters.
- Front Ventilation
- Allows the unit to be built into cabinetry without needing extra clearance on the sides or back.
Show more Show less
Images and diagrams

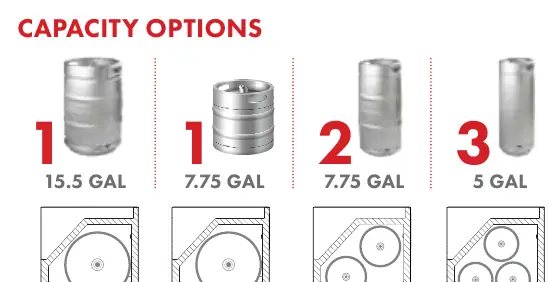

- Capacity diagrams illustrate how different keg sizes fit within the unit, ranging from a single 15.5-gallon keg to three 5-gallon kegs.
- Dimension diagrams provide precise measurements for the unit's height, width, and depth, including the handle protrusion.
Model compatibility
- Outdoor rated for exterior environments.
- Built-in capable due to front ventilation.
- Door is not field reversible.
