User Manual for Thule Chariot Cross 1 & 2
Comprehensive user guide for the Thule Chariot Cross 1 & 2 multisport trailer. Includes assembly instructions, safety warnings, maintenance tips, and technical specifications.
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
The Thule Chariot Cross 1 & 2 is a multisport trailer designed for active families. Before use, ensure you have read the safety manual and this instruction guide. Key safety points include:
- Always use the safety harness for children.
- Do not exceed the maximum weight limits (22 kg per child).
- Regularly inspect the trailer for damage, wear, or loose fasteners.
- Ensure the trailer is dry before storage to prevent mold.
- Always use the wrist strap when using the trailer as a stroller.
Product Overview
The trailer features an adjustable handlebar, sunshade, weather and mesh covers, adjustable suspension, and a parking brake. The rear features a cargo bag and reclining seats for comfort.
Assembly and Setup
The trailer arrives partially assembled. Follow the steps in the manual to attach the wheels, handlebar, and bike arm. Ensure all 'click' mechanisms are fully engaged and locked before use. Tire pressure should be maintained between 30-35 PSI (2.0-2.45 Bar).
Maintenance and Care
To keep your Thule Chariot in top condition:
- Cleaning: Clean regularly with warm water and a mild soap solution. Do not use harsh detergents or solvents.
- Lubrication: Clean wheel axles and apply grease or oil to all exposed moving parts.
- Inspection: Have the wheels inspected and serviced by an authorized provider at least once a year.
- Storage: Store in a dry area away from direct sunlight. Ensure the trailer is completely dry before storage.
Safety Warnings
The safety of the child may be affected if instructions are not followed. Do not use the trailer if any metal components are cracked or damaged. Ensure all fasteners are secure. Do not use the trailer on stairs or escalators. Always use the provided safety flag when cycling.
Contact Information
For feedback or questions, contact Thule consumer service via support.thule.com or reach out to your local dealer.
Official resources from the manual
Manufacturer information
Thule
Practical help
Common problems
Trailer does not fold correctly
Ensure the fold lock is disengaged and the handlebar is in the correct position.
Wheels do not attach
Check the wheel release button and ensure the axle is clean and free of debris.
Fabric damage
Inspect fabric regularly for tears or worn spots; do not use if damaged.
Before use
- Check metal components for dents or cracks.
- Ensure all fasteners are tight and not bent or broken.
- Check fabric for tears or worn spots.
- Verify tire pressure (30-35 PSI / 2.0-2.45 Bar).
- Ensure parking brake is functional.
- Check that the safety harness is properly adjusted.
Specs in practice
- Max child weight (1 child)
- 22 kg (49 lbs)
- Max child weight (2 children)
- 22 kg x 2 (49 lbs x 2)
- Max total load (Cross 1)
- 34 kg (75 lbs)
- Max total load (Cross 2)
- 43 kg (94.8 lbs)
Images and diagrams

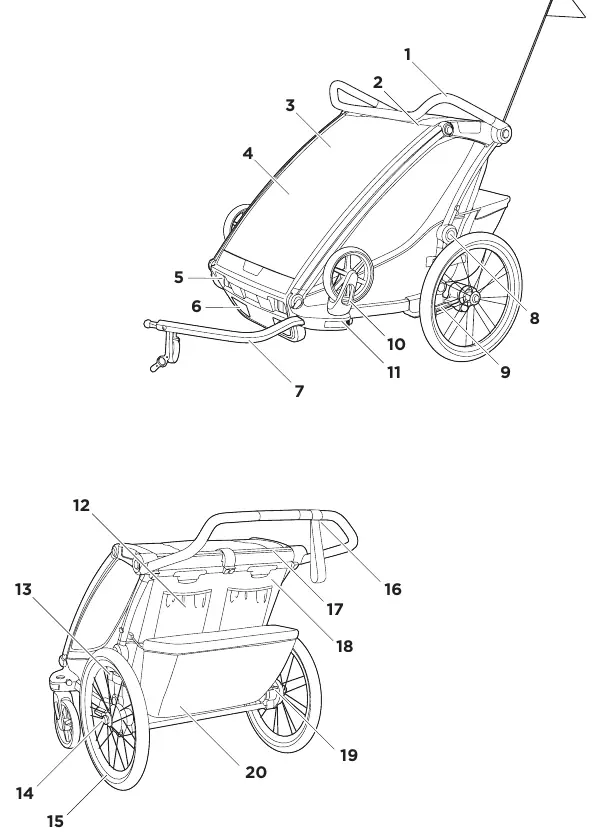

- Page 7: Features diagram showing handlebar, sunshade, bike arm, and parking brake.

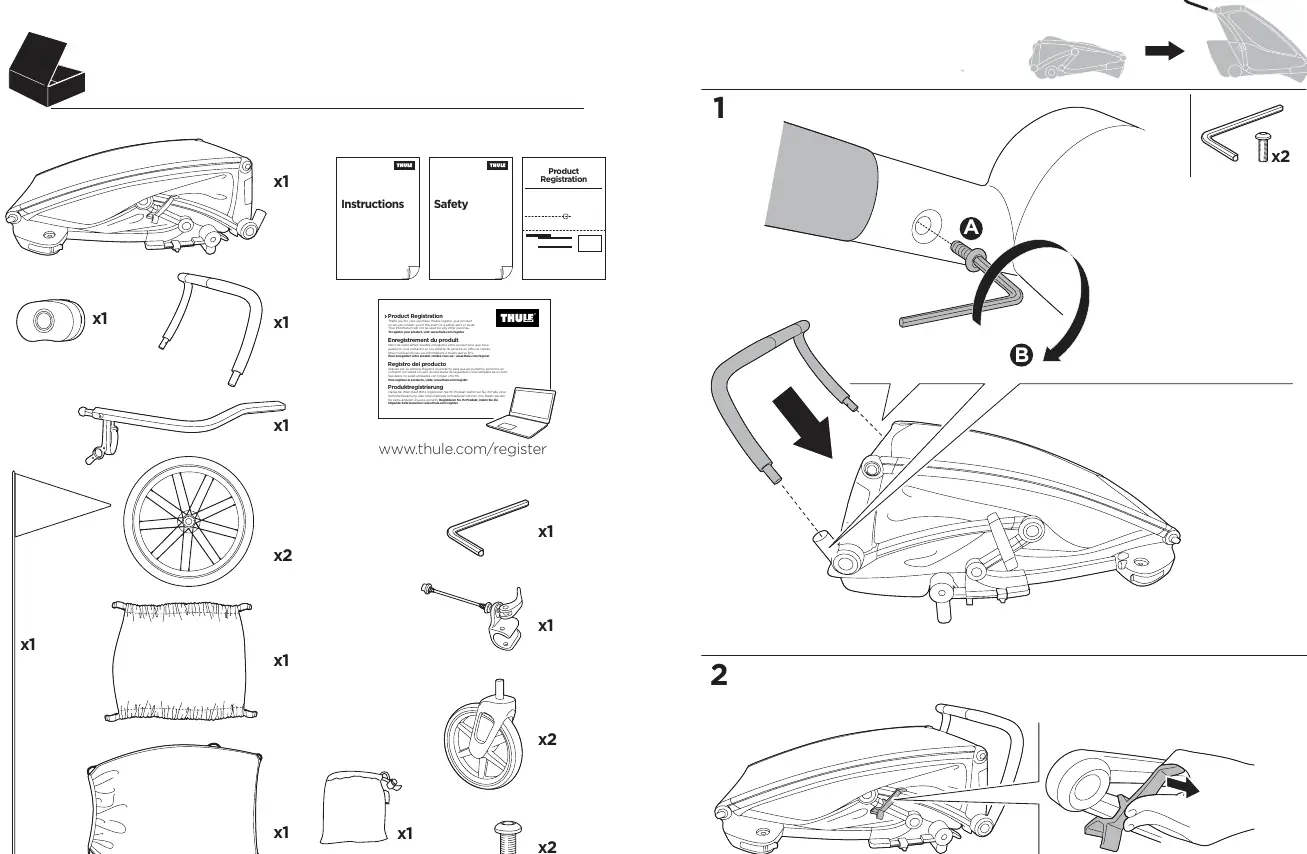

- Page 43: Parts list for assembly.

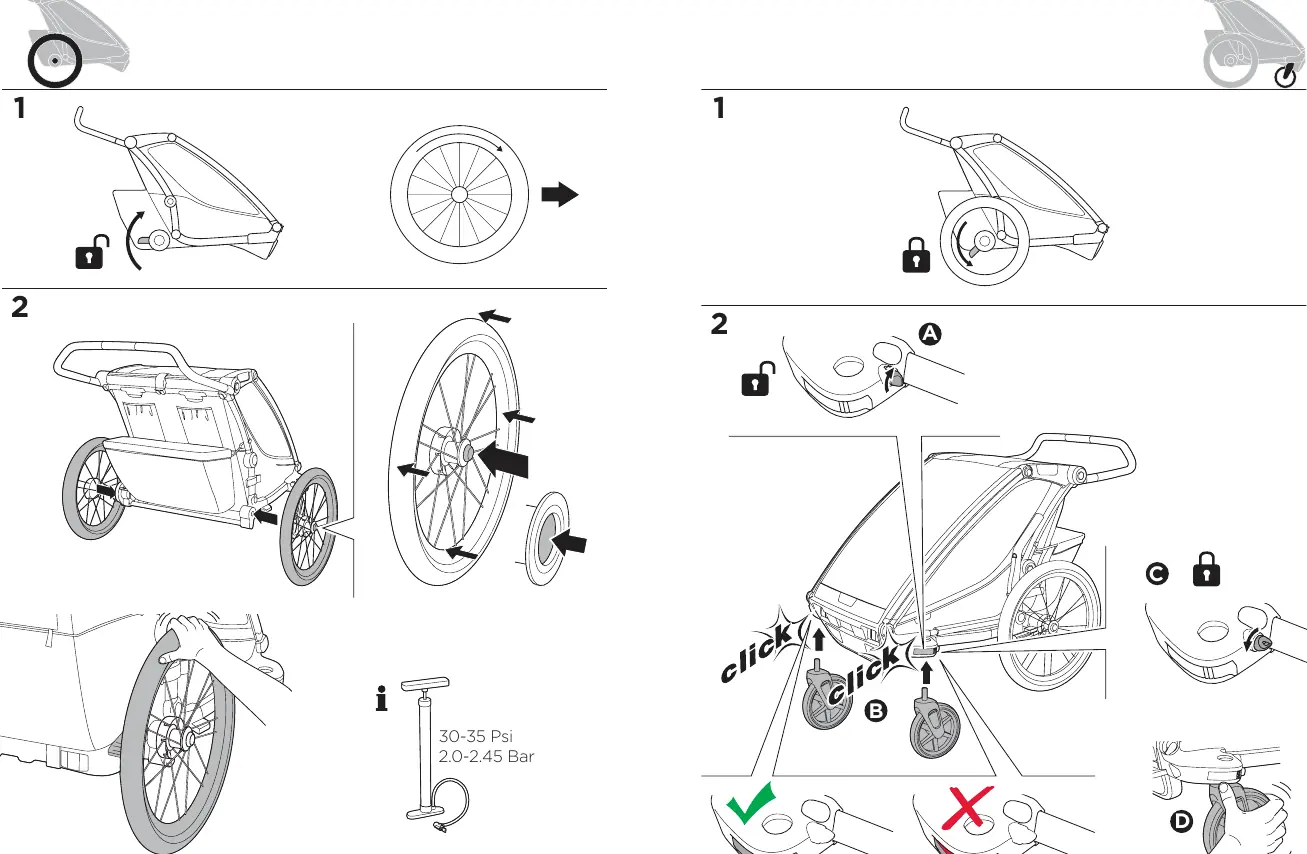

- Page 45: Wheel installation and tire pressure.

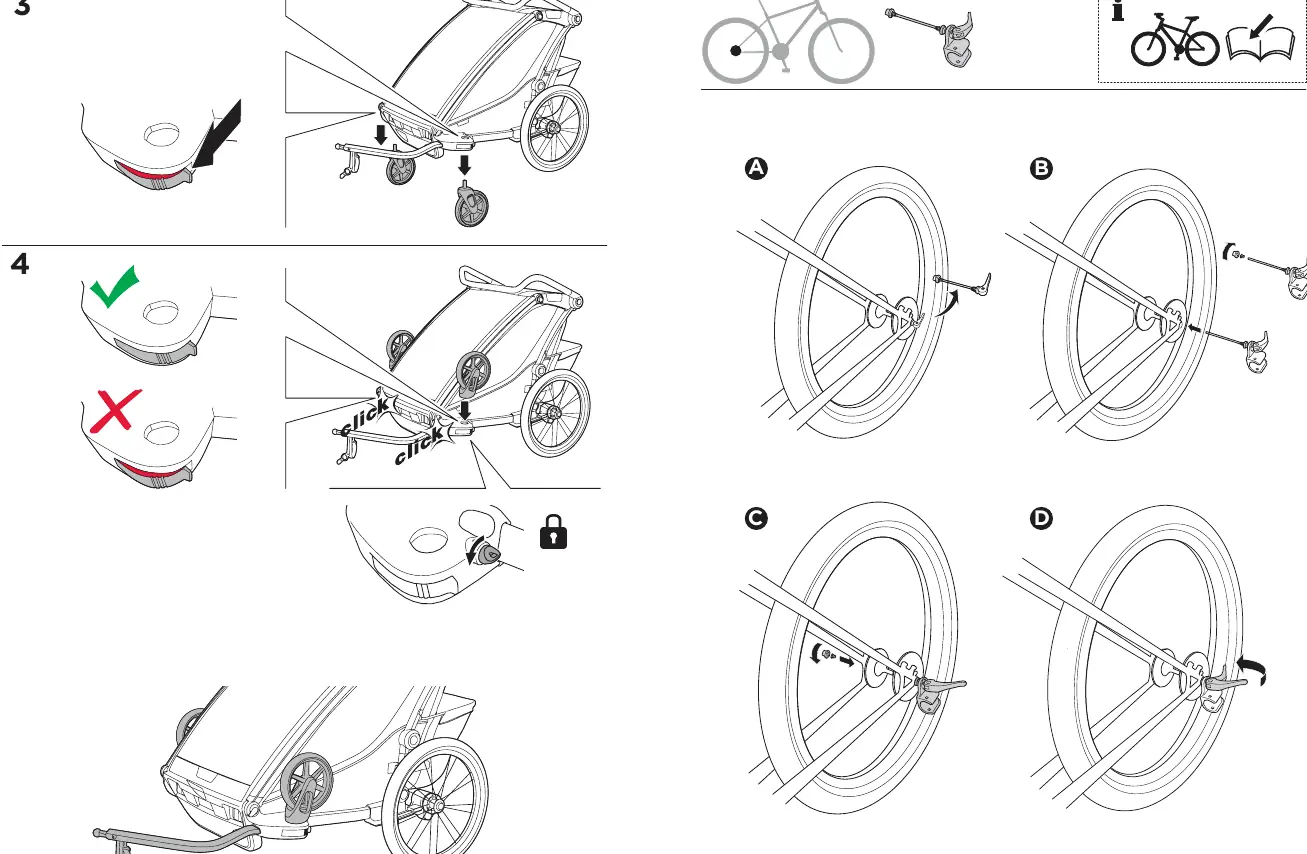

- Page 51: Bike arm attachment procedure.
- Page 55: Harness adjustment and safety check.
Model compatibility
- Compatible with various Thule accessories.
- Consult local dealer or thule.com for accessory compatibility.
