User Manual for Thule Chariot Lite 1 & 2 Bicycle Trailer
Quick guide for the Thule Chariot Lite 1 & 2 multisport trailer. Includes safety warnings, maintenance tips, feature overview, and assembly instructions.
Table of contents
Manual images
Click an image to enlargeQuick Guide
The Thule Chariot Lite 1 & 2 is a multisport trailer designed for active families. Safety is paramount: Always read the separate Safety manual for Thule Strollers and Bicycle Trailers before use. Ensure the child is properly secured and the trailer is correctly assembled before every trip.
Features
- Adjustable handlebar
- Sunshade
- Weather and mesh covers
- Reflectors
- Adjustable vents
- Bike arm
- Push button fold
- Adjustable suspension
- Stroller wheel storage
- Versawing
- Bike arm storage / Fold lock
- Wheel release button
- Reflective tires
- Wrist strap
- Accessory cross bar
- Mesh pocket
- Parking brake pedal
Maintenance
Regular maintenance is essential to keep your Thule trailer in good condition.
- Inspection: Regularly check metal components for dents or cracks. Do not use the trailer if any metal parts are damaged. Check fasteners for bending, breakage, or looseness; tighten or replace as needed. Inspect fabric for tears or wear.
- Cleaning: Clean regularly with warm water and a mild soapy solution. Never use harsh cleansers or solvents.
- Wheels: Clean wheel axles and apply grease or oil to exposed moving parts. Have wheels inspected and serviced at least once a year.
- Storage: Store in a dry area out of direct sunlight. Ensure the trailer is completely dry before storage to prevent mold or bacteria growth.
Assembly and Usage
The trailer requires assembly of wheels and the bike arm. Ensure all 'click' indicators are green before use. Always use the parking brake when loading or unloading children. When using as a bike trailer, ensure the bike arm is securely attached and the safety strap is connected.
Contact
For feedback or questions, please contact consumer service via support.thule.com or reach out to your local dealer.
Official resources from the manual
Manufacturer information
Thule
Practical help
Common problems
Metal components cracked or damaged
Do not use the child carrier.
Fasteners bent, broken, missing, or loose
Tighten loose fasteners, replace damaged/missing ones.
Fabric tears or worn spots
Inspect regularly and repair or replace the fabric.
Before use
- Read the Safety manual for Thule Strollers and Bicycle Trailers.
- Check metal components for dents or cracks.
- Ensure all fasteners are secure and not bent or broken.
- Inspect fabric for tears or wear.
- Ensure the trailer is clean and well-maintained.
- Verify all 'click' indicators are green.
Specs in practice
- Max load (1 child)
- 22 kg / 49 lbs
- Max load (2 children)
- 22 kg x 2 / 49 lbs x 2
- Max total weight (1 child)
- 34 kg / 75 lbs
- Max total weight (2 children)
- 42 kg / 92.6 lbs
Images and diagrams

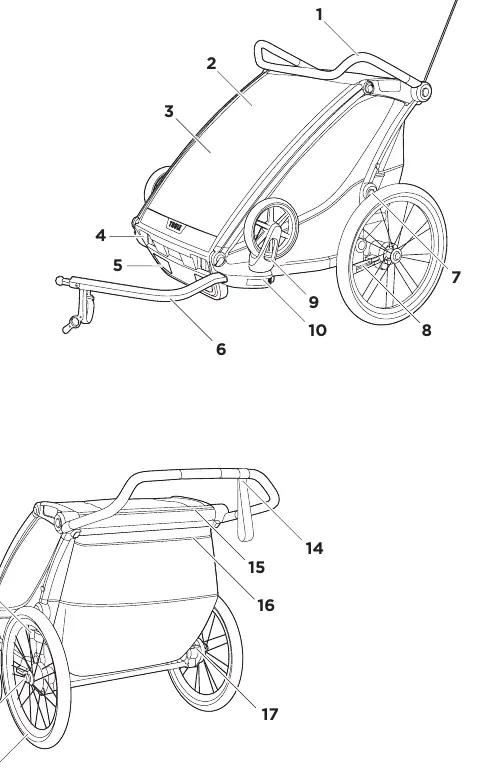

- Page 7: Features diagram showing handlebar, sunshade, bike arm, and other components.
- Page 43: Box contents and parts list.

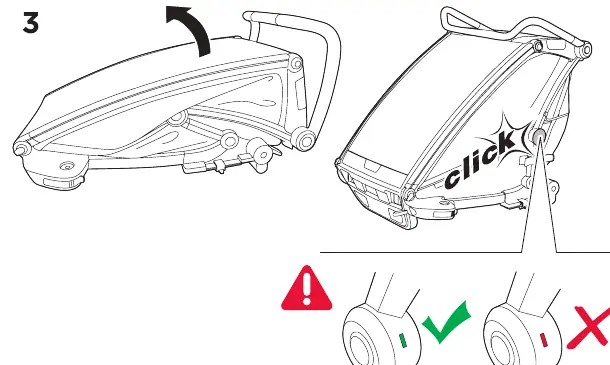

- Page 44: Folding and unfolding instructions.

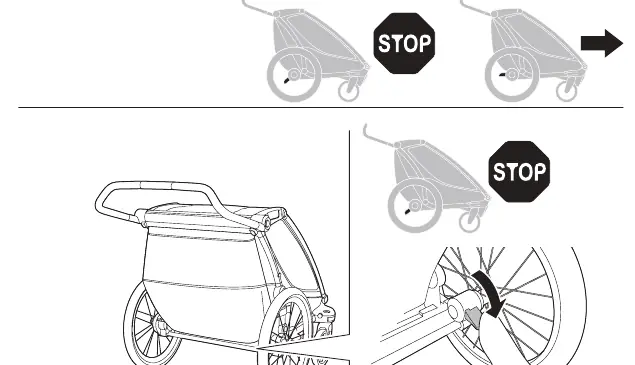

- Page 45: Wheel installation and tire pressure.
- Page 49: Bike arm attachment procedure.
Model compatibility
- Compatible with various Thule accessories.
- Check www.thule.com for compatible accessories.
