User Manual for Thule Coaster XT Stroller

Quick guide from the manual

The Thule Coaster XT is a multisport trailer designed for children. This manual provides essential instructions for assembly, safe operation, and maintenance. Always read the safety manual for Thule strollers and bicycle trailers before use. Key usage limits include a maximum total weight of 45 kg (100 lbs) and a maximum speed of 25 km/h (15 mph).

Product features

The Thule Coaster XT includes the following components:

• Handlebar and release mechanism
• Weather and mesh covers
• Shoulder harness adjustors and buckles
• Front and rear reflectors
• Stroller wheel and stroller/bike arm
• Rear wheels with release mechanism
• Back cover/sun shade
• Fold release knobs
• Cargo space
• Parking brake handle

Assembly and setup

Follow these steps to prepare your trailer for use:

1. Unfolding: Unfold the frame until it clicks into place.

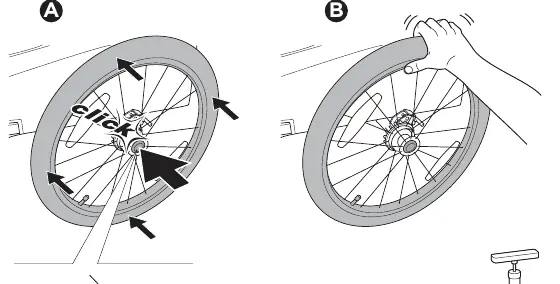

2. Wheels: Attach the rear wheels by inserting them into the frame until they click. Ensure the tire pressure is maintained between 30-35 Psi (2.0-2.45 Bar).
3. Stroller/Bike Arm: Attach the stroller or bike arm to the front of the frame. Secure it properly using the provided locking mechanism.
4. Harness: Adjust the shoulder harness to fit your child securely. Ensure the buckles are fastened correctly.

Safety and usage limits

Adhere to these safety guidelines to protect your child:

• Weight Limits: Total weight capacity is 45 kg (100 lbs). The cargo space has a maximum capacity of 4 kg (8.8 lbs).
• Speed Limit: Do not exceed 25 km/h (15 mph) when using as a bicycle trailer.
• Age Restriction: Do not use for children under 6 months.

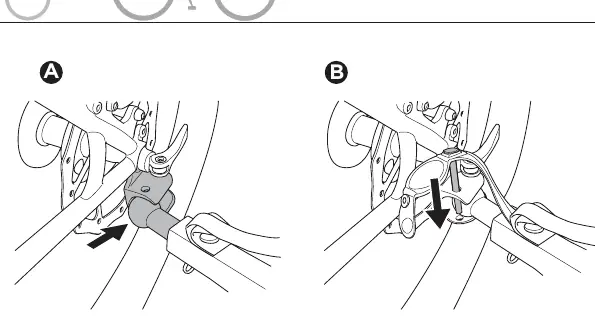

• Safety Checks: Always verify that the trailer is securely attached to the bicycle or configured correctly as a stroller before use.

Maintenance and care

Regular maintenance ensures the longevity and safety of your trailer:

• Cleaning: Clean regularly with warm water and a mild soap solution. Do not use harsh cleansers or solvents.
• Inspection: Regularly inspect metal components for dents or cracks. Check fasteners to ensure they are not bent, broken, missing, or loose.
• Moving Parts: Clean wheel axles and apply grease or oil to all exposed moving parts. Have wheels inspected and serviced at least once a year.
• Storage: Store in a dry area out of direct sunlight. Ensure the trailer is dry before storage to prevent mold or bacteria growth.

Contact information

For feedback or questions, please contact Thule consumer service via support.thule.com or reach out to your local dealer.
