Installation and User Guide for Thule Double Step 12V
Comprehensive installation and user guide for the Thule Double Step 12V. Includes detailed wiring diagrams, mounting instructions, operation procedures, maintenance tips, and emergency manual release steps.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Thule Double Step 12V is an electrically operated step for recreational vehicles. It requires a 12V DC power supply. Operation is controlled via a switch, requiring a 2-3 second press to fully extend or retract. The system is designed for 12V operation and requires a 20A fuse for the electrical circuit.
Operation

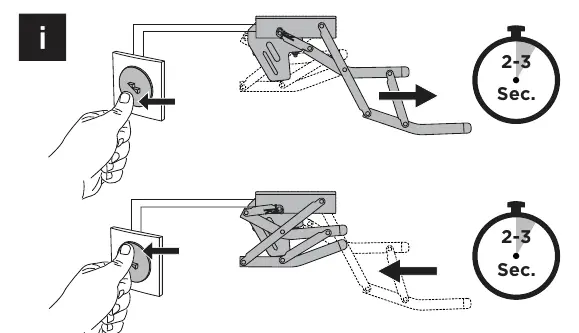

To operate the step, press and hold the switch for 2-3 seconds. The step will automatically extend or retract. Ensure the area around the step is clear of obstacles before operation.
Manual release

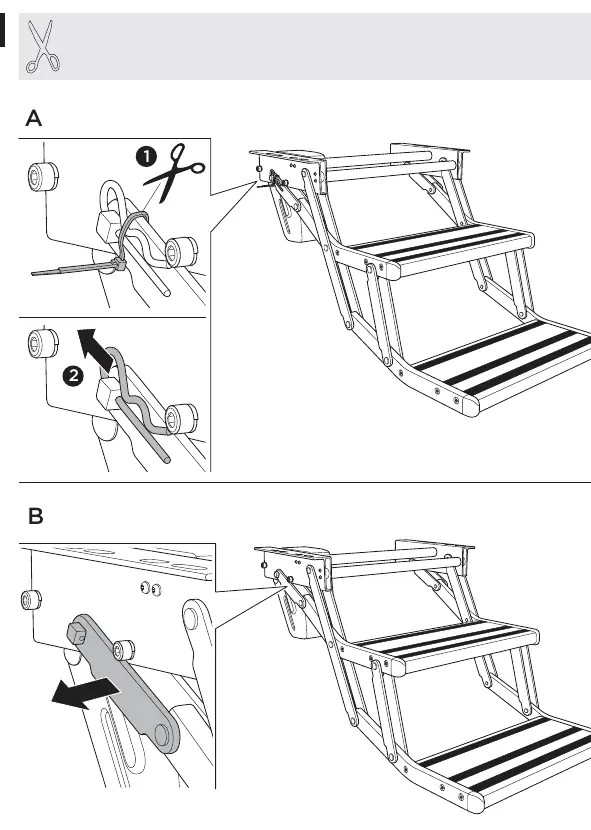

In case of electrical failure, the step can be operated manually:
- Cut the tie-wrap securing the release mechanism.
- Pull the release lever to disengage the motor.
- Manually move the step to the desired position.
Maintenance
Regular maintenance ensures smooth operation:
- Keep the step clean and free of debris.
- Do not use high-pressure cleaners or aggressive cleaning agents, as these can damage the mechanism.
- Periodically check all moving parts and lubricate if necessary.
Installation

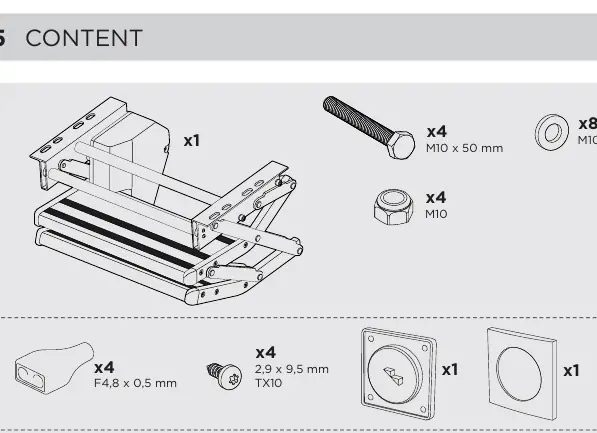

Installation requires basic tools including a 13mm wrench, 9mm drill bit, and a 48mm hole saw for the switch. Ensure the mounting surface is flat and capable of supporting the step's weight.
Electrical installation

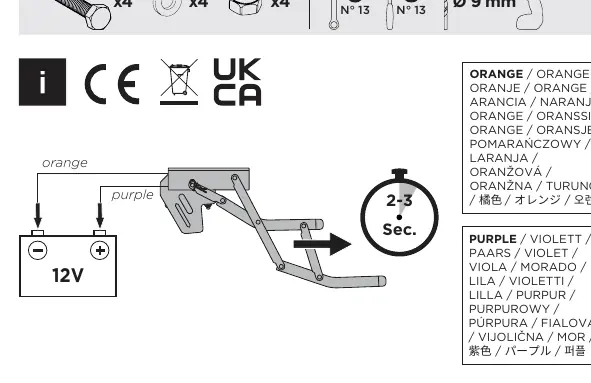

The step must be connected to a 12V DC power source. Use the provided wiring diagram to connect the motor (orange and purple wires) to the switch and the main battery. A 20A fuse must be installed in the circuit to protect the motor. Optional relays are available for automatic retraction features.
Manufacturer information
Thule
Practical help
Common problems
Step does not extend or retract
Check the 12V power supply, verify the 20A fuse is intact, and ensure the switch is functioning correctly.
Step is stuck
Use the manual release procedure to disengage the motor and move the step by hand.
Before use
- Ensure the step is clear of any obstacles.
- Verify the 12V battery is connected and charged.
- Check that the 20A fuse is installed.
- Confirm the switch is properly wired.
Images and diagrams
- Wiring diagram: Shows connections between the battery, switch, motor, and optional relay.

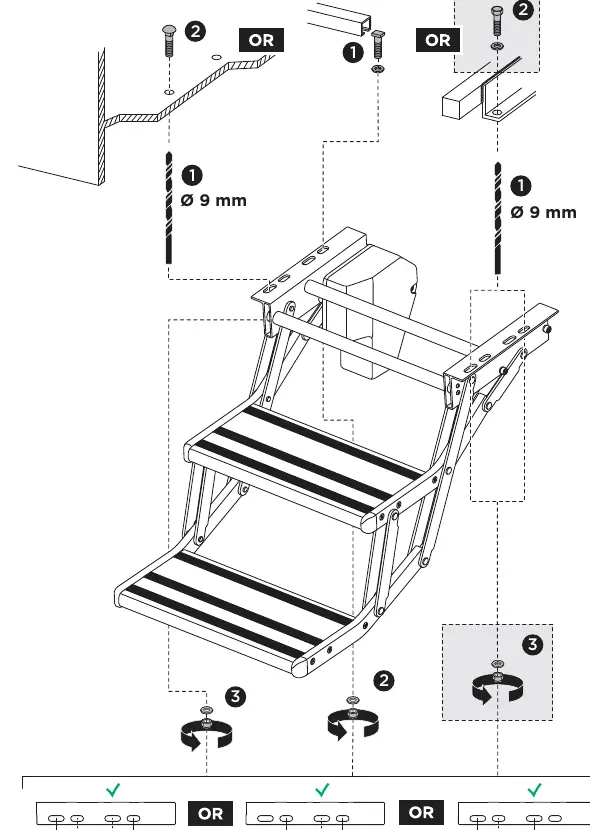

- Mounting diagram: Illustrates the drilling points and hardware required for installation.
Model compatibility
- Compatible with 12V DC vehicle electrical systems.
- Optional relay (308200) can be added for automatic retraction functionality.
