User Manual for Thule CROWN 5200 TH 12V Awning
Comprehensive installation and user guide for the Thule CROWN 5200 TH 12V awning. Includes detailed electrical wiring diagrams, mounting instructions, operation procedures, and manual override steps for emergency use.
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
The Thule CROWN 5200 TH 12V is an electric awning designed for RVs. Key operational requirements include a 12V DC power supply (minimum 11V) and the use of a momentary contact switch for operation. In the event of a power failure, the awning can be operated manually using the provided override tool.

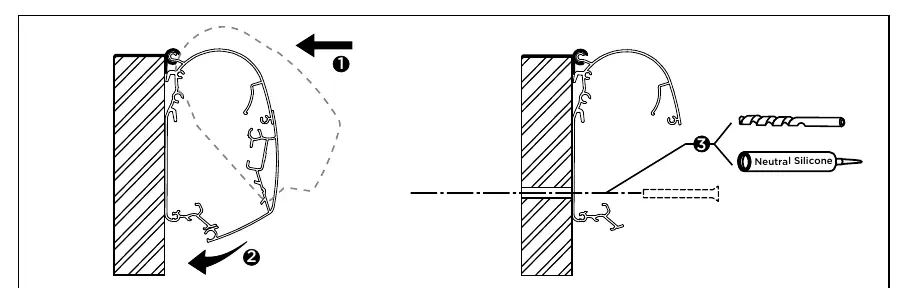

Installation
The installation process involves mounting the awning housing to the vehicle wall and securing the support brackets. Ensure all mounting points are sealed with neutral silicone to prevent water ingress. Follow the specific bracket alignment instructions provided in the manual to ensure the awning is level and operates smoothly.

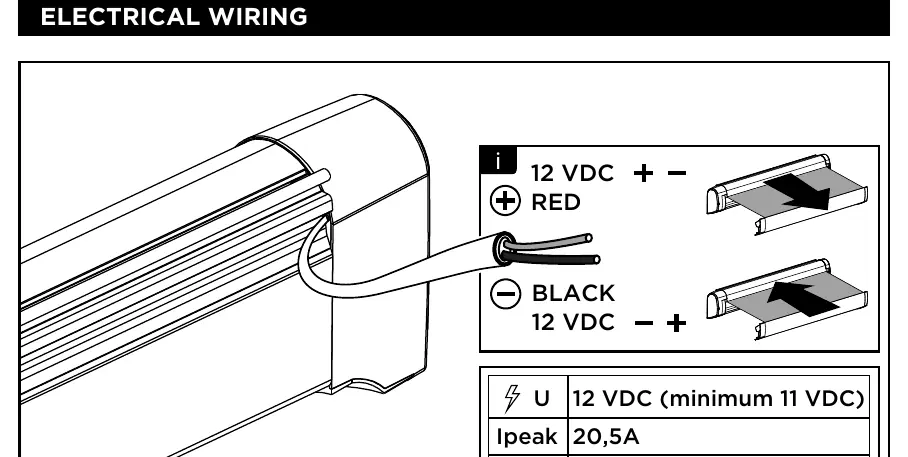

Electrical Wiring
The awning requires a 12V DC power connection. Observe correct polarity during installation:
- Red wire: Connect to positive (+) 12V DC.
- Black wire: Connect to negative (-) 12V DC.
Technical Specifications:
- Voltage: 12V DC (minimum 11V).
- Peak Current (Ipeak): 20.5A.
- Nominal Current (Inom): 6A in / 3A out.
Warning: Operation must only be performed using a switch with momentary contact.
Adjustment
The awning angle and leveling can be adjusted to ensure proper closure and tension. Use the adjustment screws located on the awning arms. Ensure the left (L) and right (R) sides are balanced (L=R) to prevent uneven operation or damage to the mechanism.
Operation
Opening and Closing: Use the momentary contact switch to extend or retract the awning. When opening, ensure the area is clear of obstructions. The awning should be stopped at the desired extension.
Tensioning: Once extended, ensure the fabric is properly tensioned. If the awning is not tensioned correctly, it may sag or flap in the wind.
Manual Override
If the electrical system fails, you can operate the awning manually:
- Remove the protective cap on the side of the awning housing using a screwdriver.
- Insert the manual override tool into the opening.
- Rotate the tool to manually extend or retract the awning.
Manufacturer information
Thule
Practical help
Common problems
Awning does not operate
Check the 12V power supply. Ensure voltage is at least 11V DC. Verify the momentary contact switch is functioning.
Awning is uneven or does not close properly
Check the leveling of the arms. Ensure the left and right sides are adjusted equally (L=R).
Before use
- Verify 12V DC power source is active.
- Ensure the switch used is a momentary contact switch.
- Check that the area around the awning is clear of obstacles.
- Verify that the awning is properly tensioned after opening.
Images and diagrams
- Wiring diagram shows Red wire to positive and Black wire to negative.
- Manual override diagram shows removing the side cap and inserting the tool to crank the awning.
Model compatibility
- Requires 12V DC power supply.
- Must be operated via a momentary contact switch.
