User Manual for TPI 198-TMC Radiant-Fan Forced Portable Heater
Quick guide for the TPI 198-TMC portable heater. Learn how to operate the heat settings, use the thermostat, reset the over-temperature safety switch, and maintain your unit safely.
Quick answers from the manual
Quick answer
- The TPI 198-TMC is a portable heater with three heat settings (600W, 900W, 1500W). It features a tip-over switch and an over-temperature safety cutoff. p. 2
Key actions
- Operating the heater p. 2
- Resetting the over-temperature control p. 2
First start
- Plug the heater power cord directly into a standard grounded 110-120 volt AC outlet. Always operate the heater in the upright position with the rubber feet on the floor. p. 2
Problems and fixes
Heater cycles off due to overheating
Allow the heater to cool, correct the cause of overheating (e.g., blocked air intake), and push the reset button.
p. 2Maintenance and reset
- Push the reset button located inside the small hole on the side of the heater using a pencil or similar object after the unit has cooled. p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| LOW | 600W | Heat setting with fan off | p. 2 |
| MED | 900W | Heat setting with fan on | p. 2 |
| HIGH | 1500W | Heat setting with fan on | p. 2 |
Where to find it in the PDF
- Safety Instructions p. 1
- Operating Instructions p. 2
- Warranty p. 3
Table of contents
Quick guide from the manual

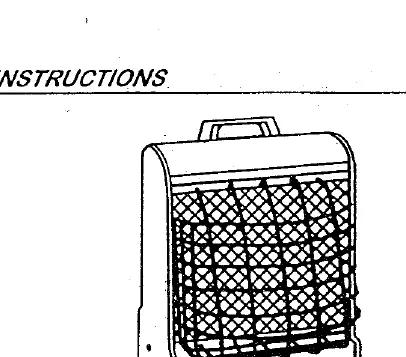

The TPI 198-TMC is a portable heater designed for floor use. It features three heat settings (600W, 900W, 1500W), a tip-over switch, and an over-temperature safety cutoff. Always operate the unit in an upright position on the floor and ensure it is plugged into a properly grounded 110-120V AC outlet.
Safety Precautions
- Keep combustibles such as electrical cords, furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater and at least 1 foot (0.3 m) from the sides and rear.
- Do not use the heater in wet or damp locations, or near bathtubs/water containers.
- Do not use an extension cord if possible. If necessary, use a 3-wire grounded type rated for at least 1875 watts.
- Do not block air intakes or exhaust.
- Always unplug the heater when not in use.
Operating Instructions
1. Powering On: Plug the heater directly into a standard grounded 110-120V AC outlet. Ensure the unit is upright with rubber feet on the floor.
2. Heat Selection: Rotate the heat selection knob to the desired setting: LOW (600W), MED (900W), or HIGH (1500W).
3. Thermostat Usage: Rotate the THERMOSTAT knob clockwise until it stops to begin heating. At the LOW setting, the fan will not operate. At MED and HIGH settings, the fan will blow warm air. Once the room reaches the desired temperature, slowly rotate the knob counter-clockwise until the heater cycles off. The unit will then cycle on and off automatically to maintain the temperature.
Cleaning & Maintenance
Before cleaning, turn the heater to the OFF position and unplug it. Use a dry cloth to wipe dust and dirt from inside the heater cabinet. A vacuum cleaner crevice tool may also be used. Do not use waxes as they may discolor the unit. When not in use for an extended period, store the heater in a safe place, such as a box.
Resetting Over-Temperature Control
If the heater overheats, the built-in safety switch will turn it off. To reset: 1. Allow the heater to cool down. 2. Ensure the condition that caused the overheating (e.g., blocked air intake) is corrected. 3. Use a small straight object, such as a pencil, to push the button located inside the small hole on the side of the heater marked RESET.
Practical help
Common problems
Heater cycles off repeatedly
Check for overheating. Ensure air intakes are not blocked and the unit is not on a soft surface. Correct the cause and use the reset button.
Heater does not heat
Ensure the unit is plugged into a grounded outlet, the heat selection knob is set to a wattage, and the thermostat is turned clockwise.
Before use
- Ensure the heater is on a flat, stable floor surface.
- Verify the power cord and plug are not damaged.
- Confirm the outlet is a grounded 110-120V AC outlet.
- Maintain a clearance of at least 3 feet from the front and 1 foot from the sides/rear of the heater.
- Ensure no foreign objects are in the ventilation or exhaust openings.
Images and diagrams
- The manual provides a diagram illustrating the correct connection of a grounded plug and adapter to a grounded outlet box, emphasizing the use of the metal screw for grounding.
Model compatibility
- For floor use only.
- Requires a grounded 110-120V AC outlet.
- Do not use in wet or damp locations.
