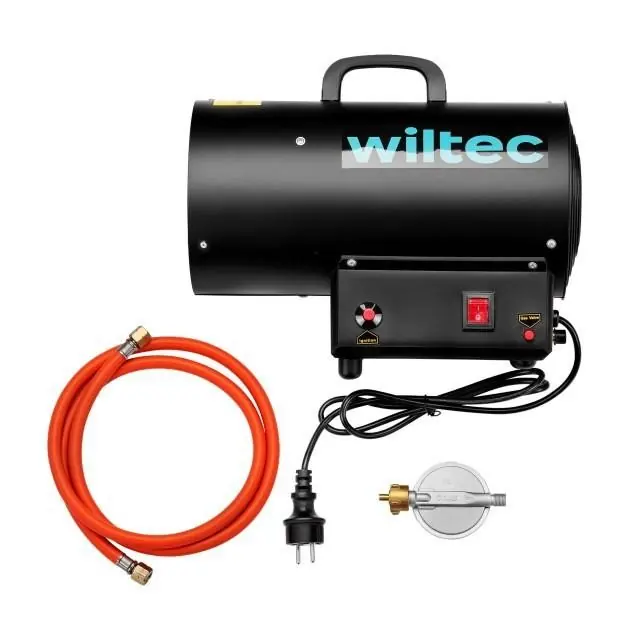

User Manual for WilTec 15kW Gas Heater 65023
Quick guide for the WilTec 15kW gas heater (model 65023). Includes safety instructions, installation steps, operation, maintenance, and troubleshooting.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential instructions for the safe operation and maintenance of the WilTec 15kW gas heater (model 65023). Always read the full safety warnings before use. This device is intended for use in well-ventilated areas and is not suitable for domestic use, caravans, or heating living spaces.
Safety Instructions
- Burn Hazard: Do not touch hot surfaces. Keep children and animals away.
- Ventilation: Continuous ventilation is required (25 cm³ per kW).
- Gas Leaks: If you smell gas, immediately close the gas supply, extinguish all flames, and ventilate the area. Do not use electrical switches or phones in the area.
- Placement: Do not use in basements or below-ground rooms. Keep the heater at least 3 meters away from flammable walls or ceilings.
- Gas Bottles: Secure gas bottles to prevent falling. Do not direct hot air toward the gas bottle.
Installation
Ensure the heater is connected to a grounded 230 V ~ 50 Hz power supply. Connect the gas hose to the pressure regulator and the LPG bottle. Tighten connections firmly. Always check for leaks using a soapy water solution; never use an open flame to detect leaks.
Operating Instructions
Ignition
- Set the power switch to "I" and verify the fan is running.
- Press the gas valve button and repeatedly press the piezo igniter until the flame lights.
- Hold the gas valve button for approximately 10 seconds after ignition. If the flame goes out, wait 1 minute and repeat.
- Adjust the heat output using the pressure regulator wheel.
Shutdown
Close the gas bottle valve first. Allow the fan to run until the flame extinguishes, then turn the power switch to "O".
Maintenance
- Repairs must be performed by specialists.
- Have the unit checked by a technician at least once a year.
- Periodically inspect the gas hose and pressure regulator.
- Clean the fan blades and the interior of the heater with compressed air if necessary.
- Check the position of the ignition electrode.
Troubleshooting
If the motor does not run, check the power supply and the safety thermostat. If the burner fails to ignite, check the gas supply, nozzle, and ignition electrode. If the heater stops during operation, check for ice formation on the gas bottle (use a larger bottle or two connected bottles) and ensure proper airflow.
Manufacturer information
WilTec Wildanger Technik GmbH
Practical help
Common problems
Motor does not run
Check power supply or wait 1 minute for the safety thermostat to reset.
Burner does not ignite
Check if the gas bottle is empty, the valve is open, the nozzle is clogged, or the ignition electrode is misaligned.
Heater stops during operation
Check for ice formation on the gas bottle (use a larger bottle or two bottles) and ensure sufficient airflow.
Before use
- Check for transport damage.
- Ensure proper ventilation (25 cm³ per kW).
- Connect gas hose and regulator securely.
- Test all gas connections for leaks using soapy water.
- Ensure the unit is properly grounded.
- Verify the fan is functioning before igniting.
Specs in practice
- Airflow Temperature
- 420 °C.
- Fuel Consumption
- 1.09 kg/h.
Images and diagrams

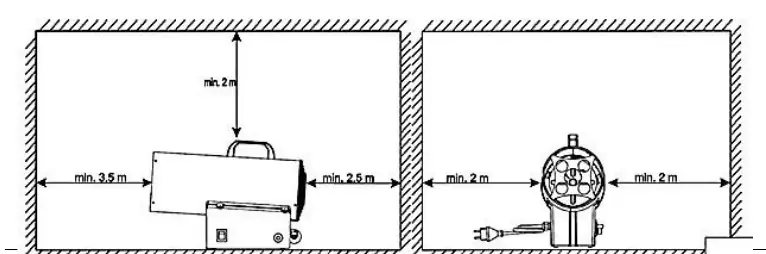

- Safety distances: Maintain at least 2m distance from walls and ceilings.
- Gas connection: Ensure the hose is not twisted or kinked.
- Circuit diagram: Illustrates the connections for the switch, valve, motor, ignition, and thermal probe.
Model compatibility
- Only for use with Liquefied Petroleum Gas (LPG).
- Not suitable for domestic use or in caravans.
- Not for heating living spaces.
