Operation Manual for VanGuard 1400i Series Microscopes

Quick guide from the manual

This manual provides operation and maintenance instructions for the VanGuard 1400i Series compound microscopes. Key procedures include initial assembly, condenser alignment, and routine maintenance such as lamp and fuse replacement. Ensure the microscope is unplugged before performing any maintenance.

Product Overview

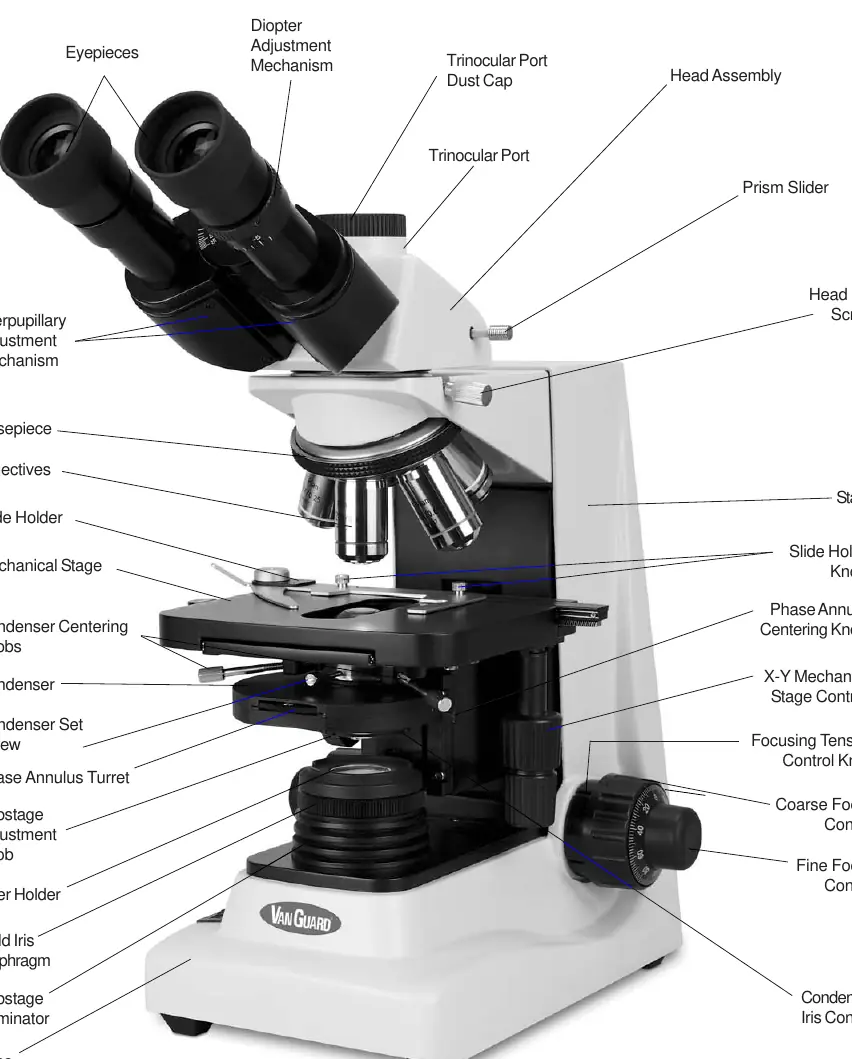

The 1400i Series includes binocular and trinocular models designed for brightfield or phase contrast microscopy. Key features include a 360-degree rotating Seidentopf head, quintuple reversed nosepiece, and coaxial coarse/fine focus controls with a 40mm range.

Assembly

Follow these steps to assemble your microscope:

• Place the stand on a stable surface.
• Attach the head assembly to the stand and secure it with the head set screw.
• If using a trinocular model, screw the camera port onto the head assembly.
• Remove protective caps from eyetubes and insert the eyepieces.
• Install objectives into the nosepiece by twisting them clockwise.

Setup and Alignment

Aligning the Condenser

Proper condenser alignment is essential for optimal illumination:

• Rotate the nosepiece to the 10X objective.
• Raise the substage assembly fully.
• Focus on a specimen.
• Open the aperture iris diaphragm fully.
• Close the field iris diaphragm to the smallest setting.
• Use the condenser centering knobs to center the white hexagon of light within the black field.

Aligning Phase Contrast Annulus Rings (PHi Models)

For phase contrast models, use the phase contrast centering telescope to align the rings until they are superimposed on one another. Use the condenser centering knobs to adjust.

Operation

Focusing and Stage

Use the coaxial coarse/fine focus controls for adjustment. The up-stop mechanism can be set to prevent the stage from rising too high and hitting the objective. The mechanical stage X-Y controls allow for precise sample positioning.

Oil Immersion

When using the 100X objective, apply immersion oil. Clean the objective immediately after use with a cotton swab and lens cleaner to prevent damage to the sealant.

Maintenance

Replacing the Lamp

Unplug the microscope and allow the lamp to cool. Lay the microscope on its back, open the trap door on the bottom of the base, and pull the release knob. Remove the old lamp and insert the new one, ensuring pins slide into the slots. Do not touch the glass with bare fingers.

Replacing the Fuse

Unplug the microscope. Remove the five screws on the back panel to access the circuit board. Pull the blown fuse from its holder and snap in a new one. Replace the cover and screws.

Specifications

• Viewing Head: Binocular or Trinocular, 30-degree inclination.
• Illumination: 20W/6V Variable Quartz Halogen.
• Fuses: 0.25A, 250V.
• Stage: 160mm x 140mm, right-hand coaxial control.
