Assembly Manual for Veikous 10x13ft Aluminum Gazebo
A comprehensive assembly guide for the Veikous 10x13ft Aluminum Gazebo. This manual provides step-by-step instructions for frame and roof assembly, curtain installation, and essential anchoring procedures for safety.
Table of contents
Manual images
Click an image to enlargeImportant Information
This manual provides instructions for the assembly of the Veikous 10x13ft Aluminum Gazebo. Please read the entire manual before beginning. Ensure all parts are present and identified before starting. The structure is not intended for commercial use (e.g., daycare, schools, or public parks). At least three people are required for safe assembly.

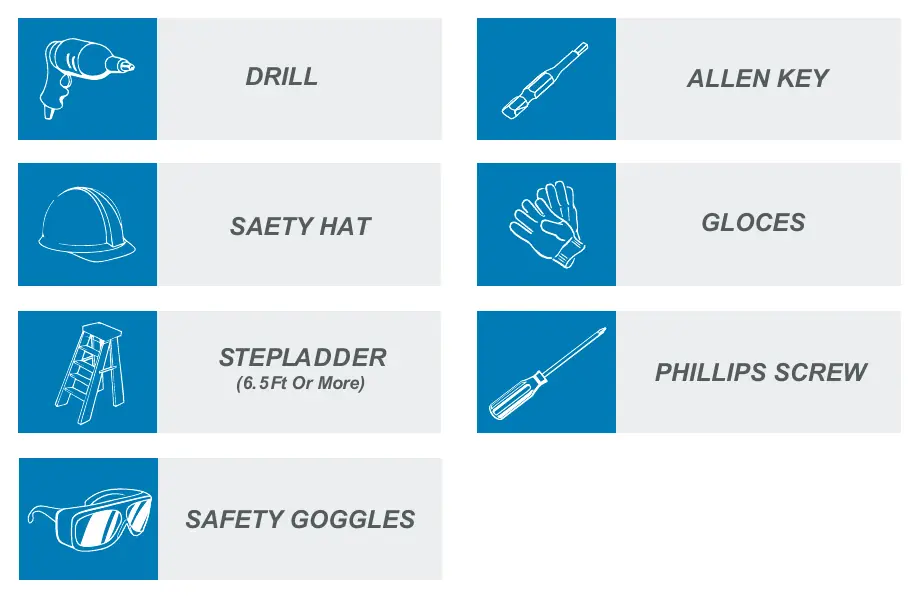

Tools Required
The following tools are required for assembly but are not included in the package:
- Drill
- Allen Key
- Stepladder (6.5ft or more)
- Phillips Screwdriver
- Safety Gear: Safety Hat, Gloves, Safety Goggles
Safety Precautions
- Do not fully tighten screws until the assembly is complete to ensure proper alignment.
- Ensure all screw holes are properly aligned before installation.
- Always keep safety in mind during construction.
- If you are missing parts or have damaged components, contact customer service before returning the product to the store.
Assembly Instructions
The assembly process is divided into 30 steps. Key phases include:

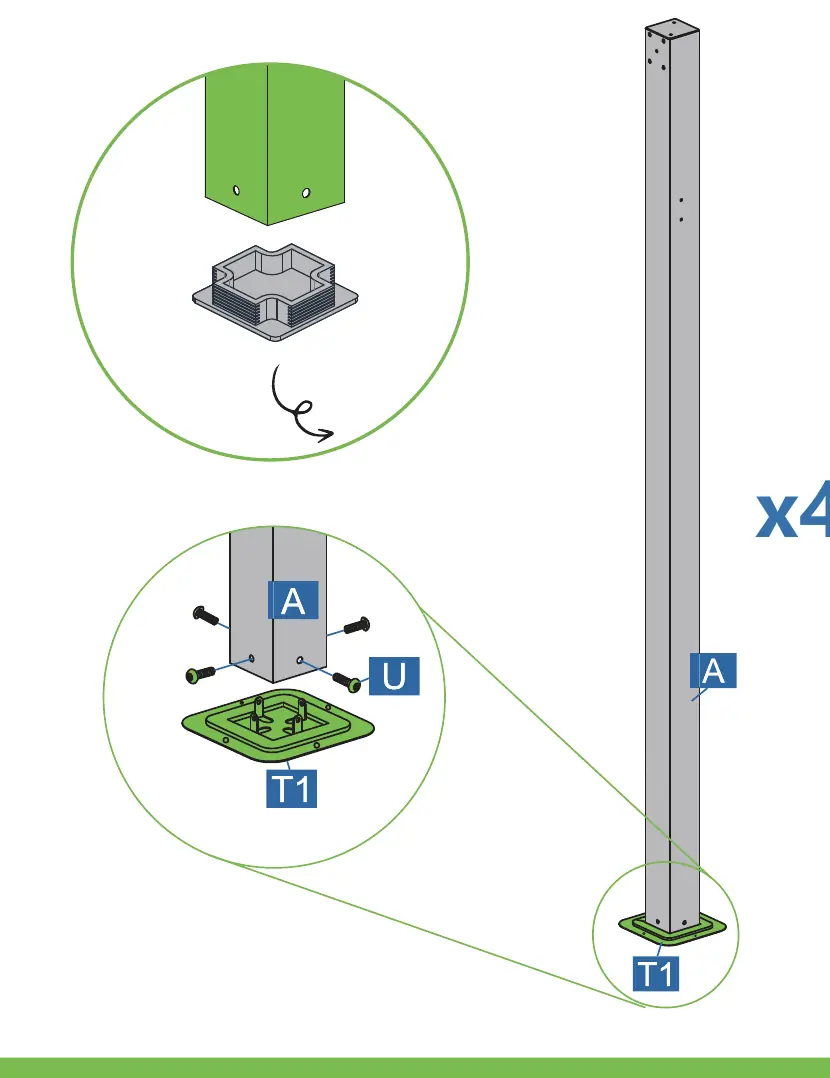

- Frame Assembly: Connecting posts (A) with base plates (T1) and assembling the main support beams (B, B1, C, C1).
- Roof Structure: Installing the roof support beams and brackets.
- Roof Panels: Attaching the roof panels (N, N1, N2, N3, N4) and securing them with the provided hardware.
- Curtain Installation: Attaching the curtain hooks (Z) to the outer track and hanging the curtains.
Anchoring

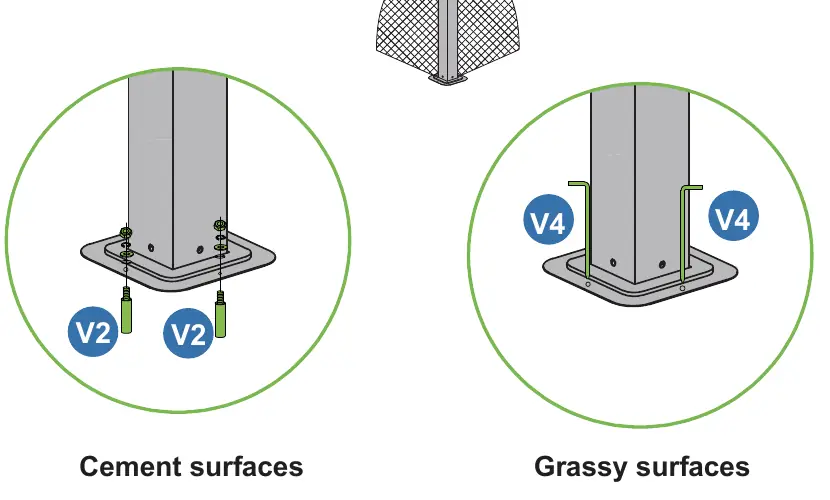

To improve wind resistance, it is essential to anchor the gazebo. Failure to do so may result in the structure toppling during strong winds. Use the provided expansion screws for cement surfaces or ground nails for grassy surfaces.
Customer Support

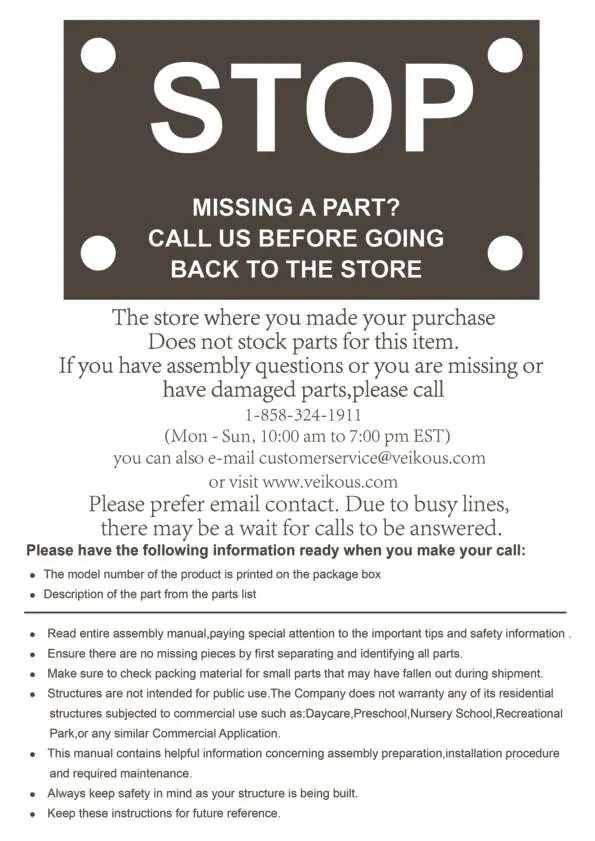

If you have assembly questions, missing parts, or damaged components, please contact Veikous customer service. Have your order number, model number, and the description of the part from the parts list ready. You can reach them at 1-858-324-1911 (Mon-Sun, 10:00 am to 7:00 pm EST) or via email at [email protected].
Practical help
Common problems
Missing or damaged parts
Contact customer service at 1-858-324-1911 or email [email protected] with your order number and part description.
Difficulty aligning parts during assembly
Do not fully tighten screws until the entire assembly is complete to allow for adjustments.
Gazebo instability in wind
Ensure the gazebo is properly anchored to the ground using the included expansion screws (for cement) or ground nails (for grass).
Before use
- Verify all parts against the parts list.
- Ensure at least 3 people are available for assembly.
- Prepare a stepladder (6.5ft or taller).
- Wear appropriate safety gear (gloves, goggles, safety hat).
- Have a drill and Allen key ready.
Images and diagrams
- Steps 1-10: Frame and post assembly.
- Steps 11-28: Roof structure and panel installation.
- Step 29: Curtain installation.
- Step 30: Anchoring the gazebo to the ground.
Model compatibility
- Not intended for commercial use.
- Must be anchored to either cement or grass surfaces.
