User Manual for Vevor 1100LBS Motorcycle Lift
Quick guide for the Vevor 1100LBS Motorcycle Lift (Model 110203). Includes operation, safety warnings, maintenance, and parts diagram.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual

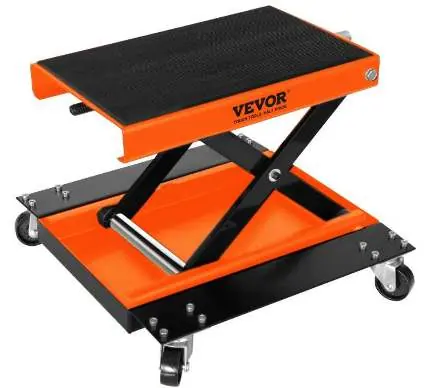

The Vevor 1100LBS Motorcycle Lift is a manual scissor-style lift designed for motorcycle maintenance and tire changes. Important: Always use the lift on a solid, level, and dry surface. Do not exceed the maximum weight capacity of 1100 lbs (approx. 500 kg). Never use an impact gun to operate the lifting mechanism.
Product Overview and Use
This lift utilizes a screw-driven design for height adjustment. It is intended as a secondary lifting tool to assist with maintenance tasks. The platform height is adjusted manually by rotating the lifting screw.
Operation
- Use a ratchet wrench to rotate the lifting screw and adjust the platform to the desired height.
- Position the lift under the motorcycle. Ensure the center of the load is aligned with the pivot point to maintain stability.
- Secure the motorcycle to the lift using additional tools or straps to ensure it remains stable during work.
- To lower the platform, rotate the ratchet wrench slowly and gently until the platform is fully lowered and the lift can be removed.
Safety and Maintenance
- Safety Gear: Always wear ANSI-approved safety goggles when operating the lift.
- Environment: Keep the work area clean, tidy, and well-lit. Keep children and unauthorized persons away.
- Lubrication: Before use, lubricate the lifting screw and nuts with grease to ensure smooth operation and reduce friction.
- Stability: Never use on uneven or sloped surfaces. Ensure the load is balanced at all times.
- Prohibitions: Do not use an impact gun. Do not overload the lift beyond 1100 lbs.
Specifications
- Model: 110203
- Rated Capacity: 1100 LBS
- Minimum Height: 125 mm
- Maximum Height: 390 mm

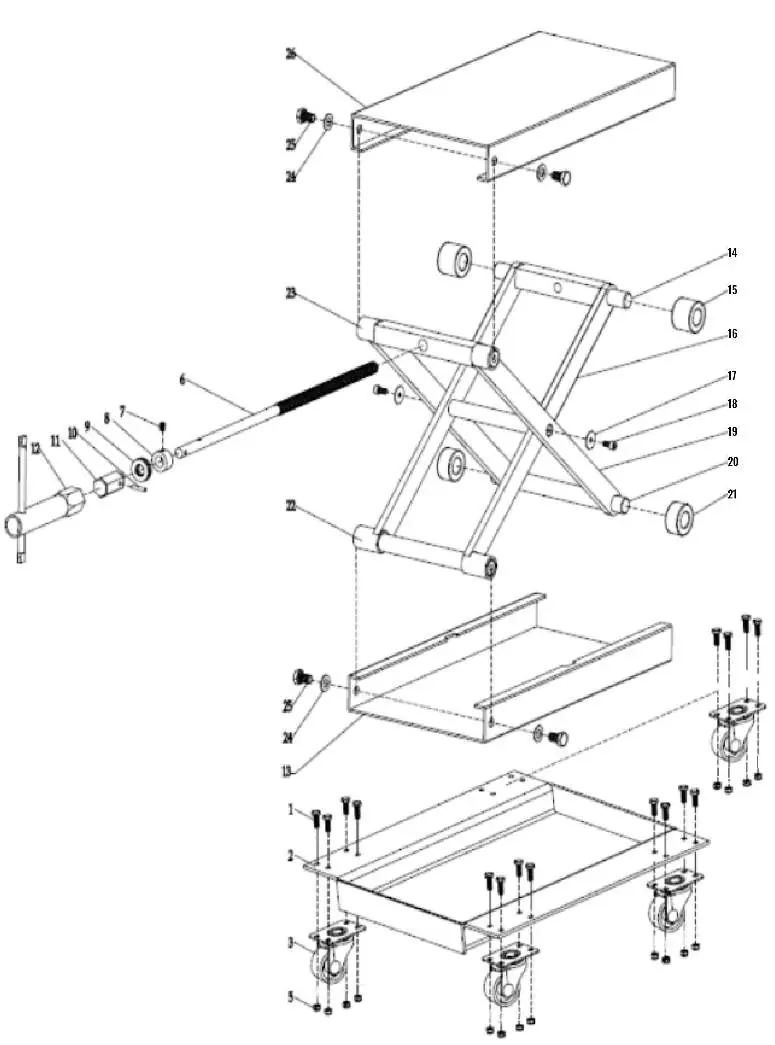

Parts Diagram
The lift consists of a base frame, scissor lifting arms, a platform, and a screw-driven mechanism. Ensure all screws (Part 1) and lock nuts (Part 5) are securely tightened during assembly. The swivel casters (Part 3) allow for positioning the lift under the motorcycle.
Manufacturer information
VEVOR
Practical help
Common problems
Lift is stiff or difficult to turn
Lubricate the lifting screw and nuts with grease before use to ensure smooth operation.
Load feels unstable
Ensure the center of the load is perfectly aligned with the pivot point and use additional straps to secure the motorcycle to the platform.
Before use
- Verify the surface is solid, level, and dry.
- Ensure the motorcycle is stable and secured to the lift.
- Lubricate the lifting screw and nuts.
- Wear ANSI-approved safety goggles.
- Check that the area is free of unrelated materials.
Specs in practice
- Rated Capacity
- 1100 LBS (Do not exceed this weight).
- Minimum Height
- 125 mm (Lowest position).
- Maximum Height
- 390 mm (Highest position).
Images and diagrams
- The diagram illustrates the scissor mechanism and the screw-driven lifting assembly.
- Ensure all fasteners, including screws (1) and lock nuts (5), are properly installed.
Model compatibility
- Use only on a big, stable, level, dry, and non-slippery surface.
