User Manual for Vevor 1100LBS Motorcycle Lift 110201

Important Information from the Manual

This manual provides instructions for the Vevor 1100LBS Motorcycle Lift (Model 110201). This device is designed as a secondary lifting tool for motorcycle maintenance and tire changing. Users must strictly adhere to the 1100 lbs weight capacity and ensure the lift is used on a solid, level, and dry surface.

Operation

Follow these steps to operate the lift safely:

1. Height Adjustment: Rotate the screw using a ratchet wrench to adjust the platform to the desired height.
2. Positioning: Place the lift under the motorcycle, ensuring the center of the load aligns with the pivot point. Keep the load stable.
3. Lifting: Raise the motorcycle to the required height and insert the safety pin to lock it in place.
4. Securing: Use additional tools to tighten and secure the motorcycle to maintain stability.
5. Lowering: After maintenance, remove the safety pin, rotate the ratchet wrench slowly to lower the platform until it clears the pivot, and remove the lift.

Warning and Maintenance

• Weight Limit: Never exceed the maximum weight capacity of 1100 lbs.
• Surface Requirements: Use only on a big, stable, level, dry, and non-slippery surface.
• Lubrication: Before use, lubricate the screw and nuts with grease to ensure smooth operation and reduce friction.
• Safety: Always wear ANSI-approved safety goggles. Keep children and unauthorized persons away from the work area. Keep hands and feet away from the working area during operation.
• Inspection: Regularly check the lift for stability and ensure the surface is clean and free from unrelated materials.

Specifications

• Model: 110201
• Rated Capacity: 1100 LBS
• Minimum Height: 95 mm
• Maximum Height: 350 mm
• Gross Weight: 13.7 kg

Parts List

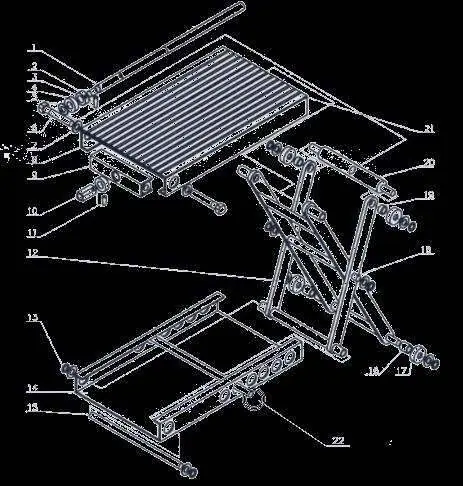

The lift consists of various components including the screw, platform, base, shafts, bearings, and safety pin. Refer to the disassemble drawing for the specific arrangement of these parts.
