User Manual for VirtuFit Stroker 100i Rowing Machine

Quick guide from the manual

The VirtuFit Stroker 100i is a rowing machine designed for domestic use. Before starting, ensure the machine is placed on a solid, level surface and that you have 1-2 meters of space behind the unit. The maximum user weight is 120 kg. Always consult a doctor before beginning an exercise program.

Assembly

The assembly process consists of 6 steps:

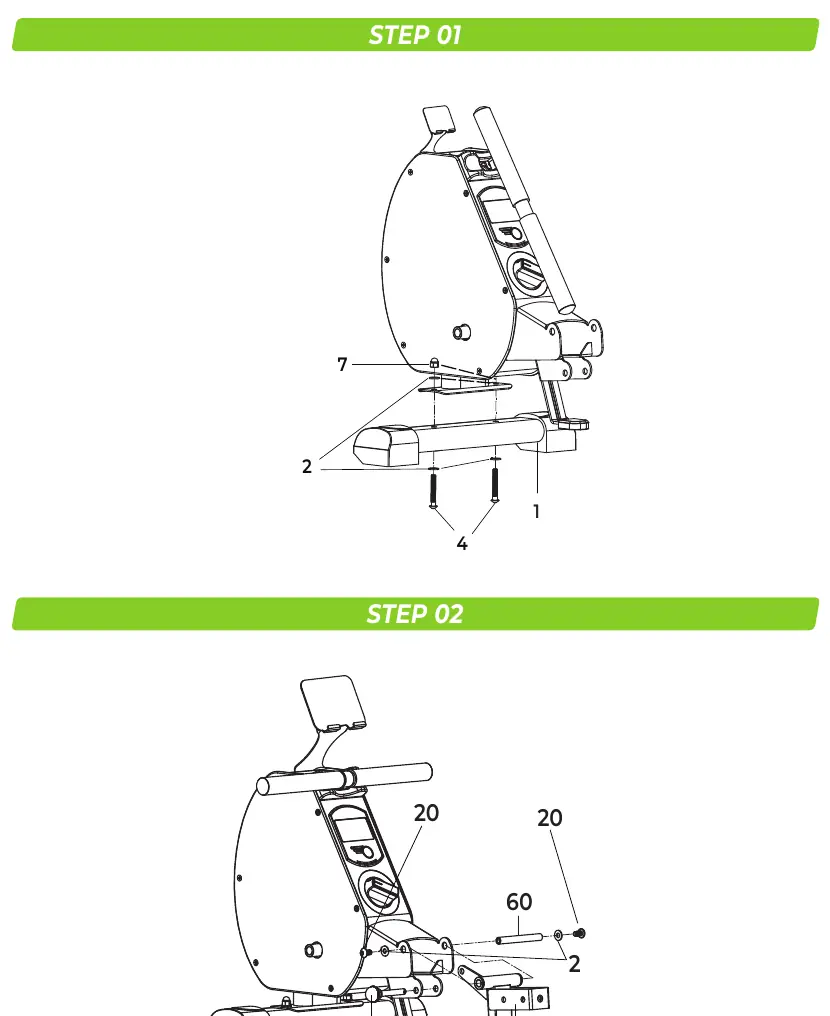

• Step 01-02: Attach the front stabilizer and main frame components using the provided bolts, washers, and nuts.

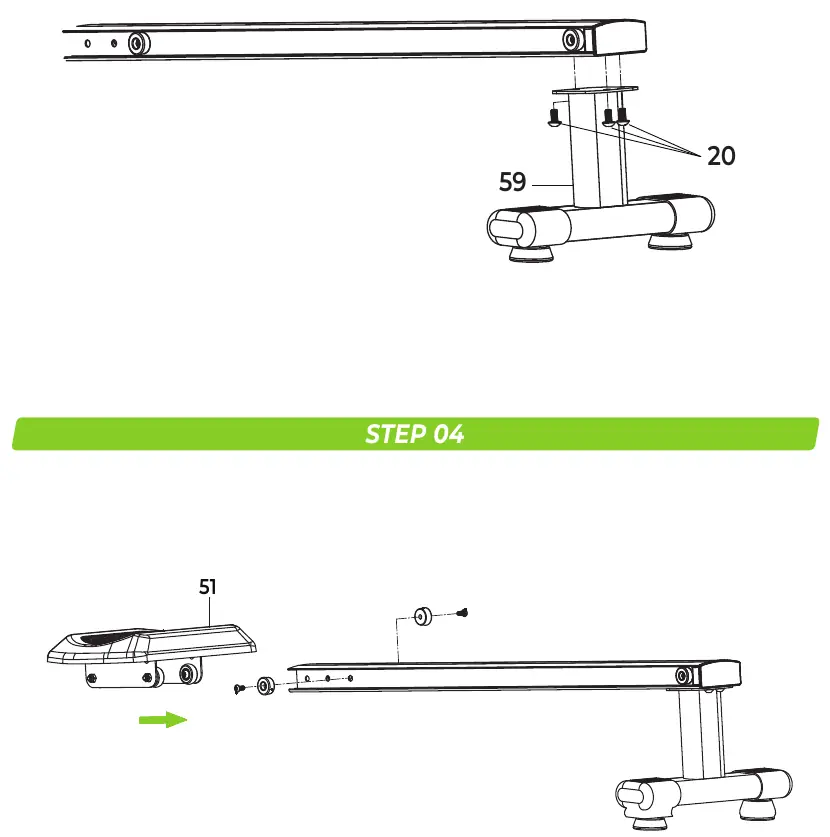

• Step 03-04: Install the rear stabilizer and slide rail.

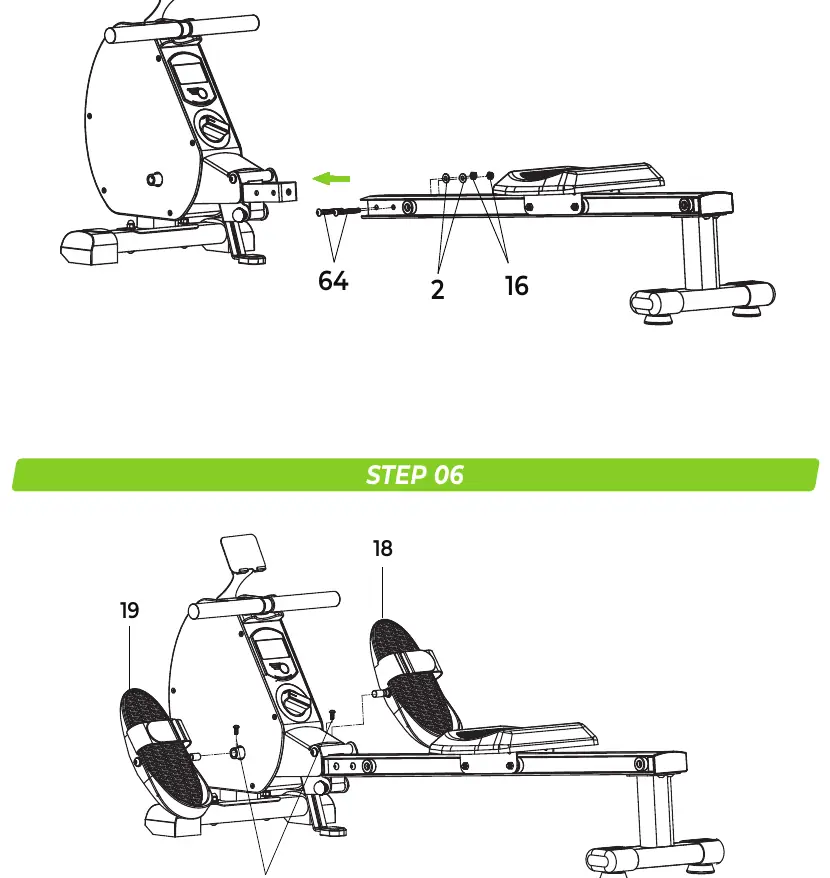

• Step 05-06: Connect the rail to the main frame and attach the seat and pedals.

Ensure all bolts and nuts are tightened securely. If parts are missing, check the packaging foam carefully as some hardware may be pre-attached.

Console Operation

The console tracks your workout data. Press the MODE button to select functions. The SCAN mode cycles through the following:

• TIME: Rowing duration.
• COUNT: Number of strokes.
• TOTAL COUNT: Total strokes from start to finish.
• CALORIES: Estimated calories burned.
• COUNT/MIN: Current strokes per minute.

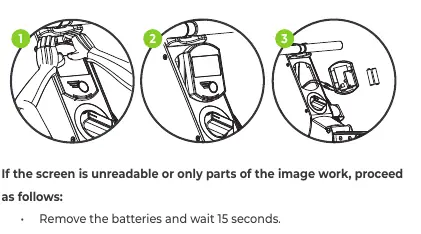

The console uses 2 x 1.5V AA batteries. If the screen is unreadable, remove the batteries, wait 15 seconds, and reinsert them correctly.

Maintenance

Regular maintenance is required to ensure safe operation:

• Daily: Clean sweat and moisture from the machine after each use. Keep the unit free of dust.
• Semi-annual: Inspect all bolts and nuts for tightness. Check the mobility of moving parts and apply silicone spray if necessary.
• Cleaning: Use a soft cloth. Do not use aggressive cleaning agents.

Training Guidelines

A successful session includes:

• Warm-up: 2-5 minutes of light activity to increase heart rate.
• Training: Perform the workout 2-3 times per week.
• Stretching: Hold stretches for 15-30 seconds after the workout to reduce injury risk.
• Cool-down: Gradually reduce intensity to return the body to a resting state.

Troubleshooting

• Machine beeps: Check that all bolts and nuts are tight. Apply silicone spray to the rail where the seat wheels run and check the wheels under the seat.
• Console issues: If the display is inaccurate or unreadable, replace the batteries.
