User Guide for VonShef 1.5L Deep Fryer 2013181
Quick guide for the VonShef 1.5L Deep Fryer (2013181). Includes setup, operation, cleaning, and maintenance instructions to ensure safe and efficient use.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This deep fryer is designed for domestic use only. Before first use, ensure the appliance is placed on a flat, heat-resistant surface in a well-ventilated area. Always ensure the handle is securely attached to the frying basket before operation. The appliance features a thermal cut-out switch; if it overheats, unplug it and allow it to cool for 30 minutes before reuse.

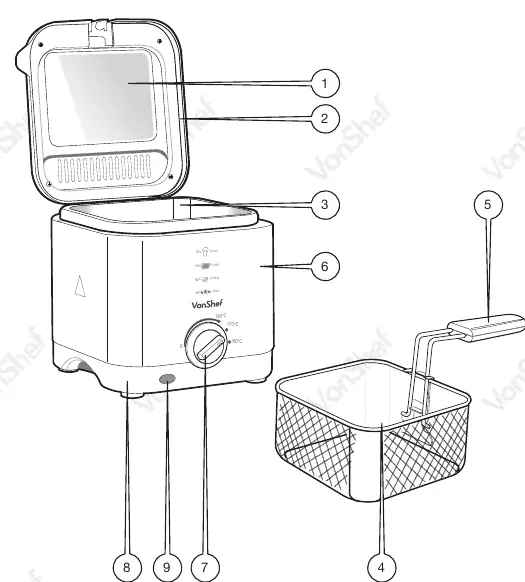

Components
- Viewing Window
- Lid
- Oil Pot
- Frying Basket
- Basket Handle
- Housing
- Temperature Dial
- Base
- Indicator Light

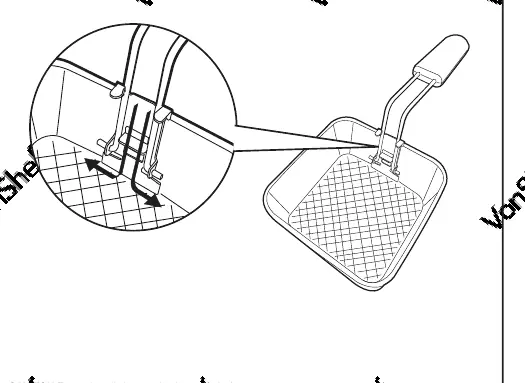

Assembly
Ensure the basket handle is completely secure before use. The handle must be locked into the frying basket mechanism as shown in the assembly diagram to prevent accidents during frying.

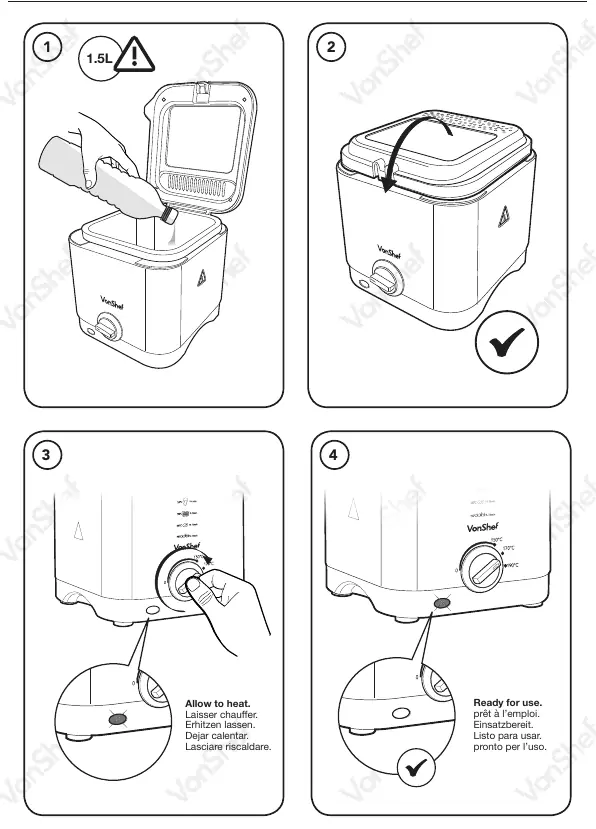

Operation
1. Filling: Fill the oil pot with oil up to the 1.5L mark.
2. Heating: Turn the temperature dial to the desired setting. Allow 5-10 minutes for the appliance to pre-heat. The indicator light will show when it is ready.

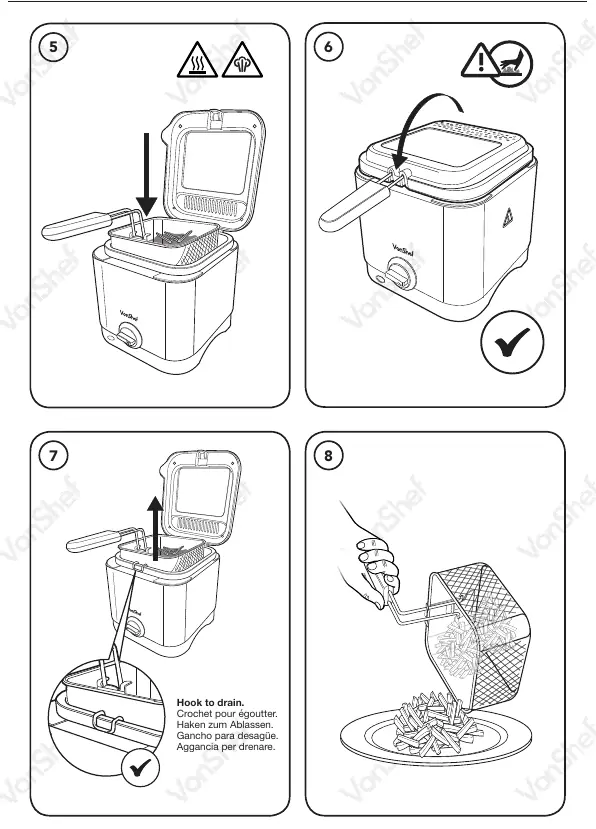

3. Frying: Lower the basket into the oil. Always use the appliance with the lid closed during operation.
4. Draining: Once cooking is complete, lift the basket and hook it onto the rim of the oil pot to allow excess oil to drain back into the pot.
5. Finishing: Turn the dial to '0' and disconnect the power cord after use.

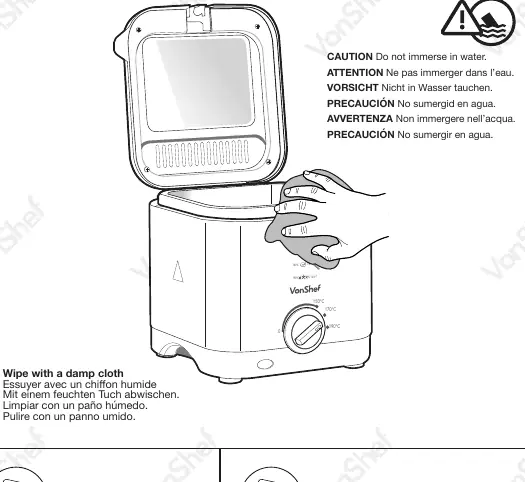

Cleaning and Maintenance
Never immerse electrical or heating components in water. Hand washing is recommended for removable parts. Soak in warm soapy water and wipe with a soft sponge. Do not use abrasive cleaners or metal scouring pads. The oil should be changed every 20 uses. When changing the oil, wipe the oil pot with absorbent paper, followed by a damp cloth and a little detergent.
Technical Specifications
- Rated Voltage: 220-240V~
- Rated Power: 900W
- Rated Frequency: 50/60Hz
Safety
Do not use the appliance outdoors or on wet surfaces. Do not operate with an external timer or remote control system. Keep the cable away from heated surfaces and do not let it hang over the edge of a table. If the appliance is not functioning properly, has been dropped, or immersed in liquid, contact DOMU Brands Customer Services.
Manufacturer information
VonShef
Practical help
Common problems
Appliance shuts down during use
The thermal cut-out switch has activated due to overheating. Unplug the appliance and allow it to cool for 30 minutes before attempting to use it again.
New smell or vapour during first use
This is normal for a new appliance and will dissipate after a few uses.
Indicator light cycles on and off
This is normal operation as the thermostat maintains the selected temperature.
Before use
- Ensure the appliance is on a flat, stable, and heat-resistant surface.
- Check that the area is well-ventilated.
- Verify that all parts are securely attached.
- Wipe the appliance with a damp cloth before first use.
- Ensure the basket handle is securely locked into the basket.
Specs in practice
- Rated Voltage
- 220-240V~ (Ensure your local power supply matches this).
- Rated Frequency
- 50/60Hz (Standard frequency for the appliance).
Images and diagrams
- The temperature dial allows for adjustment during operation.
- The basket hook allows the basket to rest on the rim for draining oil.
- The viewing window allows you to monitor food without opening the lid.
Model compatibility
- For domestic use only.
- Not compatible with external timers or remote control systems.
- Use only DOMU Brands recommended attachments.
