User Manual for Vonshef 1000W Stand Mixer

Quick guide from the manual

This manual provides instructions for the Vonshef 1000W Stand Mixer. Before first use, ensure all packaging is removed, the product is inspected for damage, and removable components are washed in warm soapy water. Do not immerse the main unit in water. The appliance features a thermal cut-out switch; if it overheats, unplug and allow it to cool for 30 minutes before restarting.

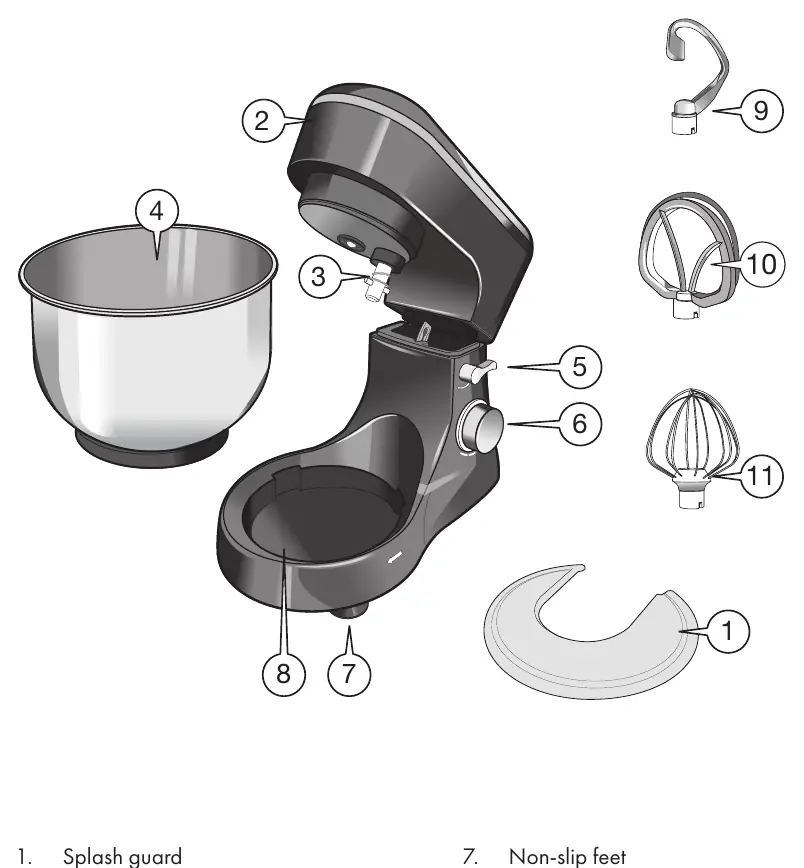

Components

• Splash guard
• Mixer head
• Accessory attachment shaft
• Stainless steel mixing bowl
• Tilt release lever
• Speed control dial
• Non-slip feet
• Bowl locking plate

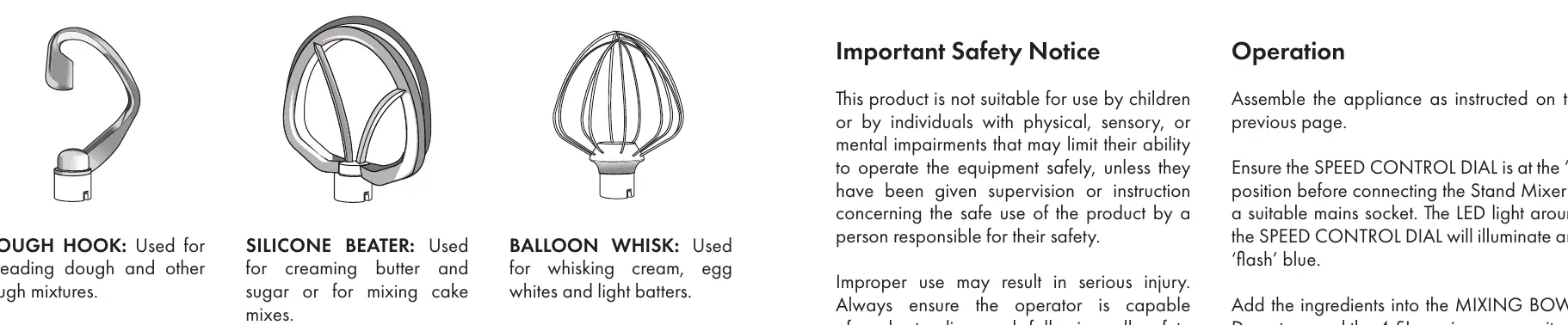

• Dough hook
• Silicone beater
• Balloon whisk

Assembly

To assemble the mixer:

1. Push the TILT RELEASE LEAVER down to release the MIXER HEAD and ease it back into an upright position.
2. Place the STAINLESS STEEL MIXING BOWL onto the BOWL LOCKING PLATE, aligning the ridges with the openings, and turn clockwise to lock.
3. Fix your chosen accessory to the ACCESSORY ATTACHMENT SHAFT by aligning the hole with the peg, pushing upwards, and twisting anti-clockwise to secure.
4. Place the SPLASH GUARD onto the top of the bowl.
5. Push the TILT RELEASE LEAVER to the RIGHT to lower the MIXER HEAD.

Speed Control

The speed control dial ranges from 1 to 8, with a Pulse function.

• Pulse function: Hold the dial at the PULSE position for short bursts of speed. Do not operate for more than 30 seconds at a time.
• Settings 1-8: Use lower speeds (1-5) for heavy mixtures like dough, and higher speeds (6-8) for light mixtures like cream or egg whites.
• Off: Turn the dial to '0' to stop the mixer completely.

Note: Do not operate the stand mixer for more than 5 minutes continuously.

Operation

Ensure the speed control dial is at '0' before connecting to the mains. The LED light will flash blue. Add ingredients to the bowl, ensuring you do not exceed the 4.5L maximum capacity (recommended to keep below 3L to prevent spillages). Ingredients can be added during operation through the port in the splash guard.

Troubleshooting

• Stand mixer will not start: Check mains connection. Thermal cut-out may have activated; allow to cool.
• Motor sounds laboured: Mixture may be too thick. Add liquid or reduce the amount of mixture.
• Vibrating excessively: Reduce speed setting. Stop, lift head, and remove excess mixture from the accessory.
• Mixing bowl loose: Ensure the bowl is locked into position prior to use.
• Attachments coming loose: Refer to the assembly section to ensure correct attachment.
