User Manual for VonShef 1.8L Rice Cooker 2013343
Quick guide for the VonShef 1.8L Rice Cooker (2013343). Includes operating instructions, rice-to-water ratios, cleaning tips, and safety precautions.
Table of contents
Manual images
Click an image to enlargeQuick Guide
The VonShef 1.8L Rice Cooker is designed for domestic use only. It features a thermal cut-out switch for safety; if the appliance overheats, it will shut down. Unplug and allow it to cool for 30 minutes before reuse. Never immerse the base unit in water.
Components
- 1. Glass Vented Lid
- 2. Cooking Pot
- 3. Base Unit
- 4. Base Handles
- 5. Pressure Switch
- 6. Cook Switch
- 7. Warm Indicator Light
- 8. Cook Indicator Light
- 9. Spoon
- 10. Measuring Cup
- 11. ON/OFF switch
Operation
Cooking Rice:
- Measure the required amount of rice using the provided measuring cup.
- Add the rice to the cooking pot.
- Add the required level of water.
- Place the cooking pot into the base unit and cover with the glass lid.
- Press the COOK SWITCH down to start the cooking process. The COOK INDICATOR LIGHT will illuminate red.
- Once cooking is complete, the COOK INDICATOR LIGHT will extinguish, and the WARM INDICATOR LIGHT will illuminate, indicating the 'keep warm' function is active.
Tips for Best Results
- Ratios: One full, level cup of uncooked rice requires 1 cup of water. For brown rice, use 3-4 cups of water per 1 cup of rice.
- Soaking: For softer rice, allow it to soak for 10-20 minutes before cooking.
- Steam Loss: Avoid opening the lid during the cooking process unless absolutely necessary to prevent steam loss and longer cooking times.
- Safety: Take care when opening the lid as steam may be emitted.

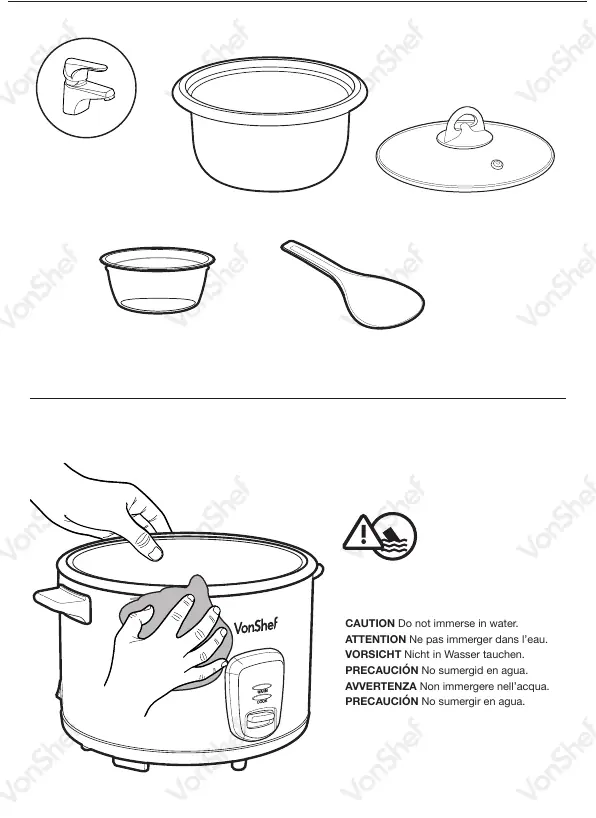

Cleaning and Maintenance
Important: Never soak or immerse electrical or heating components in water.
- Hand washing is recommended. Soak the cooking pot and lid in warm soapy water and wipe with a soft sponge.
- Use a non-abrasive cleaning brush for stubborn stains.
- Do not use abrasive cleaning solutions or metal scouring pads.
- Never wash electrical components or the base unit in a dishwasher.
- Allow the appliance to cool completely before cleaning.
Technical Specifications
- Rated Voltage: 220-240V
- Rated Power: 700W
- Rated Frequency: 50/60Hz
Manufacturer information
VonShef
Practical help
Common problems
Appliance shuts down during use
The thermal cut-out switch has activated due to overheating. Unplug the appliance and allow it to cool for 30 minutes before reuse.
Rice is too hard
Allow the rice to soak for 10-20 minutes before starting the cooking cycle.
Appliance overflows
Ensure you are not overfilling the cooking pot beyond the recommended capacity.
Before use
- Check that your electricity supply matches the rating plate.
- Ensure all parts are securely attached.
- Place the appliance on a firm, flat, heat-resistant surface.
- Ensure the appliance is empty before starting.
- Check that the cable is not damaged.
Specs in practice
- Rated Voltage
- 220-240V AC power supply required.
- Rated Frequency
- 50/60Hz frequency.
Images and diagrams

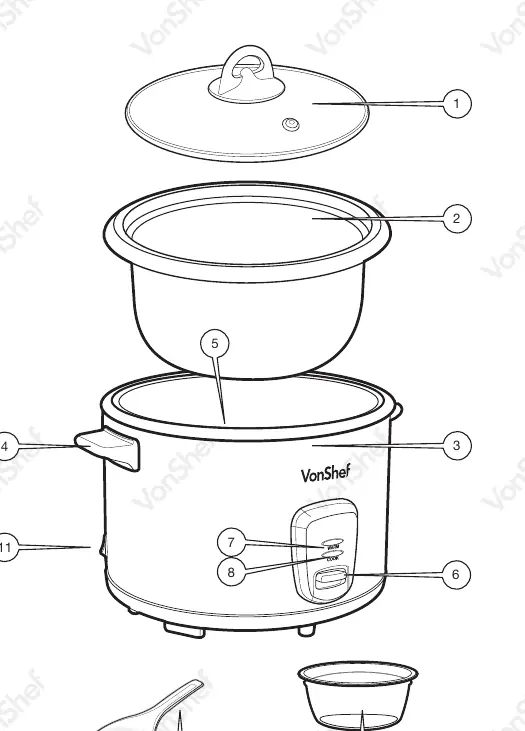

- The components diagram identifies the lid, cooking pot, base unit, and control switches.

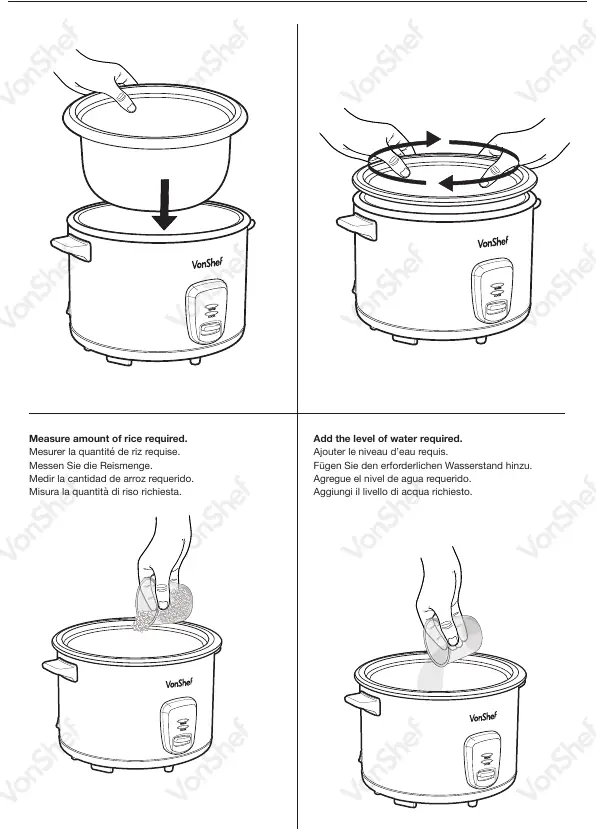

- Operation diagrams illustrate the correct sequence for measuring rice, adding water, and activating the cook switch.
Model compatibility
- Use only DOMU Brands recommended attachments.
- Not intended for use with external timers or remote control systems.
