V7 65W USB-C PD Charger 01GY19

Quick guide for the V7 65W USB-C PD Charger (01GY19). Learn how to attach and remove regional plugs, understand power output configurations for single and dual device charging, and view technical specifications.

Table of contents

Quick guide from the manual

This charger features interchangeable plugs for US, EU, and UK outlets. To install, slide the appropriate plug into the charger body. To remove, slide the top lever forward and pull the plug out. The charger supports dual-device charging with intelligent power distribution between the 20W and 45-60W ports.

Device Overview and Plug Installation

The V7 65W USB-C PD Charger is designed for versatility with multiple regional plug options. Ensure the plug is securely locked into the charger before connecting to a power source.

  • Installing: Align the plug with the charger and slide it in until it locks.
  • Removing: Push the top lever forward to release the locking mechanism, then slide the plug out.

Power Output Configurations

The charger features two USB-C ports. The power output varies depending on whether one or two devices are connected simultaneously.

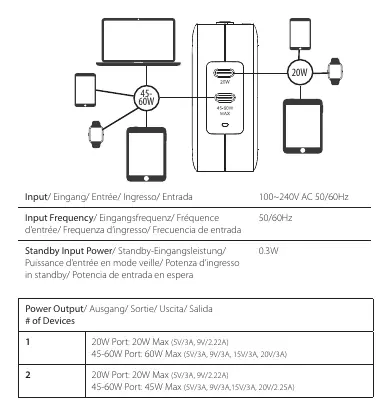

Port layout and power output specifications
Port layout and power output specifications

Charging One Device

  • 20W Port: Delivers up to 20W Max (5V/3A, 9V/2.22A).
  • 45-60W Port: Delivers up to 60W Max (5V/3A, 9V/3A, 15V/3A, 20V/3A).

Charging Two Devices

  • 20W Port: Delivers up to 20W Max (5V/3A, 9V/2.22A).
  • 45-60W Port: Delivers up to 45W Max (5V/3A, 9V/3A, 15V/3A, 20V/2.25A).

Technical Specifications

  • Input: 100-240V AC 50/60Hz
  • Input Frequency: 50/60Hz
  • Standby Input Power: 0.3W

Practical help

Common problems

Plug not fitting or locking

Ensure the correct regional plug (US, EU, or UK) is selected and slid into the charger body until it clicks into place.

Cannot remove the plug

Slide the top lever forward to release the locking mechanism before attempting to slide the plug out.

Before use

  • Verify the regional plug type (US, EU, or UK) matches your wall outlet.
  • Ensure the plug is fully inserted into the charger body.
  • Check that your device cable is compatible with USB-C PD standards.
  • Confirm the power requirements of your devices to ensure they match the port output.

Specs in practice

Input 100-240V AC
Universal voltage compatibility, suitable for international travel.

Images and diagrams

  • The diagram illustrates how to slide the regional plug into the charger body.
  • The diagram shows the lever mechanism used to release and remove the plug.
  • The diagram displays the power distribution between the two ports when charging one or two devices simultaneously.

Model compatibility

  • Supports USB-C Power Delivery (PD).
  • Compatible with US, EU, and UK wall outlets via interchangeable plugs.
