Wayfair 0694A Adirondack Chair Assembly Guide
Assembly guide for the Wayfair 0694A Adirondack Chair. Includes parts list, step-by-step assembly instructions, folding mechanism, safety warnings, and maintenance tips.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This guide covers the assembly and maintenance of the Wayfair 0694A Adirondack Chair. Key points: do not fully tighten screws until assembly is complete, respect the 350 lb weight limit, and do not sit on the armrests or backrest.
Parts and hardware
Before starting, verify all components are present. The hardware includes various bolts (M6x80mm, M6x60mm, M6x30mm, M6x50mm), screws, washers, nuts, a spanner, and an Allen key. Parts include the seat panel, legs, arms, back panel, bars, and cup holder.
Assembly instructions
Follow these steps to assemble the chair. Note: Do not overtighten screws during the initial assembly process.

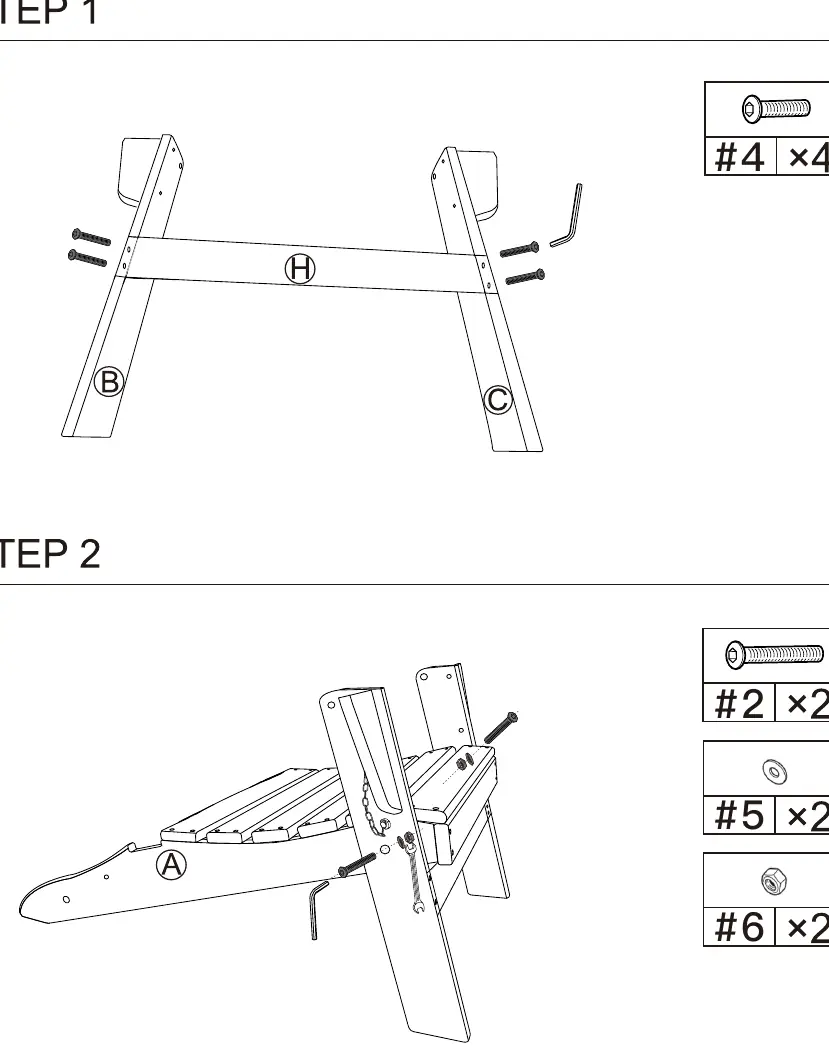

- Step 1: Attach the rear bar (H) to the left (B) and right (C) legs using bolts (#4).
- Step 2: Connect the seat panel (A) to the leg assembly using bolts (#2), washers (#5), and nuts (#6).

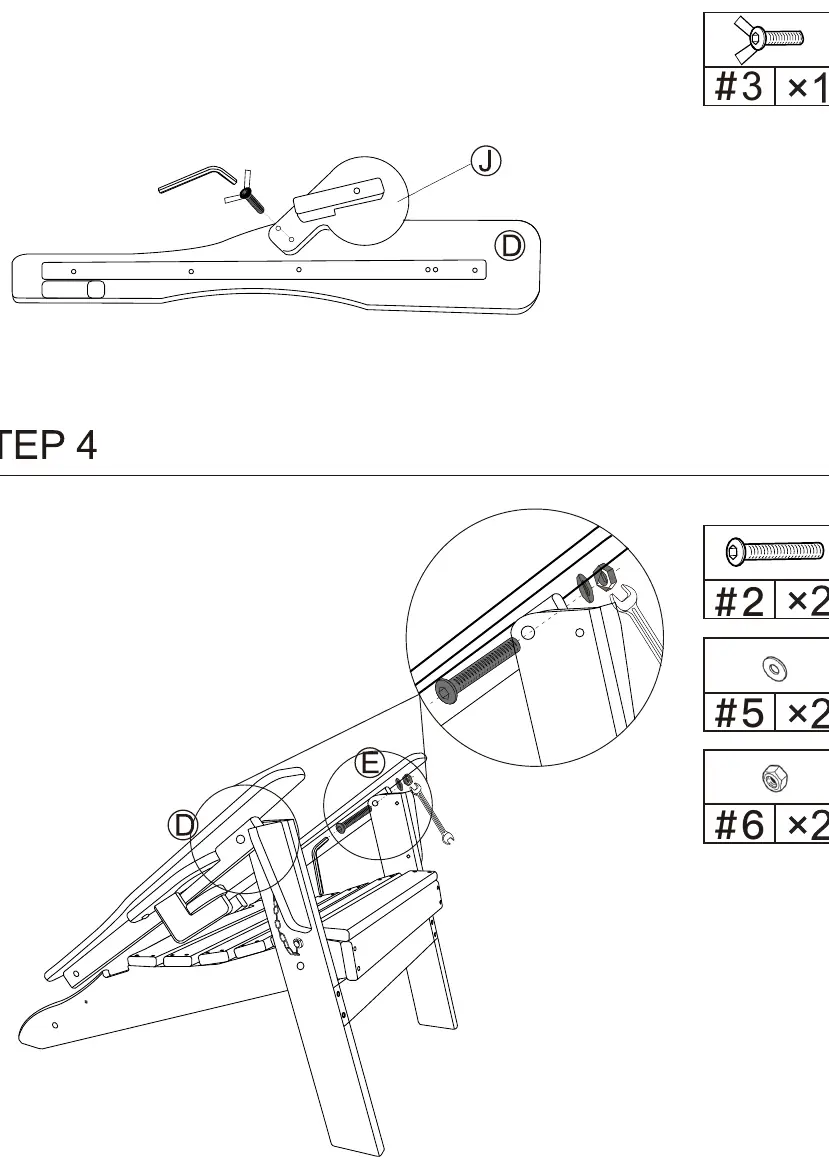

- Step 3: Attach the cup holder (J) to the right arm (D) using bolt (#3).
- Step 4: Attach the left (E) and right (D) arms to the main structure using bolts (#2), washers (#5), and nuts (#6).

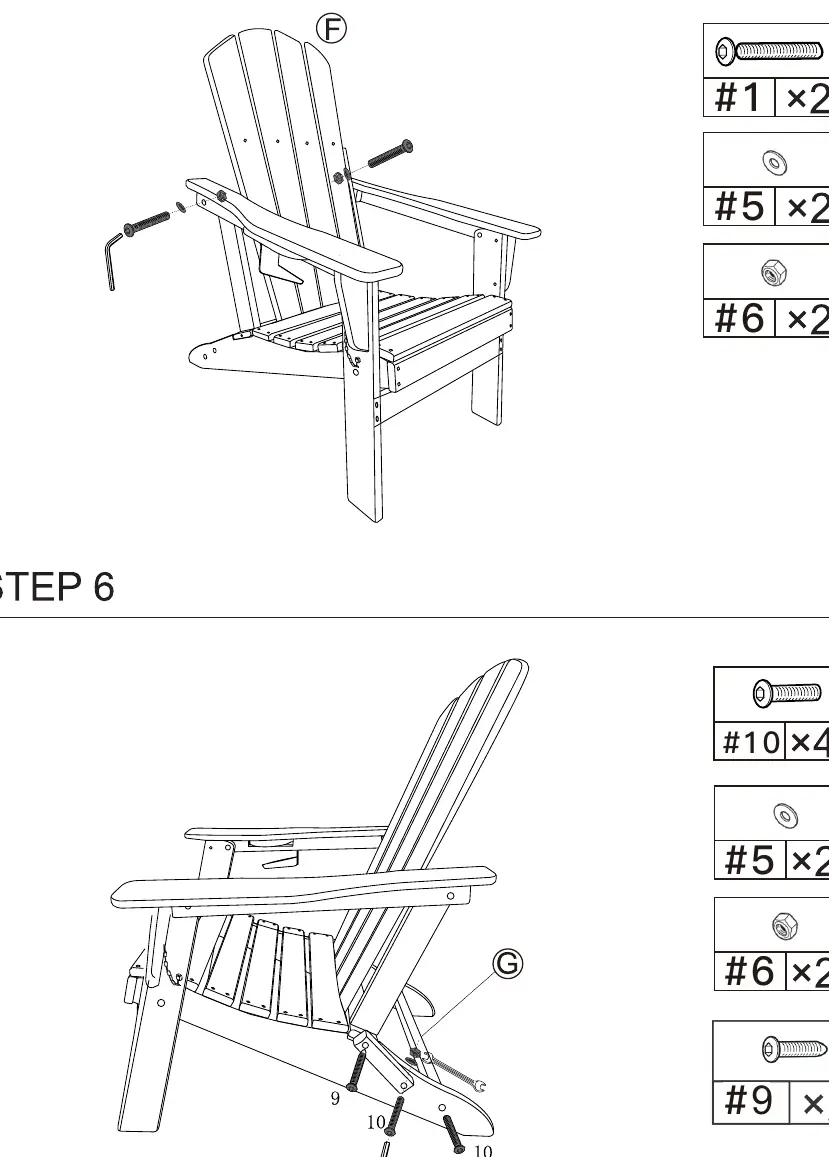

- Step 5: Attach the back panel (F) to the arms and seat using bolts (#1), washers (#5), and nuts (#6).
- Step 6: Secure the rear bar (G) to the legs using bolts (#10), washers (#5), nuts (#6), and screws (#9).

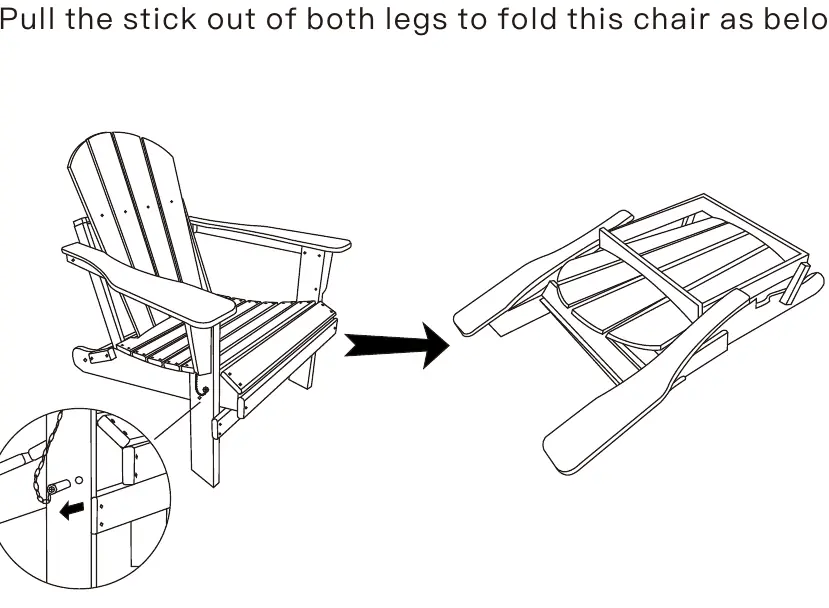

Folding the chair
To fold the chair, pull the stick out of both legs to allow the chair to collapse.
Safety and maintenance
- Weight Capacity: Maximum weight capacity is 350 lb (evenly distributed).
- Safety: Do not sit on the armrest or backrest to avoid tipping. Do not allow children to climb on the backrest.
- UV Protection: The chair is made with UV-stabilizers to minimize fading, but some fading will occur over time. Use a protective cover or store indoors when not in use.
- Cleaning: Clean with mild soap and a soft-bristled brush. Avoid harsh, abrasive cleaners or metal scouring pads.
- Surface Care: Use a coaster when placing glassware on the chair to prevent burn marks from sunlight.
Manufacturer information
Wayfair LLC
Practical help
Common problems
Chair is unstable or tipping
Ensure you are not sitting on the armrests or backrest. Check that all bolts are properly tightened after initial assembly.
Color fading
The chair is UV-stabilized, but will fade over time. Use a protective cover or store in a shaded area when not in use.
Missing parts
Inspect box contents immediately upon arrival. If parts are missing, contact Customer Service.
Before use
- Verify all parts and hardware are present according to the parts list.
- Ensure you have the provided Allen key and spanner.
- Clear a workspace for assembly.
- Do not fully tighten screws until the entire chair is assembled.
- Check that the chair is on a level surface.
Specs in practice
- Total weight capacity
- 350 lb (evenly distributed). Do not exceed this limit.
- UV-stabilizers
- Material is treated to resist sun damage, but fading is still expected over time.
Images and diagrams
- Steps 1-6 illustrate the specific bolt, nut, and washer placement for each section of the chair.
- The folding diagram shows the location of the locking stick that must be pulled to fold the chair.
Model compatibility
- Designed for outdoor use, but requires protection (cover) to prolong lifespan.
