Assembly and User Guide for Wayfair FYC 239-Ergo-4 Ergonomic Office Chair
Complete assembly and adjustment guide for the Wayfair FYC 239-Ergo-4 ergonomic office chair. This manual covers step-by-step assembly of the base, seat, and armrests, as well as instructions for using the 4D armrests, seat height, and...
Quick answers from the manual
Quick answer
- This manual provides assembly instructions and adjustment guides for the Wayfair FYC 239-Ergo-4 ergonomic office chair, including seat height, backrest tension, and 4D armrest settings. p. 2, 3, 4, 5
Key actions
- Assemble backrest to mechanism p. 2
- Assemble armrests and mechanism to seat p. 3
- Insert castors and gas lift p. 3
First start
- Assemble the chair components using the provided bolts (J) and wrench (I), then insert the gas lift and castors into the base. p. 2, 3
Show 1 more answers Show less
Where to find it in the PDF
- Parts List p. 2
- Assembly Instructions p. 2, 3
- Adjustments p. 4, 5
Table of contents
Manual images
Click an image to enlargeQuick Guide
This guide provides instructions for assembling and adjusting the Wayfair FYC 239-Ergo-4 ergonomic office chair. Ensure you have all parts (A-J) before beginning assembly. The chair features multiple adjustment points, including seat height, backrest tension, backrest angle, and 4D armrests.
Parts List
- A: Backrest
- B: Seat
- C: Mechanism
- D: Armrest set
- E: Gas lift
- F: Base
- G: Castors (5 pcs)
- H: Bolts 8mm*19mm (3 pcs)
- I: Wrench
- J: Bolts 8mm*32mm (10 pcs)
Assembly Instructions

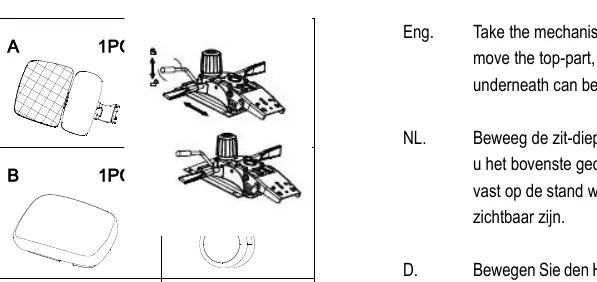

- Backrest Assembly: Attach the backrest (A) to the mechanism (C). Use the slide level (1) on the mechanism to move the top part and expose the fixing holes.
- Armrest Assembly: Assemble the armrests (D) to the seat (B) using 6 bolts (J) and the wrench (I).
- Mechanism Assembly: Fix the mechanism (C) to the seat (B) using 4 bolts (J) and the wrench (I).
- Base Assembly: Insert the castors (G) into the base (F) (some force may be required). Insert the gas lift (E) into the base (F).
- Final Assembly: Place the assembled seat/mechanism/backrest unit onto the gas lift (E).
Chair Adjustments

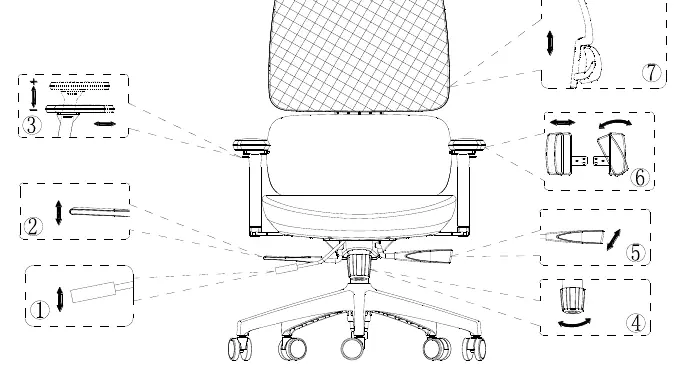

The chair includes several adjustment handles and knobs:
- Seat Height (2): Use handle (2) to adjust the seat height.
- Backrest Tension (4): Turn the big knob (4) to adjust the tension of the backrest when it is not locked in a fixed position.
- Backrest Angle (5): Press level (5) forward to lock the backrest angle, or backward to unlock and adjust.
- Seat Slide (1): Press level (1) upwards and pull the seat to slide it forward or backward.
- Backrest Height: Move the backrest up or down to adjust the height.

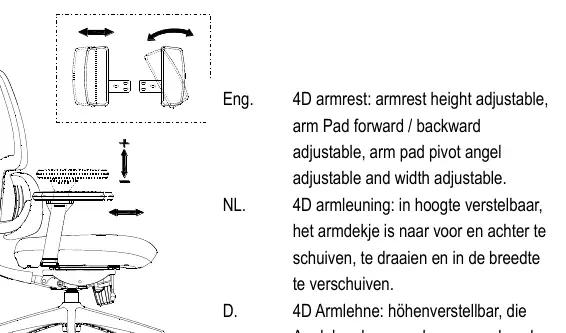

- 4D Armrests: The armrests are adjustable in height, width, depth (forward/backward), and pivot angle.
