Assembly Instructions for Wayfair Ophelia Montclair Side Chair
Step-by-step assembly guide for the Wayfair Ophelia Montclair side chair, including a complete parts list, hardware specifications, and maintenance tips to ensure stability.
Quick answers from the manual
Quick answer
- This document provides assembly instructions for the Wayfair Ophelia Montclair side chair. Key assembly steps involve attaching the backrest to the seat frame, followed by the front legs and stretchers. p. 1, 2
Key actions
- Do not tighten bolts until the chair is completely assembled. p. 1, 2
- Periodically check and re-tighten all connections. p. 1
Maintenance and reset
- Periodically check and re-tighten all connections. p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Allen Key | 4*59 mm | Tool provided for assembly | p. 1 |
Where to find it in the PDF
- Assembly Instructions p. 1, 2
Table of contents
Manual images
Click an image to enlargeImportant Information
Before beginning assembly, ensure you have all parts and hardware listed. Do not tighten bolts until the chair is completely assembled. It is recommended to use protective pads under all legs to prevent damage or scratches on hard floors. A screwdriver is required for assembly but is not provided.
Parts List
- A: Chair back
- B: Seat frame with cushion
- C: RSF front leg
- D: LSF front leg
- E: RSF stretcher
- F: LSF stretcher
Hardware List
- 1: Short Bolt (1/4" x L40 mm)
- 2: Medium Bolt (1/4" x L60 mm)
- 3: Long Bolt (1/4" x L75 mm)
- 4: Lock Washer (5/16" x 21/64" x 15/32" x 1/16")
- 5: Flat Washer (5/16" x 21/64" x 3/4" x 5/64")
- 6: Wood Screw (Ø1/8" x 38 mm)
- 7: Allen Key (4*59 mm)
Assembly Instructions
Step 1
Attach the chair back (A) to the seat frame (B) using the long bolts (3), lock washers (4), and flat washers (5). Tighten using the provided Allen key (7).

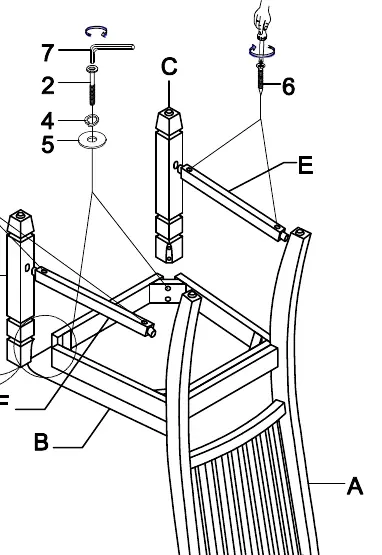

Step 2
Attach the front legs (C, D) and stretchers (E, F) to the seat frame. Secure using the medium bolts (2), lock washers (4), and flat washers (5). Use the wood screws (6) to secure the stretchers. Ensure all parts are aligned before fully tightening all bolts.
Maintenance
Hardware may loosen over time. Periodically check and re-tighten all connections to ensure the chair remains stable and safe to use.
Manufacturer information
Wayfair LLC
Practical help
Common problems
Hardware feels loose after some time
Periodically check and re-tighten all connections.
Scratches on hard floors
Install protective pads under all legs.
Before use
- Verify all parts (A-F) are present
- Verify all hardware (1-7) is present
- Have a screwdriver ready (not provided)
- Clear a workspace for assembly
Specs in practice
- Short Bolt (1)
- 1/4" x L40 mm
- Medium Bolt (2)
- 1/4" x L60 mm
Images and diagrams
- Step 1 shows the connection of the backrest to the seat frame.
- Step 2 shows the attachment of the front legs and stretchers to the seat frame.
