Installation Guide for Acroma 2091806AZBG Chandelier
Step-by-step installation and assembly guide for the Acroma 2091806AZBG 6-Light Chandelier. Includes hardware list, wiring instructions, and safety precautions.
Quick answers from the manual
Quick answer
- The Acroma 2091806AZBG is a 6-light chandelier. Installation involves assembling the fixture body, mounting the plate to the junction box, and connecting the electrical wires according to the provided diagram. p. 1, 2, 3, 4
Key actions
- Assemble the fixture body by attaching the outer wheel and spreading the arms. p. 3
- Connect the supply wires to the fixture wires using wire nuts. p. 4
Problems and fixes
Electrical questions
Consult a qualified electrician.
p. 1Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Type | Candelabra Base | Standard bulb base type for this fixture | p. 1 |
| Max Wattage | 60W | Maximum wattage per bulb | p. 1 |
Where to find it in the PDF
- Safety and Warranty p. 1
- Assembly Guide and Hardware p. 2
- Assembly Steps p. 3
- Installation and Wiring p. 4
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides instructions for the assembly and installation of the Acroma 2091806AZBG 6-Light Chandelier. Before starting, ensure the power is disconnected at the circuit breaker or fuse box. Use only tools with insulated handles and follow all safety guidelines provided.
Tools Required
- Phillips Screwdriver
- Wire Stripper
- Pliers
- Safety Goggles
- Electrical Tape
Assembly Instructions
Follow these steps to assemble the fixture:
- Slide the fixture: Slide the fixture into the outer wheel before spreading the arms.
- Rotate arms: Rotate the arms into position.
- Secure wheel: Secure the outer wheel to the fixture using the supplied finials.
- Install components: Attach the socket sleeves, rubber pads, and covers to the fixture arms.
Installation and Wiring
Once assembled, proceed with the ceiling installation:
- Mounting plate: Attach the mounting plate to the junction box using the support screws.
- Wiring: Connect the fixture wires to the supply wires as follows:
- White Supply Wire: Connect to the White or Identified Fixture Wire.
- Black Supply Wire: Connect to the Plain or Black Fixture Wire.
- Ground Wire: Connect the supply ground wire to the fixture ground wire or the green ground screw.
- Finalize: Secure the canopy to the mounting plate.
Safety Information
Always turn off the main power before touching any wires. If you are unsure about the electrical installation, consult a qualified electrician. Do not attempt to modify the fixture or use it in a way not specified in these instructions.
Practical help
Common problems
Fixture not working after installation
Check all wire connections to ensure they are secure and correctly matched (White to White, Black to Black, Ground to Ground). Verify that the circuit breaker is on.
Unsure about wiring
Consult a qualified electrician if you have any electrical questions or if new wiring is required.
Before use
- Turn off power at the circuit breaker or fuse box.
- Ensure you have all required tools: Phillips screwdriver, wire stripper, pliers, safety goggles, and electrical tape.
- Place the fixture on a soft, non-abrasive surface (e.g., carpet or cardboard) during assembly to avoid damage.
- Verify that all parts listed in the 'Hardware Included' section are present.
Show more Show less
Images and diagrams
- The wiring diagram shows the correct connection of supply wires to fixture wires using wire nuts.

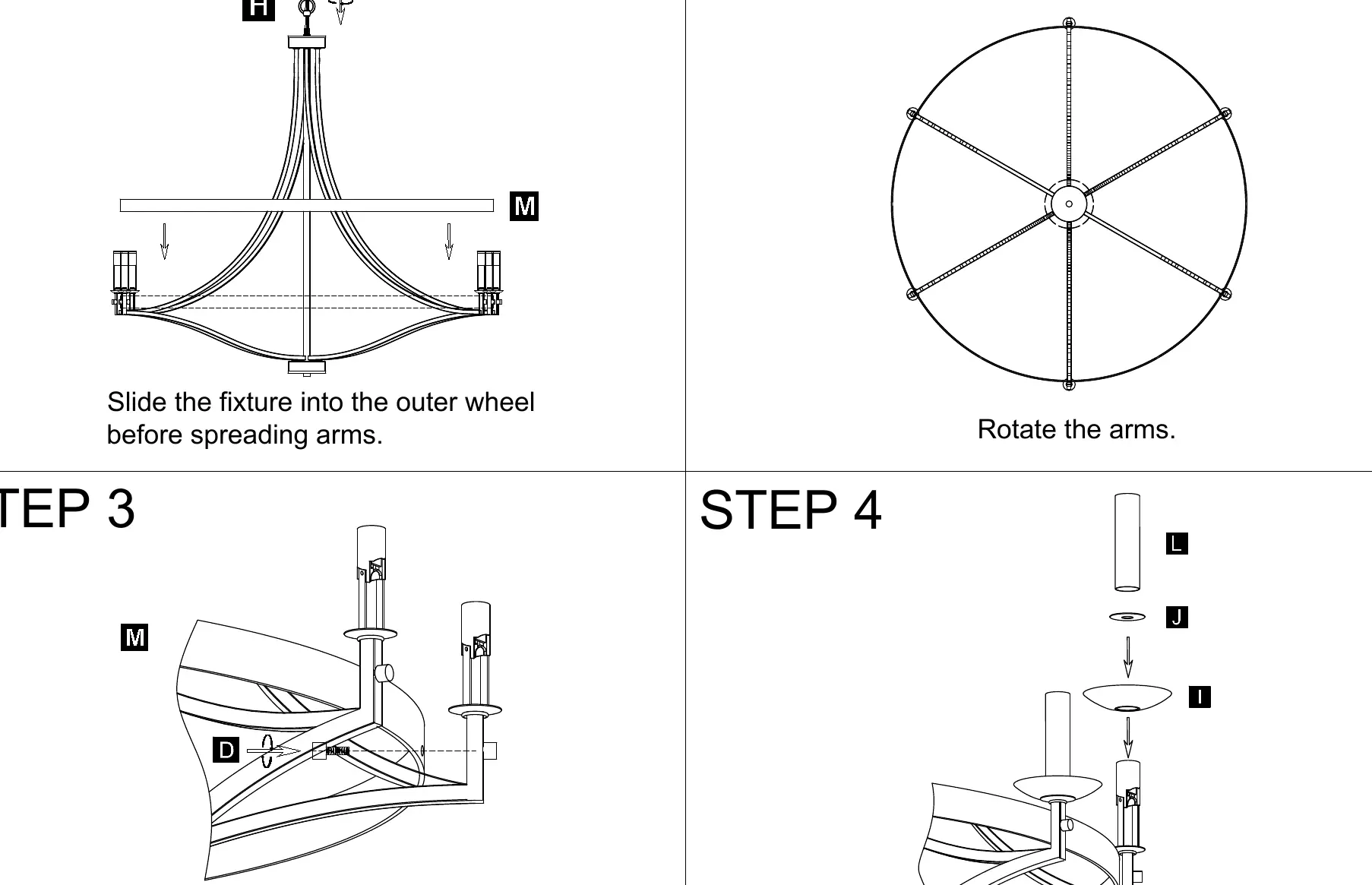

- Assembly steps 1-4 illustrate the physical construction of the chandelier body.

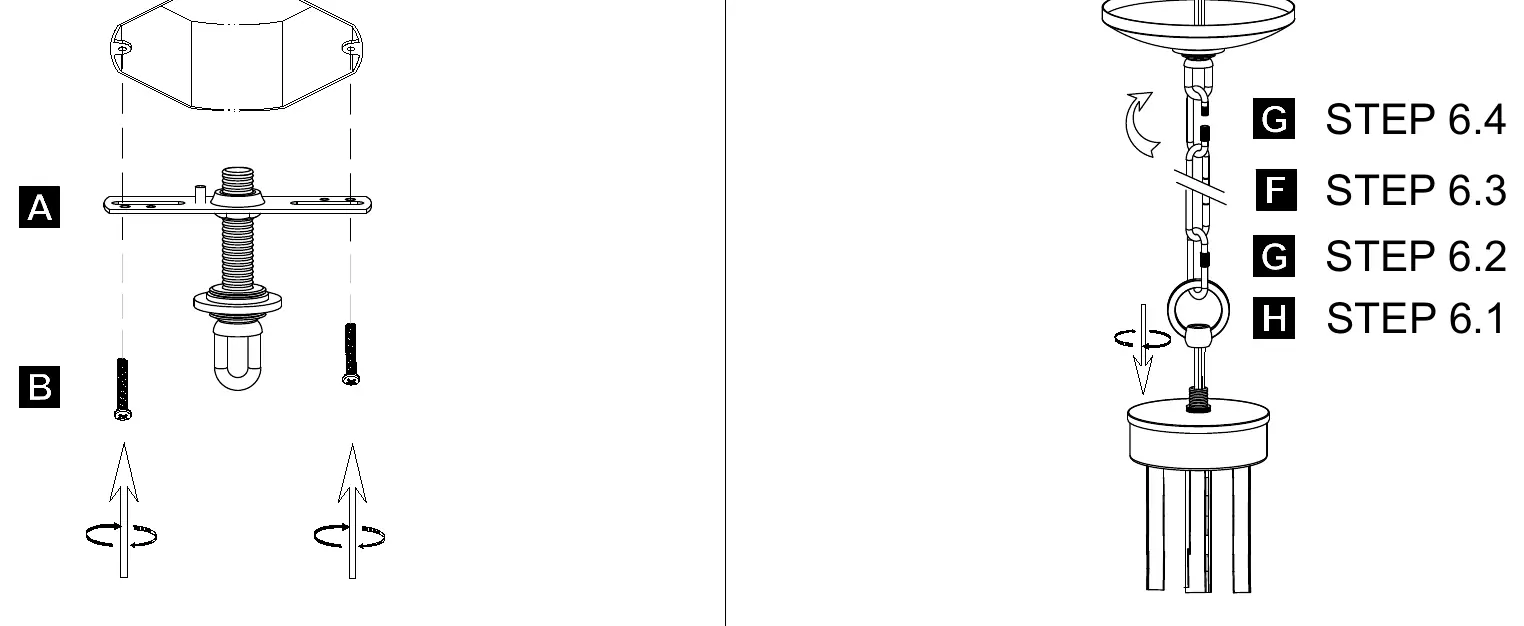

- Steps 5-7 detail the mounting plate installation and canopy attachment.
