Installation Guide for Acroma 2081316AZ 16-Light Chandelier
Installation guide for the Acroma 2081316AZ 16-light farmhouse chandelier. Includes safety warnings, hardware list, step-by-step assembly, and wiring instructions.
Quick answers from the manual
Quick answer
- This guide covers the installation of the Acroma 2081316AZ 16-light chandelier, including hardware identification, assembly steps, and wiring diagrams. p. 1, 2, 3, 4
Key actions
- Turn off the main power at the circuit breaker before starting installation. p. 1
- Connect the safety lanyard to the mounting bracket to support the fixture during wiring. p. 3
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Base | 16 x Max 60W Candelabra Base | Maximum wattage per bulb | p. 1 |
Show 1 more answers Show less
Where to find it in the PDF
- Safety and Tools p. 1
- Hardware and Assembly Overview p. 2
- Installation Steps 1-4 p. 3
- Wiring and Final Steps p. 4
Table of contents
Important Information
This document provides instructions for the installation of the Acroma 2081316AZ 16-light chandelier. Before beginning, ensure the power is disconnected at the circuit breaker. This fixture is intended for dry locations only.
Tools Required
- Phillips Screwdriver
- Wire Stripper
- Pliers
- Safety Goggles
- Electrical Tape
Hardware Included
The package includes the following components:
- Canopy and Crossbar assembly
- Outlet box screws (short)
- Green ground screw
- Wire connectors
- Finials
- Support screws (long), Hex nuts, and Flat washers
- Chain end loops, Chain, and Connector ring
- Socket sleeves and Side hanging rods
Installation Steps
- Assembly: Attach the side hanging rods and socket sleeves to the fixture body.
- Preparation: Determine the required length of the chain. Attach the chain end loops and connector ring.
- Mounting: Attach the mounting plate to the junction box.
- Support: Connect the safety lanyard to the mounting bracket to hold the fixture in place while making electrical connections.
- Wiring: Connect the fixture wires to the supply wires using the provided wire connectors, ensuring proper grounding.
- Finalization: Secure the canopy to the ceiling using the provided hardware.
Wiring Instructions
Follow the standard wiring color codes:
- White Supply Wire: Connect to the White or Identified Fixture Wire.
- Black Supply Wire: Connect to the Plain or Black Fixture Wire.
- Bare or Green Ground Wire: Connect to the Fixture Ground Wire or the Green Ground Screw on the mounting plate.
Safety Information
- Always turn off the main power at the circuit breaker before starting installation.
- Use a voltage tester to ensure wires are not live before touching them.
- Use tools with insulated handles.
- If you have any electrical questions, consult a qualified electrician.
Warranty
The manufacturer provides a one (1) year warranty covering defects in materials and workmanship under normal use. This warranty does not cover misuse, abuse, accidents, or improper installation.
Practical help
Common problems
Fixture is difficult to hold while wiring
Use the provided safety lanyard to connect the fixture to the mounting bracket, allowing it to hang securely while you make the electrical connections.
Unsure about wiring connections
Consult a qualified electrician. Ensure the ground wire is properly connected to the green ground screw or the supply ground wire.
Before use
- Turn off the main power at the circuit breaker.
- Verify that the junction box is secure.
- Ensure hands and feet are dry.
- Use a voltage tester to confirm the circuit is not live.
- Place the fixture on a soft, non-abrasive surface during assembly.
Show more Show less
Specs in practice
- 16 x Max 60W Candelabra Base
- The fixture supports up to 16 bulbs with a candelabra base, with a maximum wattage of 60W per bulb.
Images and diagrams
- Step 1-2: Assembly of the fixture body and hanging rods.
- Step 3: Attaching the chain and loop assembly.

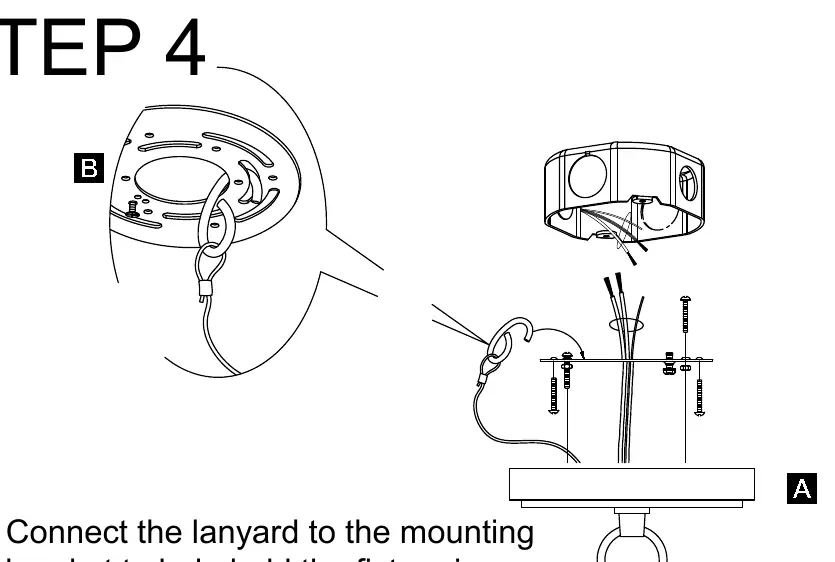

- Step 4: Using the safety lanyard for hands-free support during wiring.
- Step 5: Wiring diagram showing connections for supply and fixture wires.
Model compatibility
- Dry rated only.
- Requires standard junction box installation.
