Installation Instructions for ACROMA 2081316BRAZ Candle Style Wagon Wheel Chandelier
A comprehensive installation guide for the ACROMA 2081316BRAZ chandelier. This manual provides essential safety information, a list of required tools, hardware identification, and step-by-step instructions for assembly and wiring.
Quick answers from the manual
Quick answer
- The ACROMA 2081316BRAZ is a candle-style wagon wheel chandelier. Installation requires basic electrical knowledge, including wiring the fixture to the ceiling supply and assembling the hanging components. p. 1, 2, 3, 4
Key actions
- Connect the lanyard to the mounting bracket to support the fixture during wiring. p. 3
- Wire the fixture: White to White, Black to Black, Ground to Ground. p. 4
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Base | Candelabra | Socket type | p. 1 |
| Max Wattage | 60W | Maximum power per bulb | p. 1 |
Show 1 more answers Show less
Where to find it in the PDF
- Safety and Tools p. 1
- Hardware and Assembly p. 2
- Installation Steps 1-4 p. 3
- Installation Steps 5-6 p. 4
Table of contents
Manual images
Click an image to enlargeImportant Information
This document provides installation instructions for the ACROMA 2081316BRAZ chandelier. Before beginning, ensure the power is turned off at the circuit breaker. If you are unsure about electrical installation, consult a qualified electrician.
Tools Required
- Phillips Screwdriver
- Wire Stripper
- Pliers
- Safety Goggles
- Electrical Tape
Hardware Included
- Canopy
- Crossbar assembly
- Outlet box screws (x2)
- Green ground screw
- Wire connectors (x3)
- Finials (x2)
- Support screws (long) (x2)
- Hex nuts (x4)
- Flat washers (x2)
- Chain end loops (x2)
- Chain (x1)
- Connector ring (x1)
- Socket sleeves (x16)
- Side hanging rods (x2)
Installation Steps
- Socket Sleeves: Install the socket sleeves (M) onto the fixture.
- Side Hanging Rods: Attach the side hanging rods (N) to the fixture.
- Chain Assembly: Assemble the chain (K), chain end loops (J), and connector ring (L) to the top of the fixture.
- Mounting Bracket: Attach the crossbar assembly (B) to the junction box. Connect the lanyard to the mounting bracket to hold the fixture in place while making wire connections.
- Wiring: Connect the white supply wire to the white/identified fixture wire, the black supply wire to the plain/black fixture wire, and the ground wire to the green ground screw or ground wire from the supply. Secure with wire connectors.
- Final Assembly: Secure the canopy to the mounting bracket using the finials.
Safety Information
Read and save these instructions. Always turn off power at the circuit breaker before touching any wires. Use a voltage tester to ensure the circuit is not live. Ensure hands and feet are dry during installation. Use tools with insulated handles and ladders made of wood or fiberglass.
Practical help
Common problems
Fixture does not light up after installation
Verify all wire connections are secure and match the wiring diagram (White to White, Black to Black, Ground to Ground). Ensure the circuit breaker is on.
Fixture is difficult to hold while wiring
Use the provided lanyard to attach the fixture to the mounting bracket, allowing it to hang securely while you connect the wires.
Before use
- Turn off power at the circuit breaker
- Use a voltage tester to confirm power is off
- Ensure hands and feet are dry
- Use tools with insulated handles
- Verify the ceiling junction box can support the weight of the fixture
Show more Show less
Specs in practice
- Candelabra Base
- The type of bulb socket used for this fixture.
Images and diagrams

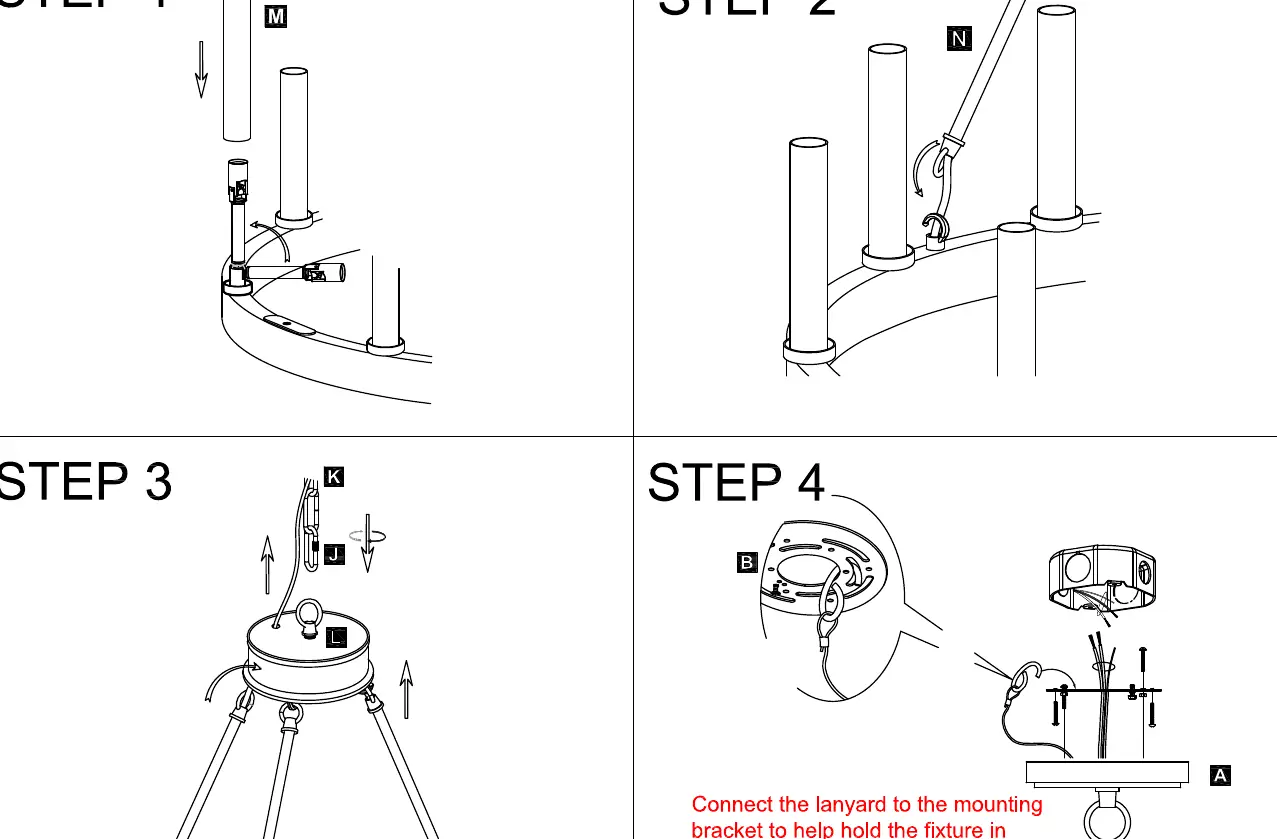

- Step 1-2: Shows the attachment of socket sleeves and side hanging rods.
- Step 3: Illustrates the assembly of the chain and connector ring.
- Step 4: Demonstrates using the lanyard to support the fixture during wiring.

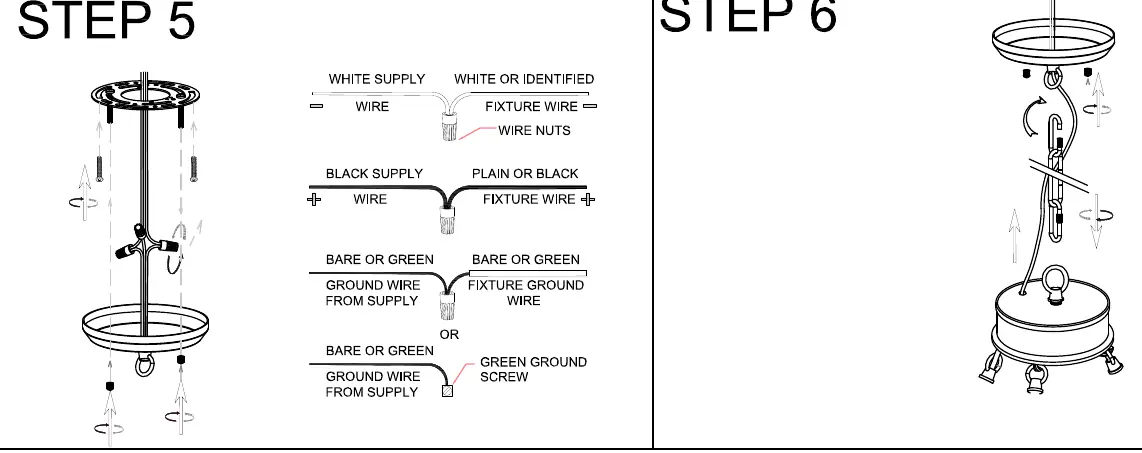

- Step 5: Provides a clear wiring diagram for connecting supply wires to fixture wires.
Model compatibility
- Designed for standard ceiling junction boxes.
- Requires 16 bulbs with Candelabra base.
