Installation Guide for Acroma 2091812AZ 12-Light Chandelier
Complete installation and assembly guide for the Acroma 2091812AZ 12-Light Chandelier. Includes safety warnings, hardware list, step-by-step assembly instructions, and wiring diagrams.
Quick answers from the manual
Quick answer
- This guide provides instructions for assembling and installing the Acroma 2091812AZ 12-Light Chandelier, including safety precautions, hardware lists, and wiring diagrams. p. 1, 2, 3, 4
Key actions
- Turn off power p. 1
- Assemble fixture arms p. 3
- Connect wires p. 4
First start
- Ensure power is off, assemble the fixture body, mount the plate to the junction box, connect wires, and secure the canopy. p. 2, 3, 4
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Type | 12 x Max 60W Candelabra Base | Maximum wattage per bulb | p. 1 |
Where to find it in the PDF
- Safety and Tools p. 1
- Hardware and Assembly p. 2, 3
- Installation and Wiring p. 4
Table of contents
Quick guide from the manual
This document provides instructions for the safe assembly and installation of the Acroma 2091812AZ 12-Light Chandelier. Before starting, ensure the power is disconnected at the circuit breaker. You will need a Phillips screwdriver, wire stripper, pliers, safety goggles, and electrical tape. Do not attempt to install if you are unsure about electrical wiring; consult a qualified electrician.
Hardware included
Ensure all parts are present before beginning assembly:
- Mounting plate
- Support screws (x2)
- Wire connectors (x3)
- Finials (x12)
- Canopy
- Chain
- Chain end loops (x2)
- Connector ring (on fixture)
- Covers (x12)
- Rubber pads (x12)
- Metal washers (x2)
- Socket sleeves (x12)
- Wheel
Assembly instructions
Follow these steps to assemble the fixture body:
- Step 1: Slide the fixture into the outer wheel before spreading the arms.
- Step 2: Rotate the arms one by one into position.
- Step 3: Secure the outer wheel to the fixture using the supplied finials.
- Step 4: Install the socket sleeves, rubber pads, and covers onto the light sockets.
Installation and wiring
Follow these steps to mount the fixture to the ceiling:
- Step 5: Attach the mounting plate to the junction box using the support screws.
- Step 6: Assemble the chain and canopy components.
- Step 7: Connect the wires according to the following diagram:
- White Supply Wire: Connect to the White or Identified Fixture Wire using wire nuts.
- Black Supply Wire: Connect to the Plain or Black Fixture Wire using wire nuts.
- Ground Wire: Connect the bare or green supply ground wire to the fixture ground wire or the green ground screw.
Safety information
- Always turn off the main power before touching any wires.
- Use tools with insulated handles.
- If replacing fuses, ensure hands and feet are dry.
- For indoor use only.
Practical help
Common problems
Fixture does not light up
Check all wire connections to ensure they are secure and properly matched (White to White, Black to Black). Verify the circuit breaker is turned on.
Fixture is unstable
Ensure the mounting plate is securely fastened to the junction box and the canopy is tightened against the ceiling.
Before use
- Turn off power at the circuit breaker
- Gather tools: Phillips screwdriver, wire stripper, pliers, safety goggles, electrical tape
- Ensure hands and feet are dry
- Verify all hardware listed in the manual is present
- Read all safety instructions
Show more Show less
Specs in practice
- 12 x Max 60W Candelabra Base
- The fixture requires 12 bulbs with a Candelabra base, each with a maximum wattage of 60W.
Images and diagrams

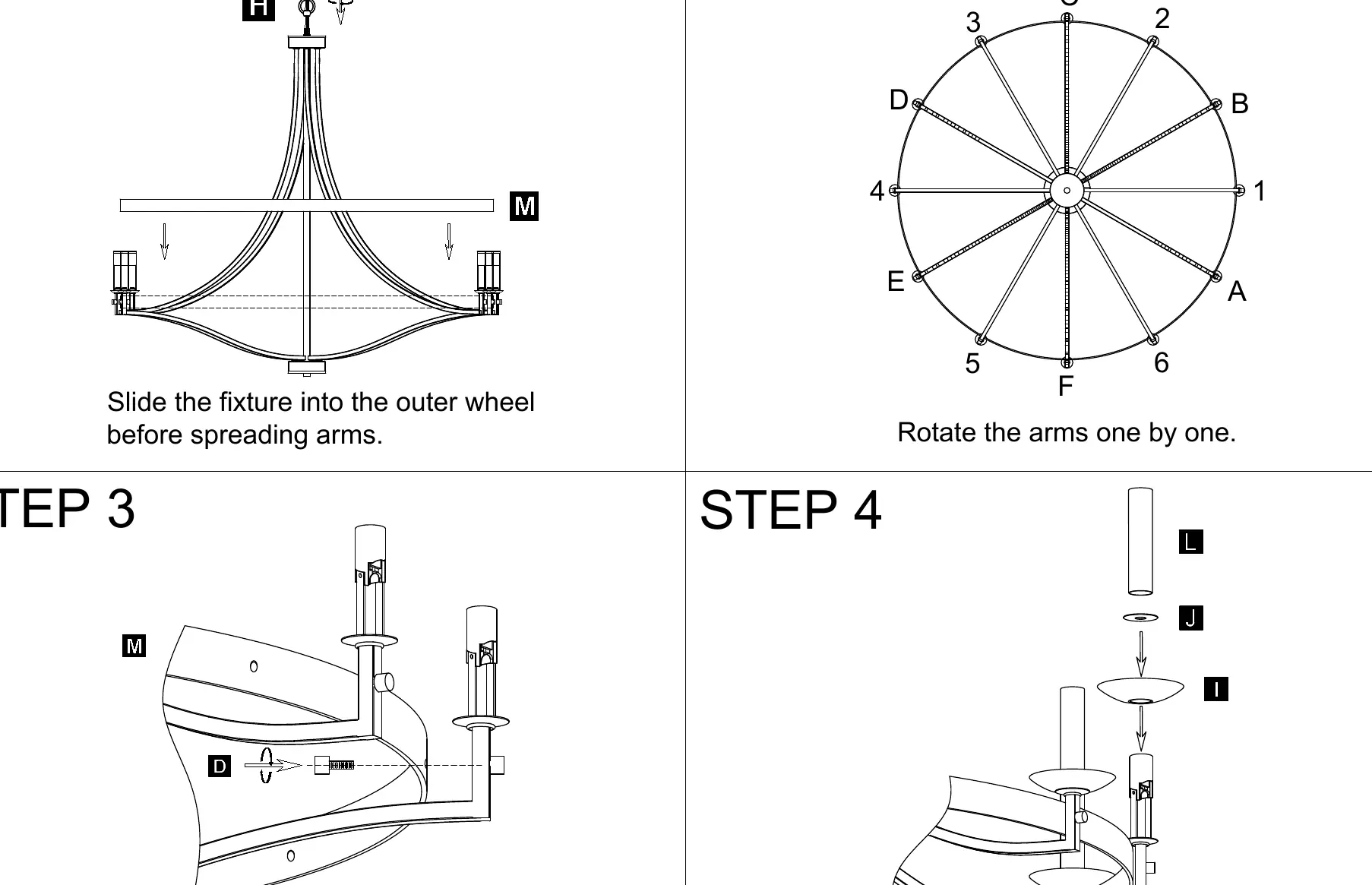

- Steps 1-4: Assembly of the chandelier body and arms.
- Steps 5-7: Mounting the fixture to the ceiling and connecting wires.
Model compatibility
- Requires a standard junction box for installation.
- For indoor use only.
