Installation Guide for Acroma 2080818AZ 18-Light Chandelier
A complete installation guide for the Acroma 2080818AZ 18-Light Chandelier. Includes safety warnings, hardware list, step-by-step assembly instructions, and wiring diagrams.
Quick answers from the manual
Quick answer
- This manual provides installation instructions for the Acroma 2080818AZ 18-Light Chandelier, including hardware lists, assembly steps, and wiring diagrams. p. 1, 2, 3, 4
Key actions
- Turn off power p. 1
- Connect wires p. 4
Problems and fixes
Electrical questions
Consult a qualified electrician.
p. 1Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Base | Candelabra | Socket type for bulbs | p. 1 |
Where to find it in the PDF
- Safety and Pre-Installation p. 1
- Hardware and Assembly p. 2
- Assembly Steps p. 3
- Wiring and Final Installation p. 4
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides instructions for the safe installation and assembly of the Acroma 2080818AZ 18-Light Chandelier. Before beginning, ensure the power is disconnected at the circuit breaker or fuse box. Always use tools with insulated handles and consult a qualified electrician if you have any electrical questions.
Hardware included
Before starting, verify that all parts are present:
- Mounting plate
- Support screws (x2)
- Outlet box screws (x2)
- Hex nuts (x2)
- Green ground screw
- Wire connectors (x3)
- Canopy
- Chain end loops (x10)
- Flat washers (x2)
- Finials (x2)
- Chain
- Socket sleeves (x18)
- Connector ring
Assembly instructions
The assembly process involves preparing the fixture, connecting the wiring, and mounting it to the ceiling.

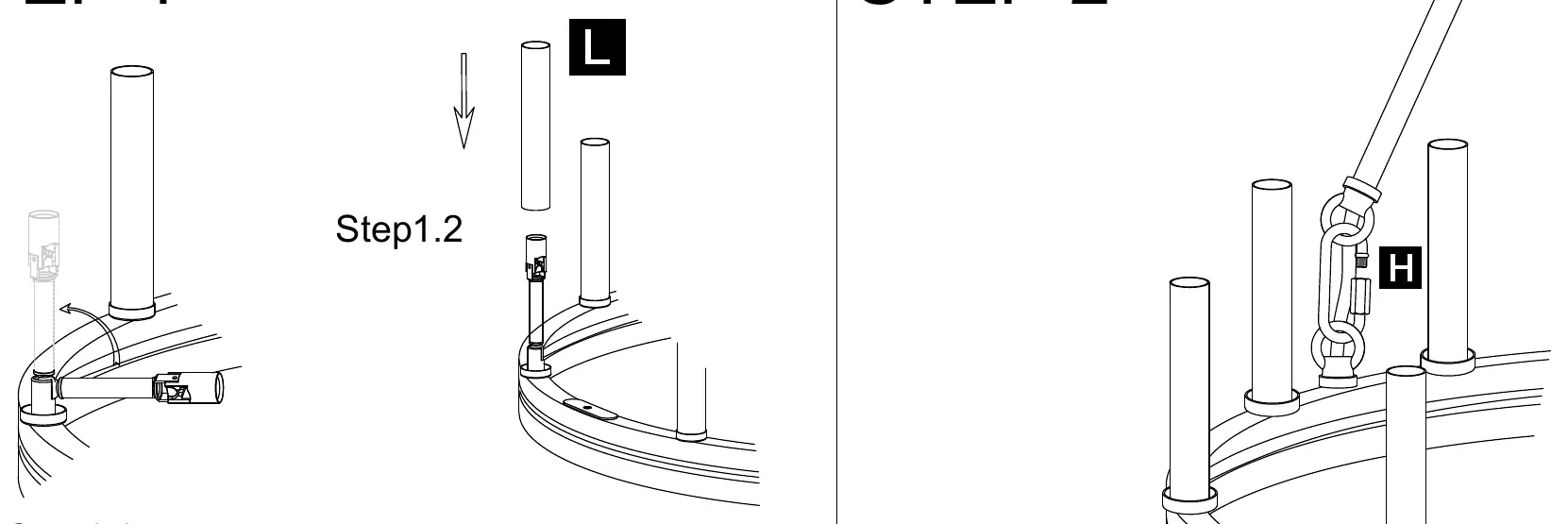

Step 1 and 2: Frame assembly
Attach the socket sleeves to the fixture. Use the chain end loops to connect the side hanging rods to the wheel and wiring chamber.

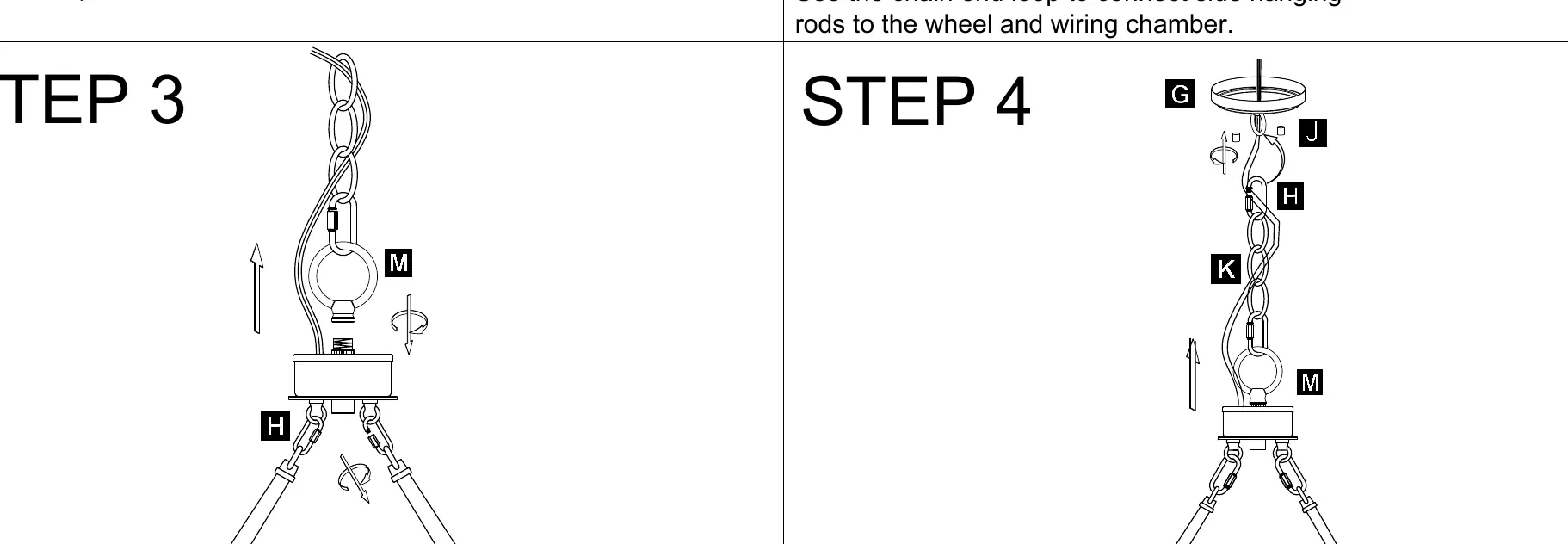

Step 3 and 4: Canopy and chain
Assemble the chain and canopy components. Secure the connector ring and finials to the canopy assembly.

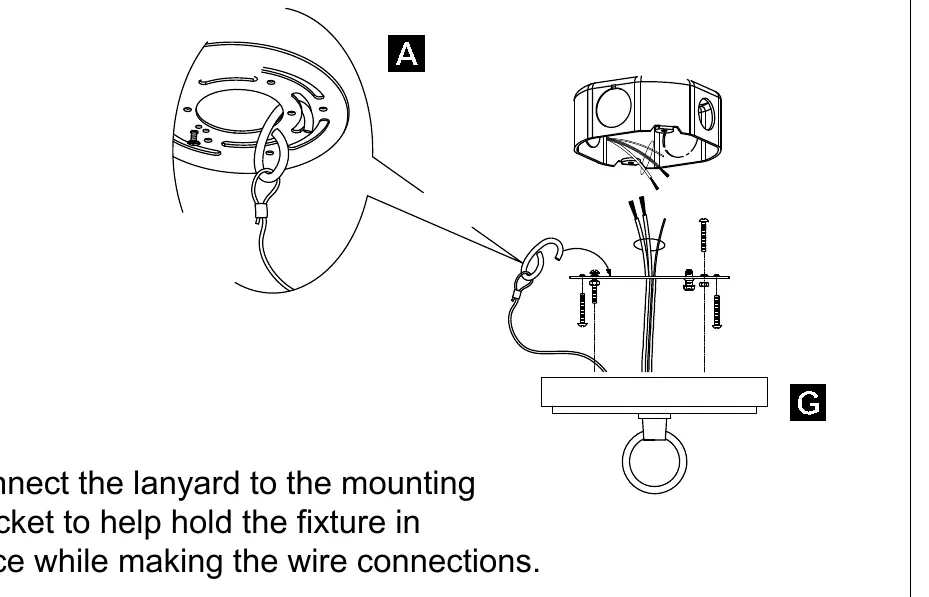

Step 5: Mounting
Attach the mounting plate to the junction box. Connect the safety lanyard to the mounting bracket to support the fixture while making electrical connections.

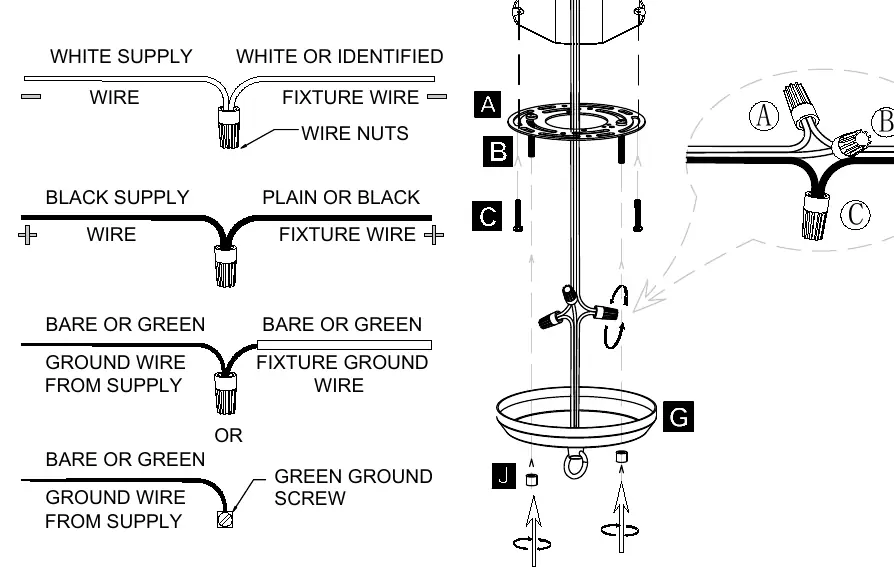

Step 6: Wiring
Connect the fixture wires to the supply wires using the provided wire connectors. Ensure the ground wire is properly connected to the green ground screw or the supply ground wire.
Safety information
Read all instructions before installing. To avoid damaging the product, place it on a soft, non-abrasive surface such as carpet or cardboard. Always use a voltage tester to ensure wires are not live before touching them.
Warranty
The product includes a one-year warranty covering defects in materials and workmanship under normal use. The warranty does not cover damage resulting from misuse, abuse, accidents, or faulty installation.
Practical help
Common problems
Fixture does not light up
Ensure the circuit breaker is on and the fuse is intact. Check that all wire connections are secure and properly matched.
Unsure about electrical connections
Consult a qualified electrician or local authorities for code requirements if you have any electrical questions.
Before use
- Turn off power at the circuit breaker or fuse box.
- Verify all hardware parts are present.
- Ensure you have a Phillips screwdriver, wire stripper, pliers, safety goggles, and electrical tape.
- Read all safety instructions provided in the manual.
- Place the fixture on a soft surface to prevent damage.
Show more Show less
Images and diagrams
- Steps 1-2: Assembling the frame and rods.
- Steps 3-4: Attaching the chain and canopy.
- Step 5: Mounting the fixture to the junction box.
- Step 6: Wiring connections.
Model compatibility
- Requires a standard junction box.
- Ensure the ceiling can support the weight of the fixture.
