This document provides essential instructions for setting up and operating the AcuRite 02005TBDI Weather Station. Key steps include matching the A-B-C switch on both the sensor and display unit, installing batteries, and allowing up to 4 hours for the initial weather forecast to generate.
Sensor Setup
The outdoor sensor requires 2 AA batteries. For temperatures below -4°F (-20°C), use lithium batteries instead of alkaline. Ensure the A-B-C switch inside the battery compartment matches the setting on the display unit to allow synchronization.
Display Unit Setup

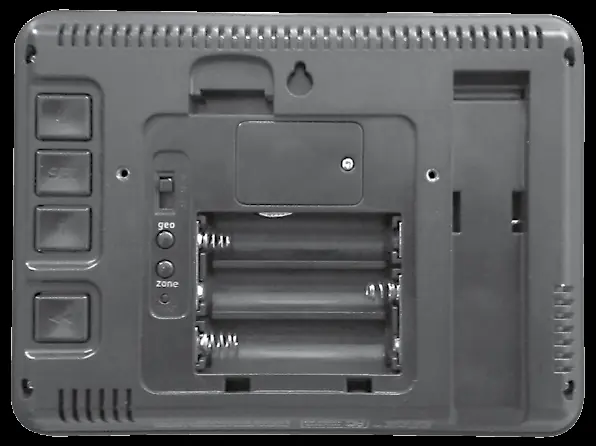

The display unit requires 3 AA alkaline batteries. Set the A-B-C switch to match the sensor. Use the buttons on the back to configure settings such as time zone, date, and temperature units. The device features an Intelli-Time clock that is pre-programmed and updates automatically for Daylight Saving Time.
Geographic Region
To ensure accurate precision forecasting, you must set your geographic region. Press the geo button in the battery compartment to select the region corresponding to your location on the provided map.
Placement Guidelines
- Place the display unit in a dry area, free of dust.
- Mount the outdoor sensor in a location protected from direct weather elements, 4 to 8 feet above the ground.
- Keep both units within 330 ft (100 m) of each other.
- Maintain a distance of at least 3 ft (0.9 m) from electronic devices to prevent interference.
Calibration
If the weather forecast is inaccurate, you can calibrate the moisture level in the forecast algorithm. Press and hold the up and down buttons for at least 3 seconds to enter calibration mode, then adjust as needed.
Troubleshooting
If the sensor signal is lost, ensure units are within range and away from interference. If the display is blank or malfunctioning, check battery installation or press the RESET button. Note that the forecast will be blank for the first 4 hours after battery installation.
Care and Maintenance
Clean both the display unit and the outdoor sensor with a soft, damp cloth. Avoid using caustic cleaners or abrasives. Regularly clean the display unit's ventilation ports with a gentle puff of air.
Manufacturer information
AcuRite
Practical help
Common problems
No outdoor sensor reception (no bars)
Relocate units within 330 ft (100 m) of each other, ensure they are at least 3 ft away from electronics, and check that the A-B-C switches match.
Outdoor temperature is flashing or showing dashes
Indicates wireless interference. Remove batteries from both units, ensure A-B-C switches match, reinstall batteries, and let them sit near each other for 20 minutes.
Inaccurate forecast
Ensure correct GEO region is set, verify time/date, and allow up to 14 days for pressure calibration. You may also calibrate the forecast manually.
Before use
- Remove protective film from the LCD screen.
- Set the A-B-C switch in the sensor battery compartment.
- Install 2 AA batteries in the sensor (lithium recommended for cold).
- Set the A-B-C switch in the display unit to match the sensor.
- Install 3 AA batteries in the display unit.
- Set your geographic region using the geo button.
- Set time zone and date preferences.
Specs in practice
- Temperature Range (Outdoor)
- -40°F to 158°F (-40°C to 70°C)
- Wireless Range
- 330 ft (100 m) depending on construction materials.
- Operating Frequency
- 433 MHz
- Data Reporting
- Outdoor data updates every 16 seconds; indoor data updates every 60 seconds.
Images and diagrams
- The A-B-C switch must be set to the same letter on both the sensor and the display unit for synchronization.
- The display unit features a kickstand for tabletop use and a keyhole for wall mounting.
- The Intelli-Time battery (CR2032) is located in a separate compartment on the back of the display unit.
Model compatibility
- Use only alkaline or lithium batteries; do not use heavy-duty or rechargeable batteries.
- For temperatures below -4°F (-20°C), lithium batteries are required for the outdoor sensor.
