AcuRite 02050CCDI / 440601 Weather Station Instruction Manual
Quick guide for the AcuRite 02050CCDI / 440601 weather station. Includes setup instructions, sensor placement, calibration, troubleshooting, and maintenance tips.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides setup and operational instructions for the AcuRite 02050CCDI / 440601 weather station. Key steps include matching the A-B-C switch on both the sensor and display unit, installing batteries, and allowing the unit to synchronize. The device features a self-calibrating weather forecast that requires a 14-day learning period to adjust to your specific location.
Sensor Setup
The outdoor sensor requires 2 AA batteries. For temperatures below -20°C (-4°F), lithium batteries are required. Ensure the A-B-C switch inside the battery compartment matches the setting on the display unit.
Display Unit Setup
The display unit is powered by a 5V power adapter (recommended) with 3 AA batteries as a backup. Set the A-B-C switch to match the sensor. The Intelli-Time clock is pre-programmed; you only need to select your time zone and daylight saving time preferences in the setup menu.
Calibration
You can manually calibrate temperature, humidity, and barometric pressure. To enter calibration mode, hold the ▲, Set, and ▼ buttons on the back of the display for 5 seconds. For barometric pressure, hold the Set button for 10 seconds to enter manual mode.
Placement Guidelines
For maximum accuracy, place the display unit in a dry area. The outdoor sensor should be placed 1 to 2 meters above the ground in a shaded area with good airflow. Keep both units within 100 meters (330 feet) of each other and at least 90 cm (3 feet) away from electronic devices to avoid interference.
Care and Maintenance
Clean both the display and sensor with a soft, damp cloth. Do not use caustic cleaners. Regularly clear dust from the display ventilation ports.
Manufacturer information
AcuRite
Practical help
Common problems
No outdoor sensor reception (no bars)
Ensure units are within 100m, away from electronics, and A-B-C switches match. Allow up to 20 minutes for synchronization.
Outdoor temperature flashing or showing dashes
Indicates wireless interference. Remove batteries from both units, ensure A-B-C switches match, and restart the connection process.
Inaccurate forecast
The unit requires a 14-day learning period to calibrate to your altitude. Allow the unit to run continuously for 33 days for full accuracy.
Before use
- Remove protective film from the LCD screen.
- Match A-B-C switch settings on both sensor and display.
- Install 2 AA batteries in the sensor (lithium for cold weather).
- Plug in the power adapter for the display unit.
- Install 3 AA backup batteries in the display unit.
- Set time zone and DST preferences in the setup menu.
Specs in practice
- Wireless Range
- Up to 100 meters (330 feet) depending on home construction materials.
- Operating Frequency
- 433 MHz for wireless communication between units.
- Data Reporting
- Outdoor data updates every 16 seconds; indoor data updates every 60 seconds.
Images and diagrams
- The A-B-C switch must be set to the same letter on both the sensor and the display unit to ensure synchronization.

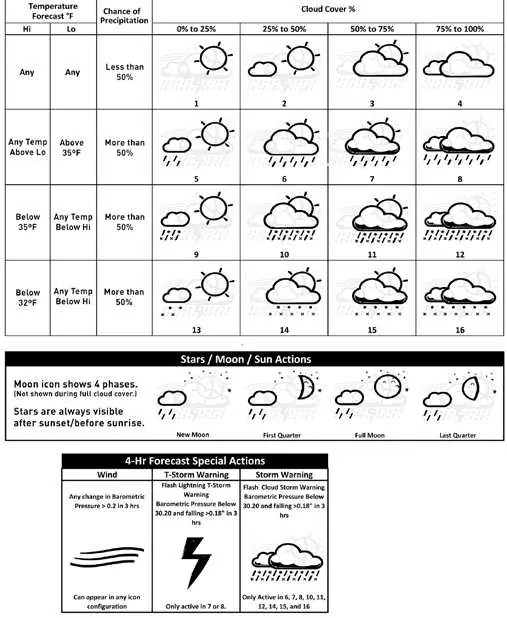

- The Learning Mode icon will disappear after 14 days once the unit has calibrated to your local barometric pressure.
- The Intelli-Time battery (CR2032) stores time and date settings during power outages.
Model compatibility
- Use lithium batteries in the outdoor sensor for temperatures below -20°C (-4°F).
- Do not use rechargeable batteries in either the sensor or the display unit.
