This document provides instructions for setting up and operating the AcuRite 02407SBL Weather Station. Key steps include matching the A-B-C switch on both the sensor and display, installing batteries, and allowing the system to synchronize. The device features a self-calibrating weather forecast that requires up to 33 days for full accuracy.
Sensor Setup
The outdoor sensor requires 2 AA alkaline batteries. Before installation, ensure the A-B-C switch inside the battery compartment matches the setting on the display unit to allow for synchronization.
Display Setup

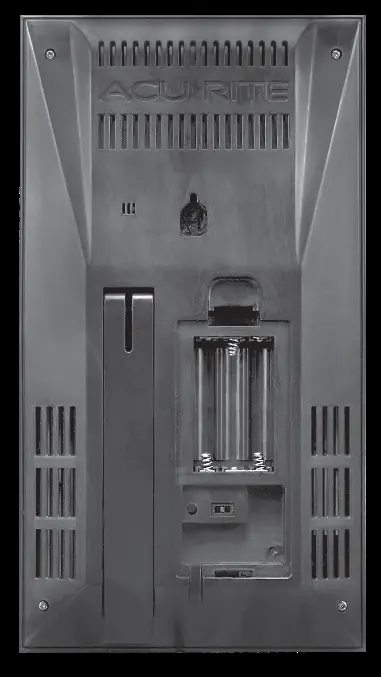

The display can be powered by the included power adapter (recommended for full functionality) and 3 AAA batteries (optional, for backup). Ensure the A-B-C switch on the back of the display matches the sensor's setting.
Settings and Calibration
To set the time, date, and units, press the gear button to enter SET MODE. Use the arrow buttons to adjust values. The device also supports calibration for temperature, humidity, and barometric pressure. To enter calibration mode, press and hold the arrow and gear buttons simultaneously for 5 seconds.
Placement Guidelines
For maximum accuracy, place the display in a dry area and the sensor outside in a shaded, well-ventilated location. Keep both units within 330 ft (100 m) of each other and at least 3 ft (90 cm) away from electronic devices that may cause interference.
Care and Maintenance
Clean the display and sensor with a soft, damp cloth. Avoid caustic cleaners or abrasives. Keep ventilation ports on the display clear of dust.
Manufacturer information
AcuRite
Practical help
Common problems
No outdoor sensor reception
Relocate units within 330 ft (100 m), ensure they are 3 ft away from electronics, and verify battery type (use alkaline, not heavy-duty).
Outdoor temperature flashing or showing dashes
Indicates wireless interference. Remove batteries from both units, ensure A-B-C switches match, reinstall batteries, and place units near each other for a few minutes.

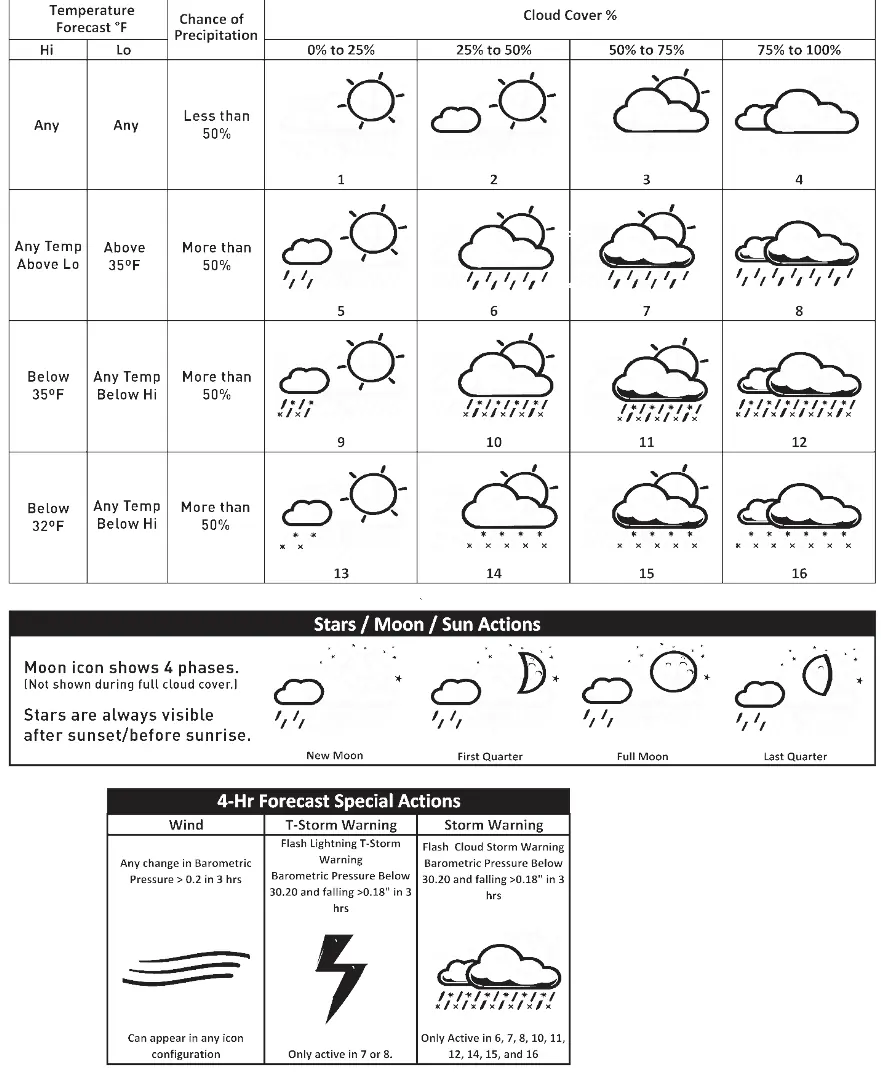

Inaccurate forecast
The unit requires a 33-day learning period for full accuracy. Do not reset the unit during this time.
Before use
- Remove protective film from the LCD screen.
- Set A-B-C switches on both sensor and display to the same letter.
- Install 2 AA batteries in the sensor.
- Install 3 AAA batteries in the display (optional backup).
- Plug in the power adapter for the display.
- Place units within 330 ft (100 m) of each other.
Specs in practice
- Wireless Range
- Maximum distance of 330 ft (100 m) between sensor and display, depending on obstacles.
- Operating Frequency
- 433 MHz wireless signal.
- Data Reporting
- Outdoor data updates every 16 seconds; indoor data updates every 60 seconds.
Images and diagrams
- A-B-C Switch: Must be set to the same letter (A, B, or C) on both the sensor and display to ensure synchronization.
- Auto Dim Mode: Automatically adjusts brightness based on time (100% from 6:00 a.m. to 9:00 p.m., 15% from 9:01 p.m. to 5:59 a.m.).
Model compatibility
- Use only alkaline or lithium batteries; heavy-duty or rechargeable batteries are not recommended.
- Lithium batteries are recommended for the outdoor sensor when temperatures drop below -4°F (-20°C).
