User Manual for AMC CSUB Compact Active Subwoofer

Quick guide from the manual

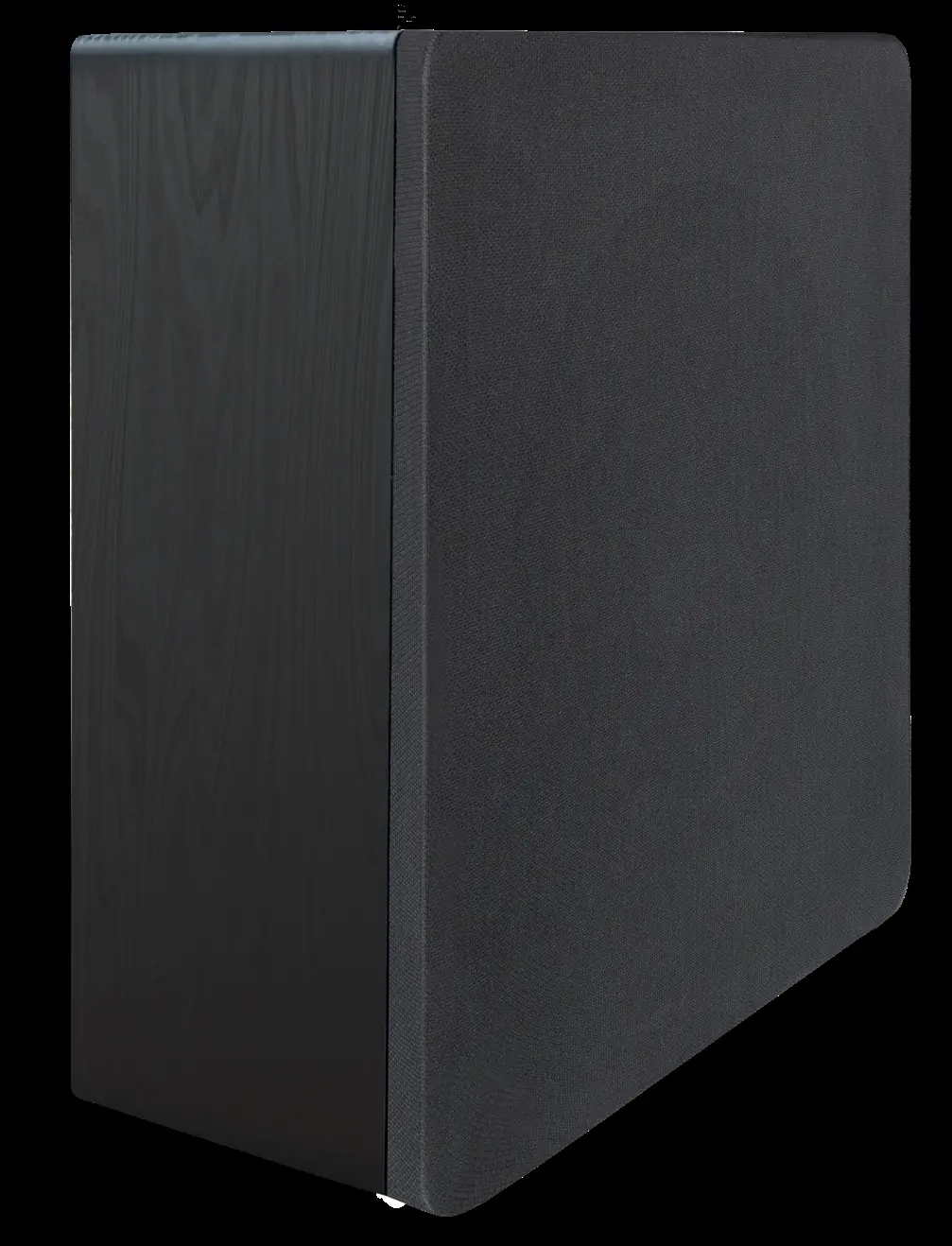

The AMC CSUB is a compact active subwoofer designed for home or public address systems. It features a 10-inch low-frequency driver and a 200W Class-D amplifier. The unit includes versatile input options, including RCA line-level and 100V level inputs, along with adjustable DSP-based crossover and phase controls.

Safety instructions

• Grounding: This is a Class I construction device and must be connected to a power outlet with a protective grounding connection.
• Environment: Do not use near water (bathtubs, sinks, swimming pools) or heat sources (radiators, vents).
• Hearing Safety: This product can produce high sound levels; avoid prolonged operation at high volumes to prevent hearing loss.
• Service: Do not remove the cover. Servicing should only be performed by qualified personnel.
• Power: Unplug the power cord to disconnect from the grid. Ensure the power outlet is easily accessible.

Features

• Ready to pick up audio from 100 V lines.
• DSP-based EQ correction.
• Built-in audio limiter.
• Standby mode with auto-detection.
• Class-D amplifier and switching power supply.
• Compact cabinet with 10-inch woofer.

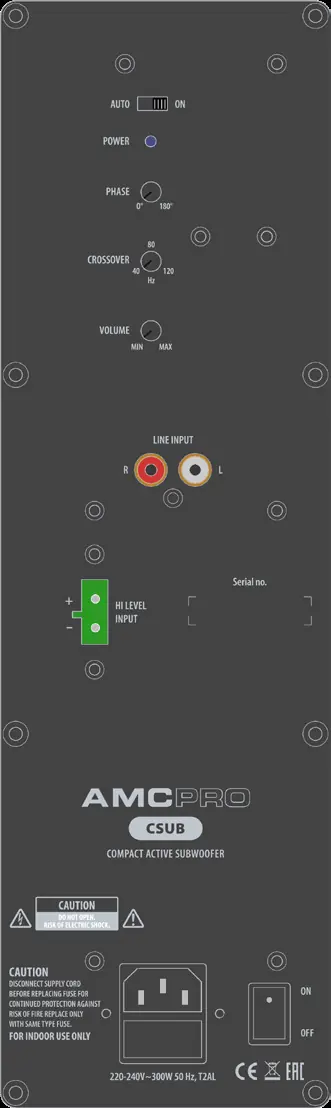

Rear panel controls

The rear panel contains the following controls and connections:

• Power mode switch: Selects between AUTO (standby after 20 mins of no signal) and ON (always active).
• LED power indicator: Red indicates standby; Green indicates active.
• Phase degree selector: Adjusts audio signal phase (0° – 180°).
• Crossover frequency selector: Adjusts the DSP low-pass filter (40 – 120 Hz).
• Volume control: Adjusts the output level.
• Line level input: RCA-type input for line-level signals.
• 100 V level input: For direct connection to 100V background music lines.
• Power button: Main power switch.

Operation

Power Mode: In AUTO mode, the subwoofer enters standby if no audio signal is detected for 20 minutes. It takes approximately 5 seconds to wake up from standby. Set the switch to ON to keep the power supply active at all times.

Input Connections: The subwoofer features two audio inputs linked to different DSP settings. Important: Do not use RCA and Hi-level inputs at the same time to prevent EQ correction switching issues.

Phase and Crossover: It is recommended to start with the phase at 0° and adjust as necessary for the best bass performance in your listening environment. The crossover can be tuned to match your main speakers.

Technical specifications

The following specifications apply to the CSUB model:

• Rated output power: 200 W
• Max power consumption: 300 W
• Frequency Response: 35 Hz - 150 Hz
• Crossover point: 40 Hz - 120 Hz
• Inputs: 1 x Stereo RCA, 1 x Mono hi-level input
• Dimensions: 44 x 430 x 245 mm
• Weight: 10.6 kg
