JBL Control 23-1L Speaker Installation and Specification Guide
A comprehensive guide for the JBL Control 23-1L indoor/outdoor speaker, covering installation using the InvisiBall system, technical specifications, wiring instructions, and accessory compatibility.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The JBL Control 23-1L is a compact, two-way indoor/outdoor speaker designed for background or foreground music and paging. It features the proprietary InvisiBall mounting system for flexible positioning and is rated IP-44 for weather resistance, which can be upgraded to IP-55 with optional accessories. This guide provides essential information on mounting, wiring, and technical specifications.

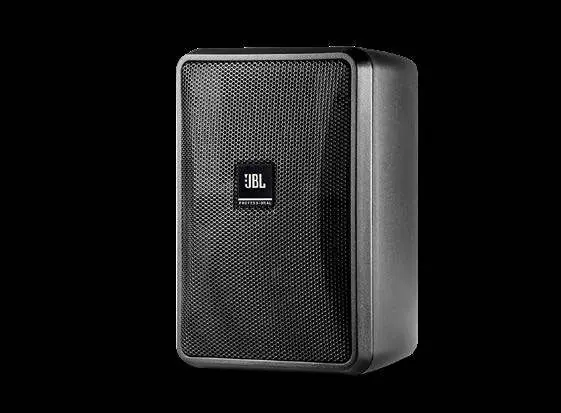

Product Overview
The Control 23-1L is built for durability and high-fidelity sound. Key components include a 3-inch woofer with a woven fiberglass cone and a 1/2-inch PEI diaphragm tweeter with fluid cooling. The enclosure is made of high-impact polystyrene (HIPS) and is available in black or white.
Installation
The speaker includes the InvisiBall wall-mounting system, which allows for significant vertical and horizontal rotation. Adjustments are made through a hidden access point behind the logo badge, meaning the grille does not need to be removed for installation or adjustment.
- Mounting: Use the included InvisiBall system for wall mounting.
- Optional Brackets: For alternative mounting, the speaker features integrated M6 mounting points compatible with the optional MTC-23UB-1 U-bracket.
- Safety: A secondary safety attachment loop point is located on the back panel.
Connections
The speaker utilizes a weather-capable screw-down terminal strip for audio input.
- Wire Compatibility: Accepts bare wire up to 12 AWG (2.5 mm²) or open lugs (#6, #8, or #10).
- Protection: For enhanced weather protection, optional MTC-PC2 or MTC-PC3 panel covers can be installed to provide a water-tight sealed gland-nut entrance.
Environmental Protection
The speaker is IP-44 rated per IEC529. To achieve an IP-55 rating, you must install the optional MTC-23WMG-1 WeatherMax grille along with either the MTC-PC2 or MTC-PC3 panel cover. The unit exceeds MilSpec 810 standards for humidity, salt spray, temperature, and UV exposure.
Technical Specifications
- Power Handling: 50W continuous pink noise (100W program).
- Frequency Range: 70 Hz – 20 kHz (-10 dB).
- Nominal Impedance: 8 ohms.
- Sensitivity: 86 dB (1W/1m).
- Max SPL: 103 dB average continuous pink noise.
- Dimensions: 200 x 141 x 111 mm (7.9 x 5.6 x 4.4 in).
- Weight: 1.6 kg (3.4 lbs).
Optional Accessories
- MTC-23UB-1: Yolk-type U-bracket.
- MTC-23WMG-1: WeatherMax grille with backing.
- MTC-PC2 / MTC-PC3: Protective panel covers.
- MTC-23CM: Ceiling-Mount InvisiBall adapter.
Manufacturer information
JBL
Practical help
Common problems
Speaker is exposed to heavy driving rain or harsh environments
Install the optional MTC-23WMG-1 WeatherMax grille and MTC-PC2 or MTC-PC3 panel covers to upgrade the unit to IP-55 rating.
Need to mount the speaker on a ceiling
Use the optional MTC-23CM Ceiling-Mount InvisiBall adapter.
Before use
- Verify that your amplifier is compatible with an 8-ohm load.
- Ensure the mounting surface can support the 1.6 kg weight of the speaker.
- Check that your speaker wire is between 12 AWG and the terminal lug size limits.
- Decide if optional weather protection covers are required for your specific installation environment.
Show more Show less
Specs in practice
- Power Rating
- 50W continuous pink noise rating; 100W program power.
- Nominal Impedance
- 8 ohms; ensure your amplifier is rated for this impedance.
- Coverage Angle
- 100° x 100° dispersion pattern.
Images and diagrams

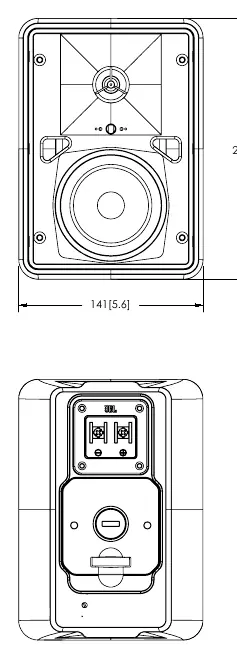

- Mounting dimensions diagram shows the speaker height (200mm) and width (141mm).
- Frequency response chart shows performance from 20Hz to 20kHz.
Model compatibility
- Compatible with MTC-23UB-1 U-bracket.
- Compatible with MTC-23WMG-1 WeatherMax grille.
- Compatible with MTC-PC2 and MTC-PC3 panel covers.
- Compatible with MTC-23CM Ceiling-Mount adapter.
