User Manual for Anko 1.2M Light Up Tinsel Tree
Quick guide for assembling and safely operating the Anko 1.2M Light Up Tinsel Tree. Includes step-by-step assembly instructions, safety precautions for the LED light chain, and adaptor installation guidelines.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides instructions for the assembly and safe operation of the Anko 1.2M Light Up Tinsel Tree. The product is designed for indoor use only and features non-replaceable LED bulbs. Ensure you read all safety instructions before use and retain the packaging for future storage.
Assembly instructions
- Choose a location for the tree and ensure it is placed on a flat, level surface.
- Unpack all components: Part A (legs), Part B (tree section), Part C (base pole), and Part D (remaining poles).
- Insert the tree base pole (Part C) into the base and slide each leg (Part A) upward into the corresponding slots.
- Insert the remaining poles (Part D) into the base pole (Part C) one by one, pushing them down into position.
- Hold the tree vertically and place the tree section (Part B) at the top of the pole (Part D).
- Allow the tree to fall around the pole to form the shape. Ensure the poles (Part D) pass through all the supporting rings at the middle of each tree layer (Part B).
Safety instructions
Important: This light chain is for indoor use only and is not designed for permanent or long-term use.
- Do not connect this light chain electrically to another light chain.
- Do not connect the light chain to the power supply while it is still in the packaging.
- Do not attempt to replace the non-replaceable bulbs.
- Keep the light set away from heat sources or flames.
- Always switch off or unplug the adaptor when the tree is unattended.
- Do not overload power sockets or extension leads.
- If any part of the light set or cable is damaged, the entire set must be discarded.
AC/DC adaptor warnings
The supplied adaptor (Model: JT-DC31V3.6W-E4) is for use with LED lighting equipment only.
- Do not cover: The power supply must not be covered or abutted against any material.
- Clearance: Maintain a minimum clearance distance of 10mm from the top and sides of the control gear to any normally flammable building element.
- Installation: The adaptor must be installed indoors, away from weather.
- Maintenance: Do not open the cover of the equipment.
Manufacturer information
Anko
Practical help
Common problems
Tree is unstable
Ensure the tree is placed on a flat, level surface and that all legs (Part A) are fully inserted into the base slots.
Light chain not working
Check that the adaptor is securely plugged into a power outlet and that the connection to the light chain is intact.
Before use
- Check all parts against the parts list (A, B, C, D) before assembly.
- Ensure the assembly location is flat and level.
- Verify the adaptor is suitable for indoor use.
- Inspect the cable and light set for any damage before plugging in.
Specs in practice
- Model: JT-DC31V3.6W-E4
- The specific model of the supplied power adaptor.
- 10mm Clearance
- The minimum distance required between the LED driver and any flammable building materials.
Images and diagrams

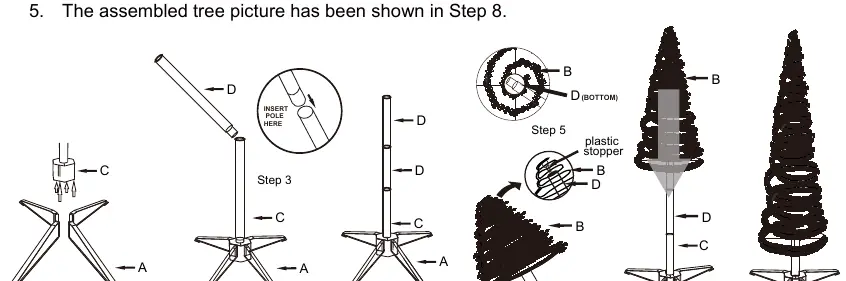

- The assembly diagram illustrates the sequence of inserting legs into the base and stacking the poles.
- The 'Do Not Cover' diagram shows the required 10mm clearance (A=B=C=Min. 10mm) from flammable building elements.
Model compatibility
- Indoor use only.
- Not for permanent or long-term use.
- Do not connect to other light chains.
