User Manual for Anko 10000mAh Power Bank

Quick Guide

This power bank is designed to charge mobile phones, tablets, and other devices. It features a 10000mAh capacity and a total output of 20W. To maintain battery health, ensure you recharge the unit at least once every 3 months. Do not charge the power bank and your device simultaneously.

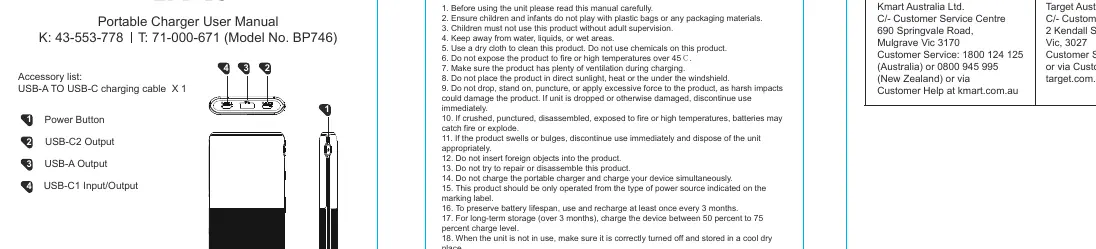

Device Overview

The power bank includes the following ports and controls:

• Power Button: Used to activate the power bank.
• USB-A Output: Standard port for charging mobile phones and tablets.
• USB-C1 Input/Output: Dual-purpose port used for charging the power bank itself or charging your devices.
• USB-C2 Output: Dedicated output port for charging devices.

Charging Instructions

Charging your devices:

• Connect your device to the USB-A, USB-C1, or USB-C2 port using a compatible charging cable.
• Note: You may need to purchase a separate Type-C cable for devices requiring USB-C input.

Charging the power bank:

• Use the USB-C1 port to connect the power bank to a power adapter (not included).
• The power bank will charge via this port.

Safety Information

• Keep the product away from water, liquids, and wet areas.
• Do not expose the product to fire or temperatures exceeding 45°C.
• Do not drop, puncture, or apply excessive force to the product.
• If the product swells, bulges, or is damaged, discontinue use immediately.
• Do not attempt to disassemble or repair the unit.
• For long-term storage (over 3 months), charge the device to between 50% and 75% capacity.

Technical Specifications

• Battery Capacity: 10000mAh (37Wh)
• Battery Type: Lithium polymer
• Total Output: 20W
• Charging Time: Approximately 3.5 hours
• Input (USB-C1): 5V 3A, 9V 2A
• Output (USB-A): 5V 3A, 9V 2A, 12V 1.5A
• Output (USB-C1): 5V 3A, 9V 2.22A, 12V 1.67A
• Output (USB-C2): 5V 3A, 9V 2A, 12V 1.5A

Warranty

This product comes with a 12-month warranty covering defects in materials and workmanship. Please retain your receipt as proof of purchase. For warranty claims or assistance, contact the customer service center for the retailer where you purchased the product (Kmart or Target).
