Assembly Instructions for Anrex DIESEL 1D1S and 2D1S Cupboards
Comprehensive assembly and maintenance guide for the Anrex DIESEL 1D1S and 2D1S open cupboards. Includes parts lists, step-by-step assembly diagrams, safety warnings, and warranty information.
Quick answers from the manual
Quick answer
- This document provides assembly instructions and safety guidelines for the Anrex DIESEL 1D1S and 2D1S cupboards. p. 1, 2
Key actions
- Assemble the cupboard p. 3, 4
- Tighten screw connections p. 2
Maintenance and reset
- Periodically tighten screw connections and clean with a slightly damp soft cloth. p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Warranty | 24 months | Manufacturer warranty period from date of sale. | p. 1, 2 |
| Product Lifetime | 5 years | Expected service life of the furniture. | p. 1, 2 |
Where to find it in the PDF
- General Information and Safety p. 1, 2
- Parts List and Hardware p. 3
- Assembly Diagrams p. 4
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides assembly instructions for the Anrex DIESEL 1D1S and 2D1S cupboards. It includes safety warnings, maintenance tips, and a detailed parts list to ensure correct installation and long-term use.
Safety and Usage
- Installation: Do not install near heating devices or on damp walls. Ensure room humidity is below 70%.
- Temperature: Do not expose furniture elements to temperatures above +40°C.
- Usage: Do not step on horizontal shelves or windows during assembly or use.
- Cleaning: Do not use chemical cleaners. Dust with a slightly damp soft cloth.
- Moving: Remove all items from the unit and lift it to move; do not drag to avoid damaging supports.
Assembly
Assembly should be performed by qualified personnel. Follow the diagrams provided on pages 3 and 4. Ensure all screw connections are tightened during assembly and periodically checked during use.
Maintenance
To maintain the product, periodically tighten all screw connections. Keep the instruction manual for future reassembly or in case of warranty claims.
Warranty
The manufacturer provides a 24-month warranty from the date of sale, provided that the operating rules have not been violated. Claims should be made to the trading organization where the furniture was purchased, presenting the instruction manual and a copy of the sales receipt.
Practical help
Common problems
Loose screw connections
Periodically tighten all screw connections during the service life of the product.
Moving the furniture
Remove all items from the unit and lift it to prevent damage to the supports.
Before use
- Check the quality and completeness of the product upon purchase.
- Ensure the installation area is not near heating devices or damp walls.
- Verify room humidity is below 70%.
- Ensure you have the necessary tools for assembly.
- Keep the instruction manual for future reference.
Specs in practice
- Warranty Period
- 24 months from the date of sale.
- Product Lifetime
- 5 years.
- Max Temperature
- Do not expose to temperatures higher than +40°C.
Images and diagrams

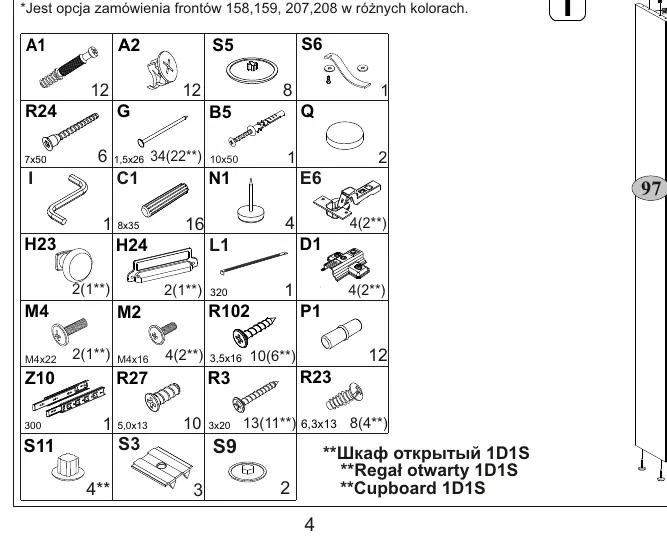

- Page 3 contains the parts list and hardware identification table.

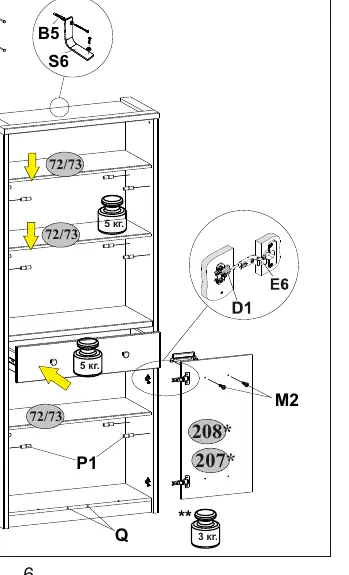

- Page 4 illustrates the assembly sequence (steps III and IV).
Model compatibility

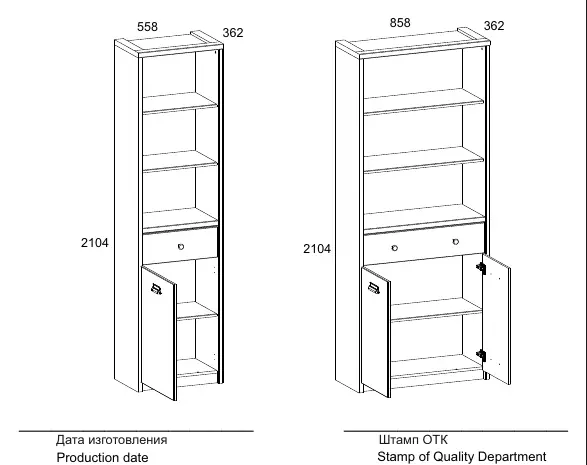

- The manual covers both 1D1S and 2D1S models within the DIESEL collection.
- Fronts for models 158, 159, 207, and 208 may be ordered in various colors.
