Avantco 194SQRCGF Countertop Glass Froster/Chiller User Manual

Quick guide for the Avantco 194SQRCGF Countertop Glass Froster/Chiller. Learn how to set up, operate, replace the CO2 cylinder, and troubleshoot common issues.

Quick answers from the manual

Quick answer

  • The Avantco 194SQRCGF is a countertop glass froster that uses liquid CO2. Setup involves connecting the CO2 tank, ensuring no leaks, and powering the unit. If frosting time exceeds 10 seconds, the CO2 cylinder needs replacement. p. 2

Key actions

  • Connect CO2 tank and check for leaks. p. 2
  • Replace CO2 cylinder when frosting time exceeds 10 seconds. p. 2

First start

  • Connect the glass froster to the CO2 tank, open the tank slowly, connect power, turn on the machine, and press the blue button. p. 2

Problems and fixes

Long frosting time

Replace the CO2 tank with a full tank.

p. 3
Not frosting at all

Replace the CO2 tank with a full tank.

p. 3

Where to find it in the PDF

  • Setup and Operation p. 2
  • Troubleshooting p. 3
Table of contents

Manual images

Click an image to enlarge
Avantco Countertop Glass Froster/Chiller Page 1 CO2 tank with siphon tube Page 3

Quick guide from the manual

The Avantco 194SQRCGF is a countertop glass froster designed to chill glassware quickly using liquid CO2. This manual covers the essential setup, operation, and maintenance procedures required to keep the equipment functional. Key requirements include using a CO2 tank with a siphon tube and ensuring the installation area is well-ventilated.

Avantco Countertop Glass Froster/Chiller
Avantco Countertop Glass Froster/Chiller

Safety warnings

  • Gas Type: This product works with liquid CO2 only. Do not use other compressed gas cylinders with high-pressure or non-liquid CO2.
  • Tank Requirements: A liquid CO2 cylinder with a siphon tube is recommended. If using a non-liquid CO2 cylinder, the tank must be inverted (turned upside down).
  • Ventilation: Install the product in a well-ventilated area to assist in venting excess CO2.

Setup and operation

  1. Connect the glass froster to the CO2 tank and verify there are no gas leaks.
  2. Slowly open the CO2 tank valve to ensure no leaks in the system, then fully open the tank.
  3. Connect the glass froster to the power supply.
  4. Press the blue-red button to turn on the machine.
  5. Prepare the glasses.
  6. Press the blue button to ensure the equipment is operational.

Replacing the CO2 cylinder

If the frosting time exceeds 10 seconds, it indicates that the CO2 cylinder needs to be changed.

  1. Close the shut-off valve of the CO2 cylinder.
  2. Press the blue button on the glass froster until all excess pressure is released.
  3. Loosen the nut on the CO2 cylinder and remove the cylinder.
  4. Replace it with a full CO2 cylinder.
  5. Place the steel wire for the connection hose around the CO2 tank.
  6. Add rubber seal rings to the inside of the connection hose nut, then connect it to the CO2 tank.
  7. Tighten using your hands, then use a wrench to tighten. Note: Do not overtighten.
  8. Slowly open the CO2 tank, ensuring no leaks in the system, then fully open the tank.
  9. Press the blue button to ensure the equipment is operational.

Troubleshooting

If you encounter issues with the unit, refer to the following solutions:

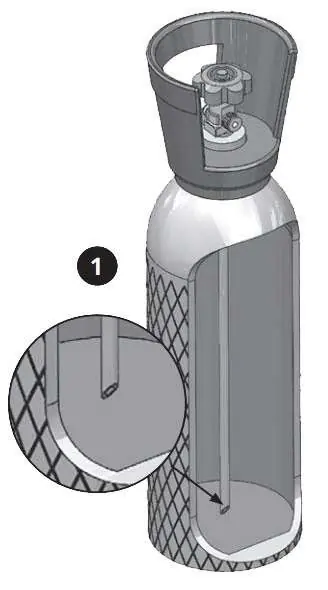

CO2 tank with siphon tube
CO2 tank with siphon tube
  • Long frosting time: Replace the CO2 tank with a full tank.
  • Not frosting at all: Replace the CO2 tank with a full tank.

Manufacturer information

Avantco Equipment

Brand profile
Manufacturer website https://www.avantco.com Support https://www.avantco.com/support

Practical help

Common problems

Long frosting time

Replace the CO2 tank with a full tank.

Not frosting at all

Replace the CO2 tank with a full tank.

Before use

  • Ensure the installation area is well-ventilated.
  • Verify the CO2 tank contains liquid CO2.
  • Ensure the CO2 tank is equipped with a siphon tube (or invert the tank if it is not).
  • Check all connections for gas leaks before full operation.
  • Ensure the power supply is connected.

Images and diagrams

  • The CO2 tank must be equipped with a siphon tube to deliver liquid CO2 effectively to the froster.

Model compatibility

  • Requires liquid CO2 only.
  • Do not use high-pressure or non-liquid CO2 cylinders without inverting the tank.
