User Manual for Avantco Modular Ice Machine and Hotel Ice Dispenser
Comprehensive user guide for Avantco modular ice machines and hotel ice dispensers. Includes installation, operation, cleaning, maintenance, and troubleshooting steps.
Quick answers from the manual
Quick answer
- This manual covers the installation, operation, and maintenance of Avantco modular ice machines and hotel ice dispensers. It includes safety warnings regarding flammable refrigerants, troubleshooting fault codes, and cleaning procedures. p. 1, 2
Key actions
- Clean and sanitize the ice machine p. 14, 15, 16, 17
- Adjust ice thickness p. 11
First start
- Ensure the machine is leveled, water line is connected, and power is supplied. Turn on the power switch. p. 9, 10
Problems and fixes
E04 High Temperature
Clean condenser, check high pressure switch wires.
p. 12, 19
E06 High Pressure
Check fan, check high pressure switch wires.
p. 12, 19Error codes

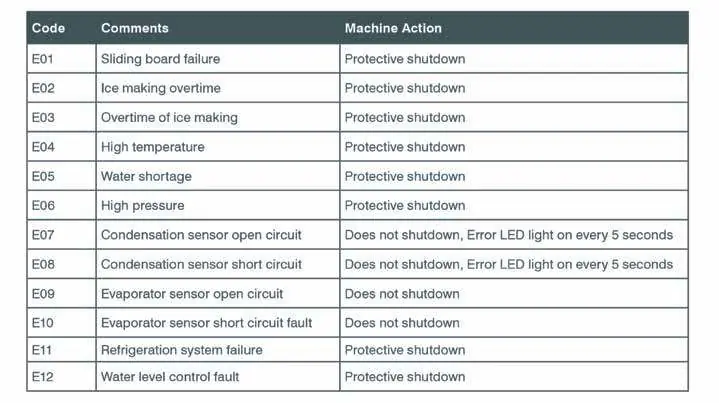

| Code | Meaning | Action | Pages |
|---|---|---|---|
| E01 | Water curtain or ice full switch fault | Protective shutdown | p. 12 |
| E04 | High temperature | Protective shutdown | p. 12 |
| E06 | High pressure | Protective shutdown | p. 12 |
Maintenance and reset
- Hold the cleaning button for 3 seconds to enter the cleaning process. p. 12, 15
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Water Pressure | 18.75 - 80 psi | Required water pressure range. | p. 7, 18 |
Where to find it in the PDF
- Modular Ice Machine Manual p. 1, 20
- Hotel Ice Dispenser Manual p. 21, 36
- Warranty p. 37, 39
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential instructions for the installation, operation, and maintenance of Avantco modular ice machines and hotel ice dispensers. Important: This equipment uses flammable refrigerant and must be repaired only by trained service personnel. Ensure the machine is installed in a controlled indoor environment, properly leveled, and connected to a grounded power supply and potable water source. Regular cleaning and sanitizing are required to maintain performance and warranty coverage.
Installation
Proper installation is critical for the safe and efficient operation of the ice machine.
- Site Requirements: Install indoors in a controlled environment (40-90°F). Ensure sufficient ventilation: 12" front, 6" sides, 8" rear.
- Plumbing: Connect to potable water (18.75-80 psi). Ensure proper floor drainage is provided.
- Electrical: Use a dedicated, grounded outlet with leakage protection. Do not use extension cords.
- Assembly: For hotel dispensers, place the ice machine on the dispenser and secure it using the provided hardware kit.
Operation
The ice machine operates automatically once installed and powered on.
- Startup: Ensure all packaging tape is removed, the bin is empty, and the water valve is open. Turn on the power switch.
- Control Panel: Use the LED display to monitor status (e.g., "ini" for self-check, "CLE" for cleaning).
- Ice Thickness: During the ice-making process, press the "-" button for 3 seconds, then use "+" or "-" to adjust thickness.
Maintenance and Cleaning
Regular maintenance is essential for food safety and machine longevity.
- Cleaning Schedule: Clean and sanitize the ice bin every 90 days. Clean the condenser every 3 weeks.
- Water Filter: Replace the filter cartridge every 3 to 6 months.
- Cleaning Procedure: Use the "Clean" function by holding the button for 3 seconds. Use only nickel-safe cleaning and sanitizing chemicals.
- Winterizing: If not in use for an extended period, turn off water and power, and drain all residual water from the system.
Troubleshooting
If the machine malfunctions, check the following before calling for service:
- No Ice: Check power, water supply, and vend switch operation.
- Water Leaks: Inspect drain lines for blockages and ensure the ice catch pan is not overfilled.
- Fault Codes: The display will show codes (e.g., E04 for high temperature, E06 for high pressure) to indicate specific issues. Refer to the fault code table in the manual for corrective actions.
Manufacturer information
Avantco Equipment
Practical help
Common problems
No ice is dispensed
Check for power, ensure the ice machine is running, check the vend switch, and ensure the chute is not blocked.
Water leak
Check drain line for blockages, ensure the ice catch pan is not overfilled, and check the seal between the ice machine and dispenser.
E04 High Temperature fault
Clean the condenser and check high pressure switch wires.
E06 High Pressure fault
Check fan operation and check high pressure switch wires.
Before use
- Remove all packaging tape inside the machine.
- Ensure the machine is on a leveled floor.
- Connect water supply and ensure the valve is open.
- Verify power supply meets nameplate requirements.
- Sanitize the ice bin before first use.
Specs in practice
- Water Pressure
- 18.75 psi to 80 psi required for proper operation.
- Ambient Temperature
- 40-90°F (41-95°F for some models) for optimal performance.
- Filter Replacement
- Replace filter cartridge every 3 to 6 months.
Images and diagrams
- Schematic diagram shows water inlet, drain pipe, and power cord connections.

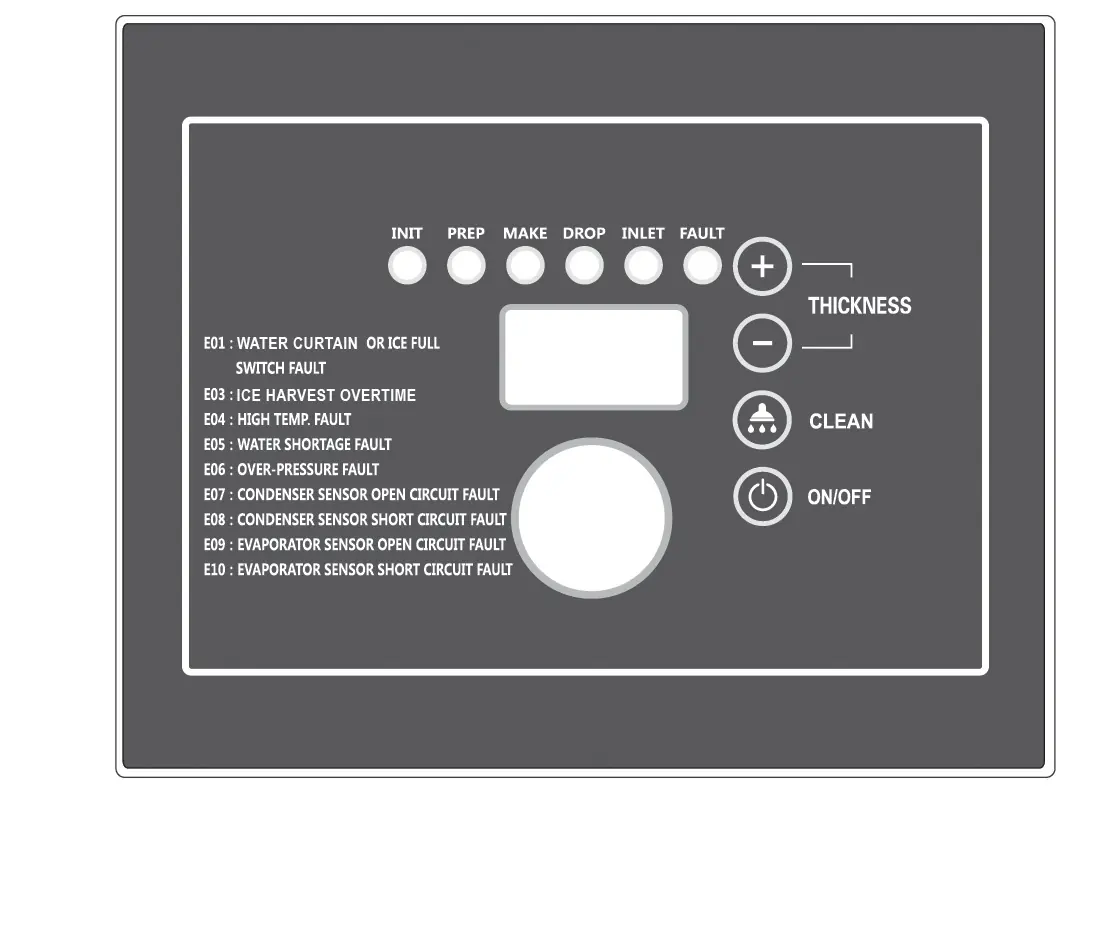

- Control panel diagram identifies buttons for thickness adjustment, cleaning, and power.
Model compatibility
- Designed for indoor use only.
- Not intended for residential use.
- Requires professional installation and maintenance.
Manual page author
David Miller
Documentation analyst
Organizes user manual content into clear summaries, with attention to model details, product context, and everyday usability.
