User Manual for Avantco Undercounter Ice Machine
Comprehensive user guide for Avantco Undercounter Ice Machines. Includes installation requirements, operation instructions, cleaning procedures, maintenance tips, and troubleshooting for models 194UCF120A, 194UCF160A, 194UCH160A...
Quick answers from the manual
Quick answer
- The Avantco Undercounter Ice Machine is an automatic commercial ice maker. It requires professional installation, a level floor, proper water pressure (18.75-80 psi), and regular cleaning with nickel-safe chemicals to maintain performance and warranty. p. 1, 4, 5
Key actions
- Keep the machine upright for 24 hours before first startup. p. 3
- Clean the condenser every three weeks. p. 12
First start
- Ensure the machine is level, connected to a grounded power source, and the water supply is open. p. 6, 7
Problems and fixes
E04 High Temperature
Clean the condenser and check for blocked airflow.
p. 10, 17
E06 High Pressure
Check the fan and high-pressure switch wires.
p. 10, 17Error codes
| Code | Meaning | Action | Pages |
|---|---|---|---|
| E03 | Ice harvest overtime | Protective shutdown | p. 10 |
| E05 | Water shortage | Protective shutdown | p. 10 |
Maintenance and reset
- Hold the 'clean' button for 3 seconds to start the cleaning process. p. 10, 13
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Water Pressure | 18.75 - 80 psi | Operating water pressure range | p. 5, 16 |
| Ambient Temperature | 40-90°F | Recommended operating temperature | p. 5, 16 |
Where to find it in the PDF
- Installation Schematic p. 5
- Control Panel p. 9
- Cleaning Instructions p. 13, 14, 15
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
This ice machine is designed for commercial use in indoor, ambient-controlled environments. Important: Upon delivery, keep the machine upright for at least 24 hours before startup to allow the refrigerant to settle. Installation, repair, and maintenance must be performed by professional and qualified personnel. Ensure the machine is placed on a level floor capable of supporting its weight and that it is properly grounded with leakage protection.
Installation
Proper installation is critical for performance and safety.
- Clearance: Maintain at least 12 inches of space at the front, 6 inches at the sides, and 8 inches at the rear for ventilation.
- Environment: Ambient temperature should be between 40-90°F. Avoid direct sunlight and heat sources.
- Water Supply: Use potable water with pressure between 18.75 psi and 80 psi. Do not connect to hot water.
- Drainage: Ensure proper floor drainage is available. The drain pipe should have a downward slope of at least 1 inch per 3 feet.
Operation
The machine operates automatically. Once the storage bin is full, the sensor will stop production. When ice is removed, production resumes.
- Startup: Turn on the power switch. The machine will perform a self-check and begin the ice-making cycle.
- Control Panel: Use the panel to monitor status (Init, Prep, Make, Harv, Inlet, Fault).
- Thickness Adjustment: During the ice-making process, press the "-" button for 3 seconds, then use "+" or "-" to adjust thickness. Each click extends or shortens the cycle by 1.5 minutes.
Cleaning and Sanitizing
Regular cleaning is required to maintain hygiene and warranty coverage.
- Clean Function: Hold the "clean" button for 3 seconds to enter the cleaning mode. Follow the prompts to add cleaning or sanitizing solutions to the water trough.
- Manual Cleaning: Periodically remove the water curtain, spray pipe, and pump to scrub them with a cleaning solution.
- Chemicals: All cleaning and sanitizing chemicals must be nickel-safe.
- Frequency: Clean every other month, or monthly in high-yeast environments.
Maintenance
- Exterior: Clean with mild detergent. Keep vents clear.
- Condenser: Clean every three weeks using a soft brush or vacuum.
- Water Filter: Inspect regularly and replace the cartridge every 3 to 6 months.
- Winterizing: If not in use for a long time, turn off water and power, and drain all residual water from the trough, inlet, and drain pipes.
Manufacturer information
Avantco Equipment
Practical help
Common problems
Machine not working
Ensure the power switch is turned on and the plug is secure.
High temperature fault (E04)
Clean the condenser and ensure proper ventilation around the machine.
Ice cubes too thin or incomplete
Check ice thickness settings, ensure water pressure is between 1.3 bar and 5.5 bar, and check if the water filter needs replacement.
Too much noise
Ensure the machine is placed on a level foundation and the legs are adjusted correctly.
Before use
- Keep the machine upright for at least 24 hours after delivery.
- Ensure the floor is level and can support the machine's weight.
- Verify water pressure is between 18.75 psi and 80 psi.
- Confirm the power supply matches the machine nameplate.
- Ensure the machine is properly grounded with leakage protection.
- Remove all packaging tape and items from the ice bin.
Specs in practice
- Water Pressure
- 18.75 psi to 80 psi (1.3 bar to 5.5 bar) required for proper operation.
- Ambient Temperature
- 40-90°F is the recommended operating range.
- Ventilation Clearance
- 12" front, 6" sides, 8" rear required to prevent overheating.
Images and diagrams

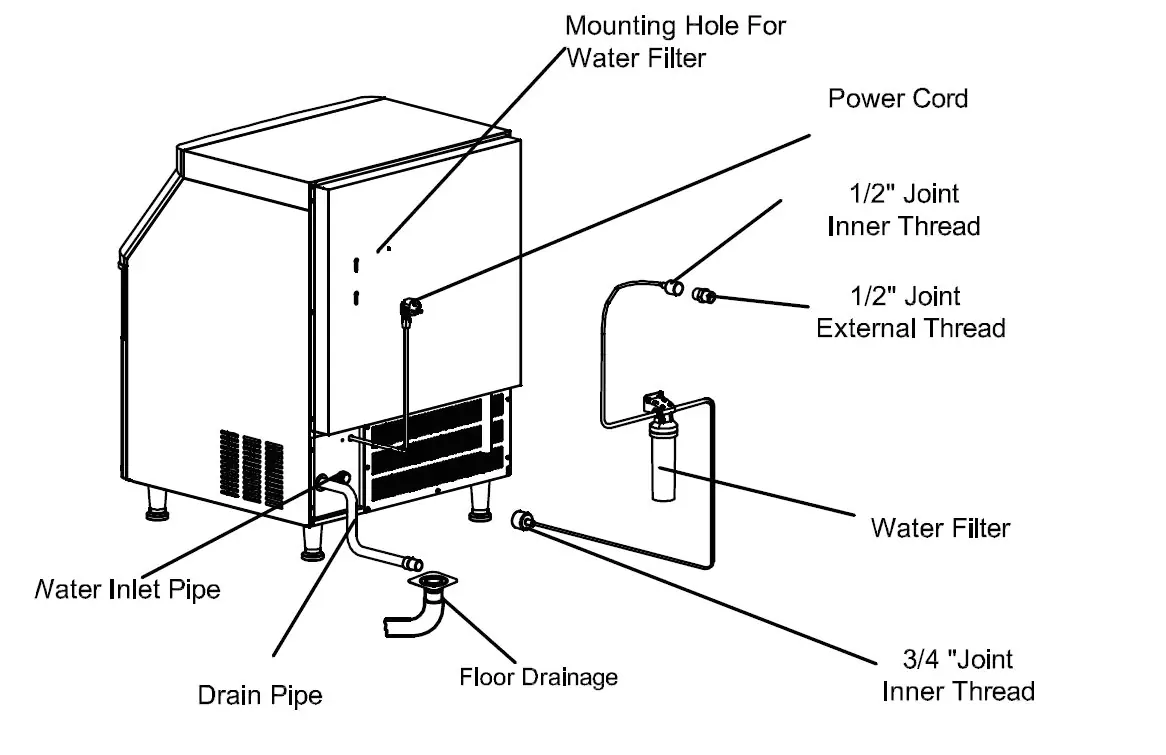

- The schematic diagram shows the connection points for the water inlet pipe, drain pipe, and the mounting location for the water filter.

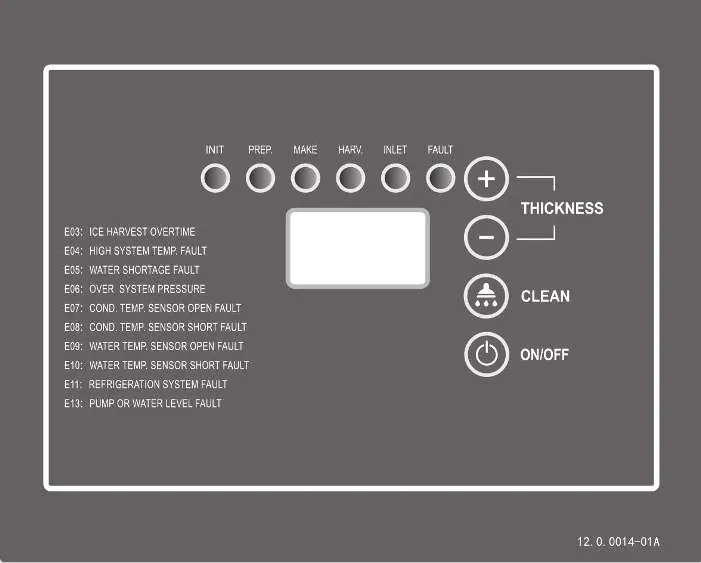

- The control panel diagram illustrates the LED status indicators and the buttons for thickness adjustment, cleaning, and power.
Model compatibility
- Use only approved C Pure water filtration systems.
- All cleaning and sanitizing chemicals must be nickel-safe.
