User Manual for Avantco Commercial Refrigerator

Comprehensive user guide for Avantco commercial refrigerators. Includes installation instructions, temperature control settings, maintenance procedures, and troubleshooting tips for optimal performance.

Quick answers from the manual

Quick answer

To adjust the temperature, hold the 'SET' button for 1 second until the display flashes, use the arrow buttons to set the new minimum temperature, and press 'SET' again to save. p. 4

Key actions

Clean the condenser coil p. 11
Manual defrost p. 5

First start

Wait 24 hours before plugging in if the unit was transported on its side. p. 3

Problems and fixes

Compressor not running

Replace fuse, reset breaker, plug in cord, or wait for defrost cycle to finish.

p. 12

Maintenance and reset

Clean condenser coil monthly. p. 11

Technical specifications

Parameter	Value	Meaning	Pages
Operating Temperature	33°F - 40°F	Standard cycle range for refrigerators.	p. 4

Where to find it in the PDF

Installation p. 3
Temperature Controls p. 4, 5
Maintenance p. 11
Troubleshooting p. 12

Table of contents

Manual images

Click an image to enlarge

Page 5

Page 9

Important Information

This unit uses flammable refrigerant. Repairs must only be performed by trained service personnel. Do not puncture refrigerant tubing. If the unit has been transported on its side, allow it to stand for at least 24 hours before plugging it in.

Installation Guidelines

Surface: Install on a strong, level surface to prevent noise and malfunction.
Clearance: Maintain at least 4 inches of clearance at the back and 3 inches around all louvered or vented panels for proper airflow.
Environment: Use indoors in a well-ventilated area. Avoid high humidity, dusty areas, and locations near heat-generating equipment.
Shelving: Ensure shelf lips are facing up towards the rear of the cabinet to promote airflow.

Electrical Requirements

Plug into a grounded, properly-sized electrical outlet with overcurrent protection.
Use a dedicated outlet for the unit.
Do not use extension cords.

Temperature Controls

The unit is factory-set to cycle between 33°F and 40°F. To adjust the minimum temperature:

Hold the "SET" button for 1 second until the display flashes.
Use the arrow buttons to adjust the desired minimum temperature.
Press "SET" again to save the settings.

Note: The cabinet temperature will fluctuate up to +7 degrees over the set minimum as the compressor cycles.

Loading Product

Ensure all shelf clips are fastened and shelves are level.
Leave 2 to 4 inches of space between the back wall and stored product to maintain airflow.
Blocking evaporator fans can lead to compressor failure.
For prep units, keep pans in place even if empty. Close the insulated lid when not in use.

Maintenance

Condenser Coil: Clean at least once per month using a commercial condenser coil cleaner. Brush fins from top to bottom.
Interior: Use warm water and mild soap. Do not use steel wool, abrasive cleaners, or bleach.
Gaskets: Wash door gaskets weekly in warm soapy water, dry, and replace.

Manufacturer information

Avantco Equipment

Brand profile

Manufacturer website https://www.avantco.com Support https://www.avantco.com/support

Practical help

Common problems

Compressor not running

Check if the fuse is blown or circuit breaker tripped. Ensure the unit is plugged in. Check if the unit is in a defrost cycle.

Unit running for long periods

Ensure doors are closed properly. Check if the condenser coil is dirty or if the evaporator coil is iced over.

Cabinet temperature too warm

Check for blocked airflow, ensure 4-inch clearance, and verify the thermostat setting.

Before use

Ensure the unit is on a level surface.
Allow the unit to stand for 24 hours if it was transported on its side.
Install all shelves and shelf clips.
Ensure 4 inches of clearance at the back.
Plug into a dedicated, grounded outlet.

Specs in practice

Temperature Range: Factory-set to cycle between 33°F and 40°F.

Images and diagrams

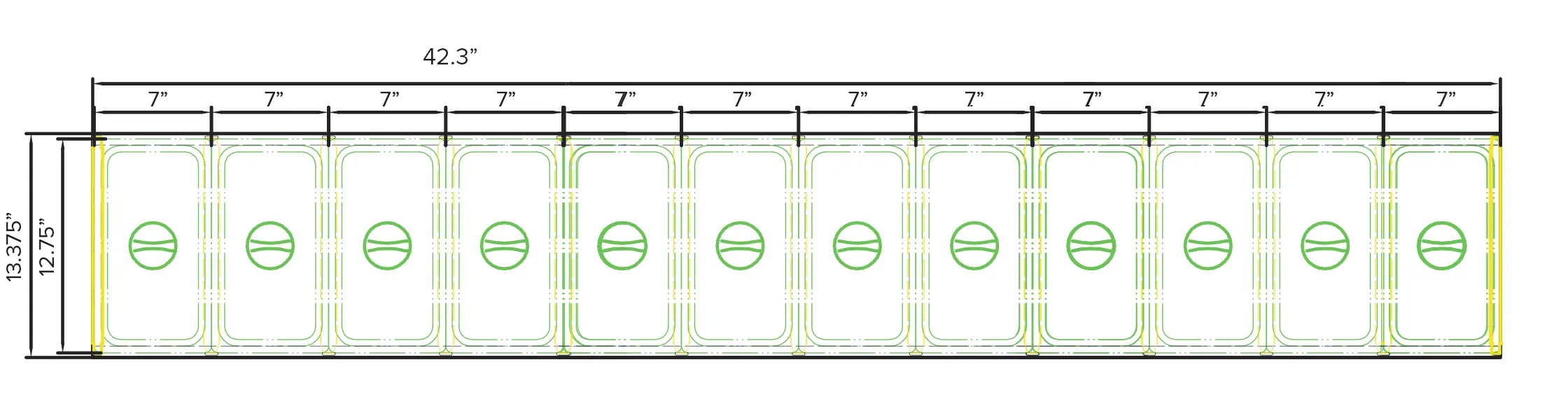

The manual provides detailed layouts for food pans based on the specific model (e.g., 1/6 size vs 1/3 size pans).
Refer to the divider bar tables to identify the correct item numbers for your specific unit configuration.

Model compatibility

Indoor use only.
Do not use in areas exceeding 80°F with the lid open, or 90°F generally.
