User Manual for Avantco Commercial Refrigerator and Freezer
Quick guide for Avantco commercial refrigerators and freezers. Learn about installation, temperature settings, maintenance, and troubleshooting.
Quick answers from the manual
Quick answer
- The unit is factory-set for optimal food safety and should not require adjustments. If you must adjust the temperature, use the digital control panel by holding the 'SET' button for 1 second. p. 4
Key actions
- Wait 24 hours before plugging in if the unit was transported on its side. p. 3
- Clean the condenser coil at least once per month. p. 5
First start
- Ensure the unit is on a level surface, has 6 inches of clearance, and has stood upright for 24 hours if transported on its side. p. 3
Problems and fixes
Compressor not running
Check power supply, thermostat setting, or wait for defrost cycle to finish.
p. 6Maintenance and reset
- Clean condenser coil monthly, wash door gaskets weekly, and clean interior with mild soap. p. 5
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Refrigerator Temp Range | 33°F - 40°F | Operating temperature range | p. 4 |
| Freezer Temp Range | -5°F - 2°F | Operating temperature range | p. 4 |
Where to find it in the PDF
- Installation p. 3
- Temperature Controls p. 4
- Maintenance p. 5
- Troubleshooting p. 6
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual

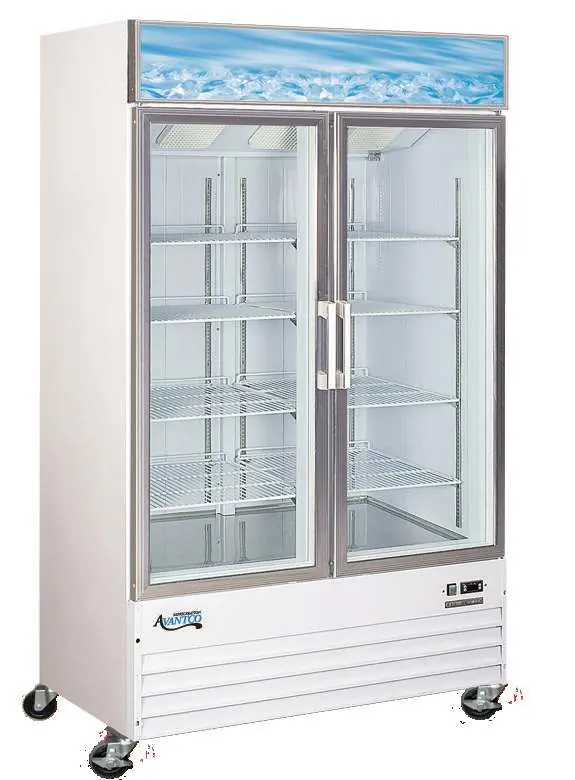

This manual covers the operation and maintenance of Avantco commercial glass door refrigerators and freezers. Important: These units use flammable refrigerant. Repairs must only be performed by trained service personnel. If the unit was transported on its side, you must let it stand upright for at least 24 hours before plugging it in to avoid compressor damage.

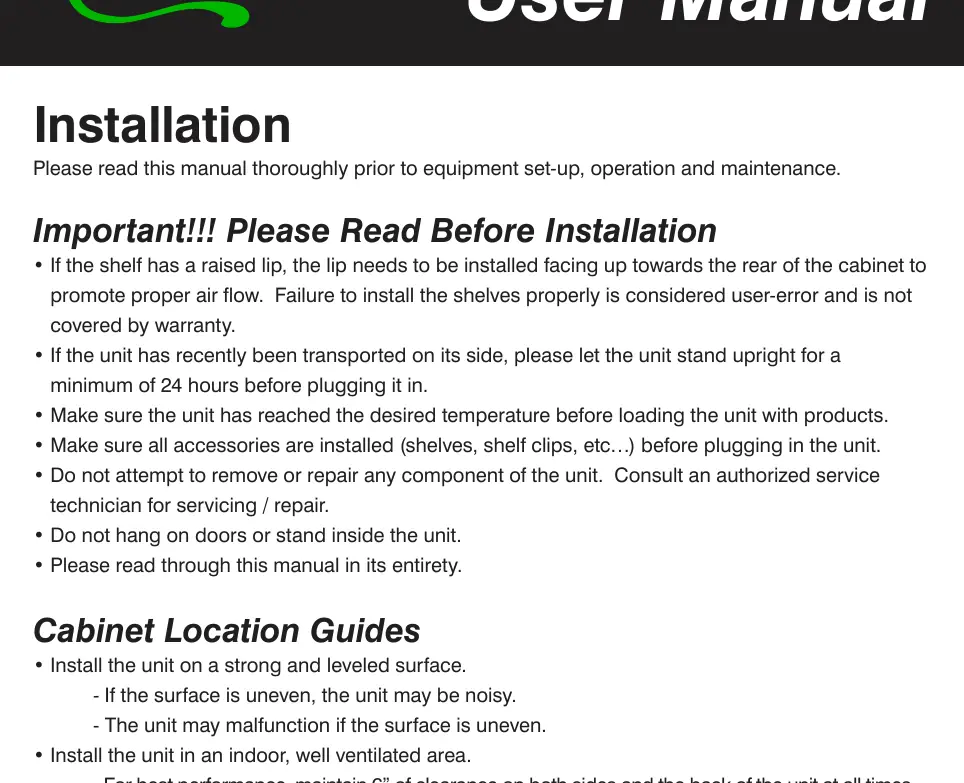

Installation
Proper installation is critical for performance and warranty coverage.
- Surface: Install on a strong, level surface to prevent noise and malfunction.
- Clearance: Maintain a minimum of 6 inches of clearance on both sides and the back of the unit at all times for proper airflow.
- Environment: Use indoors in a well-ventilated area. Avoid direct sunlight, high humidity, and dusty environments, as these can cause the condenser coil to fail and void the warranty.
- Placement: Keep away from heat and moisture-generating equipment.
Electrical Requirements
- The unit requires a dedicated, grounded, and properly-sized electrical outlet.
- Do not use extension cords.
- Ensure the unit is not resting on the power cord.
- If unplugging the unit, wait at least 10 minutes before plugging it back in to protect the compressor.
Temperature Controls
Units are factory-set for optimal food safety and typically require no adjustments.
- Refrigerator Range: 33°F to 40°F.
- Freezer Range: -5°F to 2°F.
- Adjusting Temperature: Hold the "SET" button for 1 second until the display flashes. Use the arrow buttons to adjust the minimum temperature, then press "SET" again to save.
Defrosting
Units perform automatic defrost cycles. To run a manual defrost cycle (digital models only):
- Freezers: Press the defrost button ("def" and down arrow) for approximately 5 seconds.
- Refrigerators: Press the defrost button (snowflake symbol and down arrow) for approximately 3 seconds.
Maintenance and Cleaning
- Condenser Coil: Clean at least once per month using a commercial condenser coil cleaner to ensure efficient operation.
- Interior: Use warm water and mild soap. Do not use steel wool, caustic soap, or bleach.
- Gaskets: Remove door gaskets weekly, soak in warm soapy water, dry, and replace. Check for a proper seal after reinstallation.
- Loading: Do not block the air duct/fan. Maintain at least 4 inches of clearance between products and the fan.
Manufacturer information
Avantco Equipment
Practical help
Common problems
Compressor is not running
Check if the fuse is blown or circuit breaker tripped. Ensure the power cord is plugged in. If the unit is in a defrost cycle, wait for it to finish.
Cabinet temperature is too warm
Check if the thermostat is set too high. Ensure airflow is not blocked (maintain 4 inches of clearance from the fan). Check if the door is fully closed.
Interior light is not working
Turn the light switch off and back on. Ensure the bulb is correctly inserted in the socket or replace the bulb if burned out.
Condensation on cabinet or floor
Inspect the door gasket for a proper seal. Clean, repair, or replace the gasket as necessary.
Before use
- Ensure the unit is on a strong, level surface.
- If transported on its side, let the unit stand upright for at least 24 hours before plugging in.
- Verify the unit is in a well-ventilated indoor area with 6 inches of clearance on all sides.
- Ensure all accessories (shelves, clips) are installed.
- Confirm the unit has reached the desired temperature before loading products.
Specs in practice
- Refrigerator Temperature Range
- 33°F to 40°F (factory set for food safety).
- Freezer Temperature Range
- -5°F to 2°F (factory set for food safety).
- Condenser Cleaning
- Recommended at least once per month for efficiency.
Images and diagrams
- The digital control panel allows for temperature adjustment and manual defrost initiation.
- The condenser coil requires regular cleaning to prevent malfunction.
Model compatibility
- Only models with digital controls support manual defrost cycles.
- Outdoor use is not recommended and may void the warranty.
