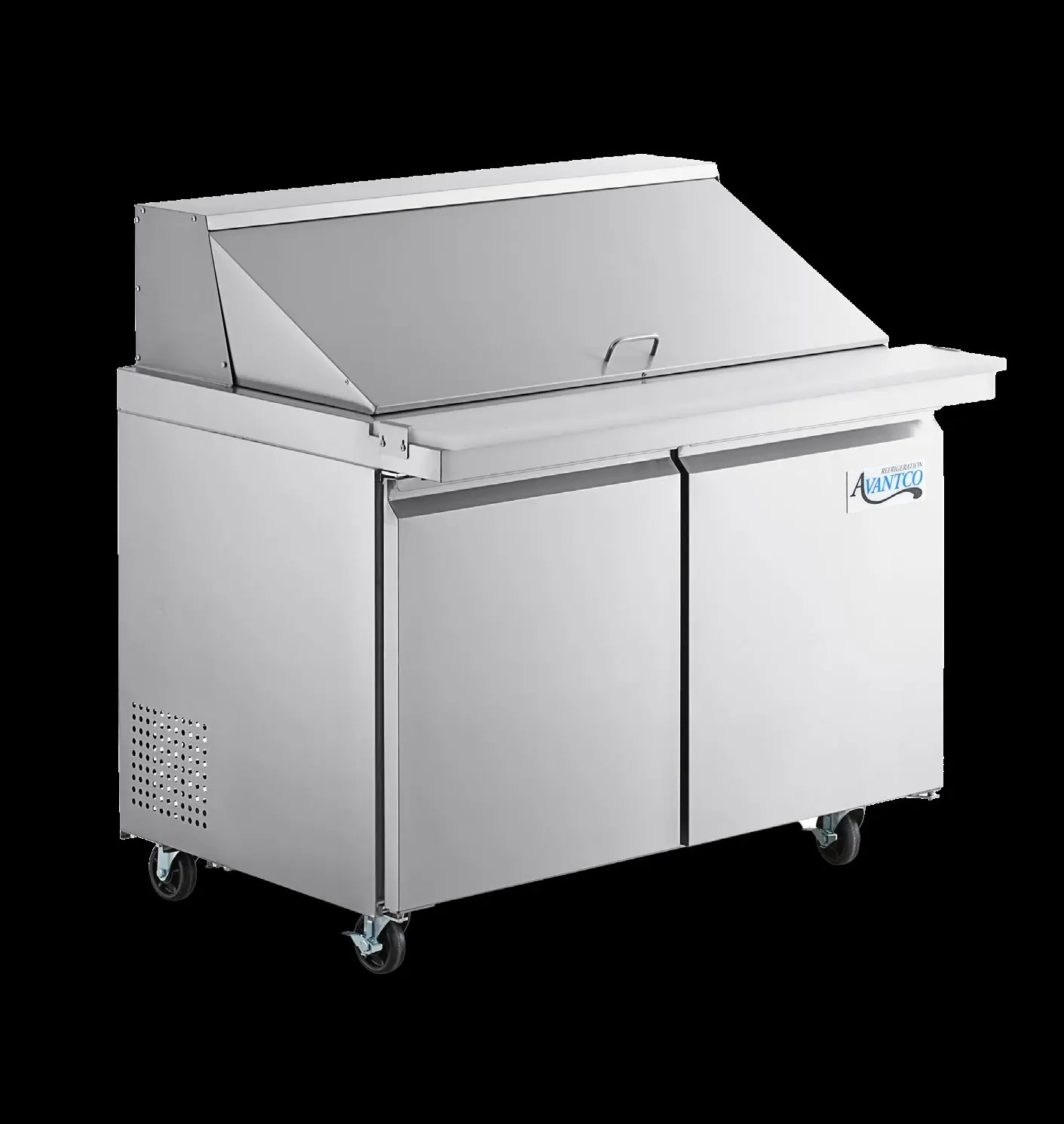

User Manual for Avantco SS Series Prep Tables
Quick guide for Avantco SS Series Prep Tables. Includes installation, temperature adjustment, maintenance, cleaning, and troubleshooting steps.
Quick answers from the manual
Quick answer
- The Avantco SS Series Prep Tables are factory-set to cycle between 33°F and 40°F. To adjust, hold the 'SET' button for 1 second, use arrows to change the temperature, and press 'SET' again to save. p. 6
Key actions
- Clean the condenser coil at least once per month to prevent compressor damage. p. 8, 9
- Wait 24 hours before plugging in if the unit was transported on its side. p. 5
First start
- Ensure the unit is on a level surface, has 3 inches of clearance, and is in an environment below 75°F. p. 5, 6
Problems and fixes
Compressor Not Running
Check fuse/breaker, power cord, thermostat setting, or wait for defrost cycle.
p. 15Maintenance and reset
- Disconnect power before cleaning. Clean condenser coil, fan blades, and interior with mild soap. p. 8, 9
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Operating Temperature Range | 33°F - 40°F | Factory-set cycle range. | p. 6 |
Where to find it in the PDF
- Installation and Location p. 5, 6
- Operation and Maintenance p. 8, 9
- Troubleshooting p. 15, 16
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual covers the operation and maintenance of Avantco SS Series Prep Tables. Key requirements for proper operation include maintaining an ambient temperature below 75°F and relative humidity below 60%. Failure to adhere to these conditions may void the warranty. Always ensure the unit is on a level surface and has at least 3 inches of clearance at the back for proper ventilation.
Installation
Proper installation is critical for the longevity of the unit:
- Surface: Install on a strong, level surface to prevent noise and malfunction.
- Environment: Use indoors only, away from direct sunlight and heating sources.
- Clearance: Maintain at least 3 inches of clearance around all louvered or vented panels.
- Initial Setup: If the unit was transported on its side, let it stand for at least 24 hours before plugging it in.
- Electrical: Use a dedicated, grounded outlet. Do not use extension cords.
Adjusting Temperature
The refrigerator is factory-set to cycle between 33°F and 40°F. To adjust the minimum temperature:
- Hold the SET button for 1 second until the display flashes the current minimum temperature.
- Use the arrow buttons to adjust to the desired temperature.
- Press SET again to save the new setting.
Note: The cabinet temperature will fluctuate up to +7°F over your set minimum as the compressor cycles.
Maintenance and Cleaning
Regular maintenance ensures efficient operation:

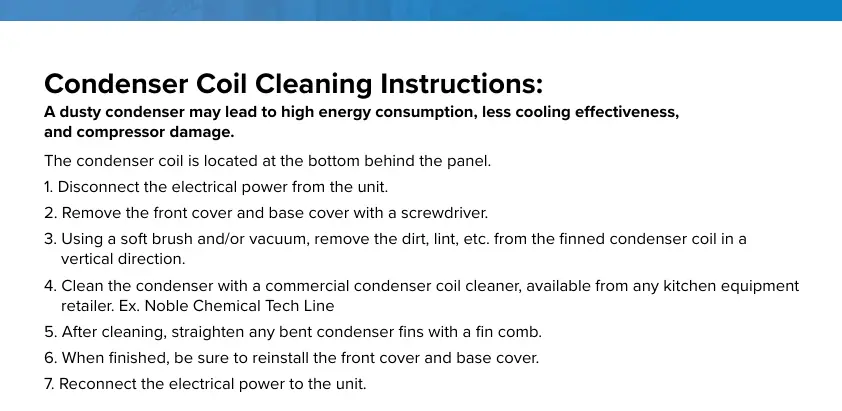

- Condenser Coil: Clean at least once per month. Disconnect power, remove the front/base cover, and use a soft brush or vacuum to remove dirt and lint from the finned coil.
- Interior: Clean with warm water and mild soap. Avoid abrasive cleaners, steel wool, or bleach.
- Gaskets: Wash door gaskets weekly with warm water and soap. Check for proper seal after cleaning.
- Fan Blades/Motor: Clean with a soft cloth. If washing, cover the motor to prevent moisture damage.
Troubleshooting
If the unit is not performing correctly, check the following:
- Compressor Not Running: Check for a blown fuse or tripped breaker, ensure the power cord is plugged in, or wait if the unit is in a defrost cycle.
- Cabinet Too Warm: Check if the thermostat is set too high, airflow is blocked, the condenser coil is dirty, or the door is ajar.
- Condensation: Ensure gaskets are sealing properly and the ambient humidity is below 60%.
Manufacturer information
Avantco Equipment
Practical help
Common problems
Compressor not running
Check fuse/circuit breaker, ensure power cord is plugged in, or wait for defrost cycle to finish.
Cabinet temperature too warm
Lower thermostat setting, clear airflow obstructions, clean condenser coil, or ensure doors are closed.
Condensation on cabinet/floor
Check door gaskets for proper seal and ensure ambient humidity is below 60%.
Before use
- Ensure the unit is on a strong, level surface.
- Maintain 3 inches of clearance at the back of the unit.
- If transported on its side, let the unit stand for 24 hours before plugging in.
- Ensure the unit is in a temperature-controlled environment (below 75°F).
- Verify all accessories (shelves, clips, casters) are installed.
Specs in practice
- Operating Temperature
- Factory-set to cycle between 33°F and 40°F.
- Ambient Conditions
- Must be below 75°F and 60% relative humidity for warranty coverage.
Images and diagrams
- The digital controller allows adjustment of the minimum running temperature.
- Condenser coil is located at the bottom behind the front panel.
Model compatibility
- Units are designed to function with all food pans in place, even if some are empty.
- Ensure shelves with raised lips are installed with the lip facing the rear.
