User Manual for Avantco Commercial Refrigerator and Freezer
Comprehensive user guide for Avantco commercial refrigerators and freezers. Includes installation guidelines, temperature control settings, manual defrost procedures, maintenance instructions, and troubleshooting steps.
Quick answers from the manual
Quick answer
- This manual covers the operation and maintenance of Avantco commercial refrigerators and freezers. It includes instructions for temperature adjustment, manual defrosting, and troubleshooting common issues like temperature fluctuations or compressor problems. p. 1, 4, 5, 8
Key actions
- Adjusting the temperature p. 4
- Running a manual defrost p. 5
First start
- Initial setup requirements p. 3
Problems and fixes
Compressor not running
Check fuse/breaker, ensure power cord is plugged in, check thermostat setting, or wait for defrost cycle to finish.
p. 8Maintenance and reset
- Regular maintenance p. 7
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Refrigerator Temp | 33°F - 40°F | Operating cycle range | p. 4 |
| Freezer Temp | -5°F - 2°F | Operating cycle range | p. 4 |
Where to find it in the PDF
- Installation p. 3
- Temperature Controls p. 4, 5
- Maintenance p. 7
- Troubleshooting p. 8
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential instructions for the setup, operation, and maintenance of Avantco commercial refrigerators and freezers. Important Safety Warning: These units use flammable refrigerant. Repairs must only be performed by trained service personnel. Do not puncture refrigerant tubing.

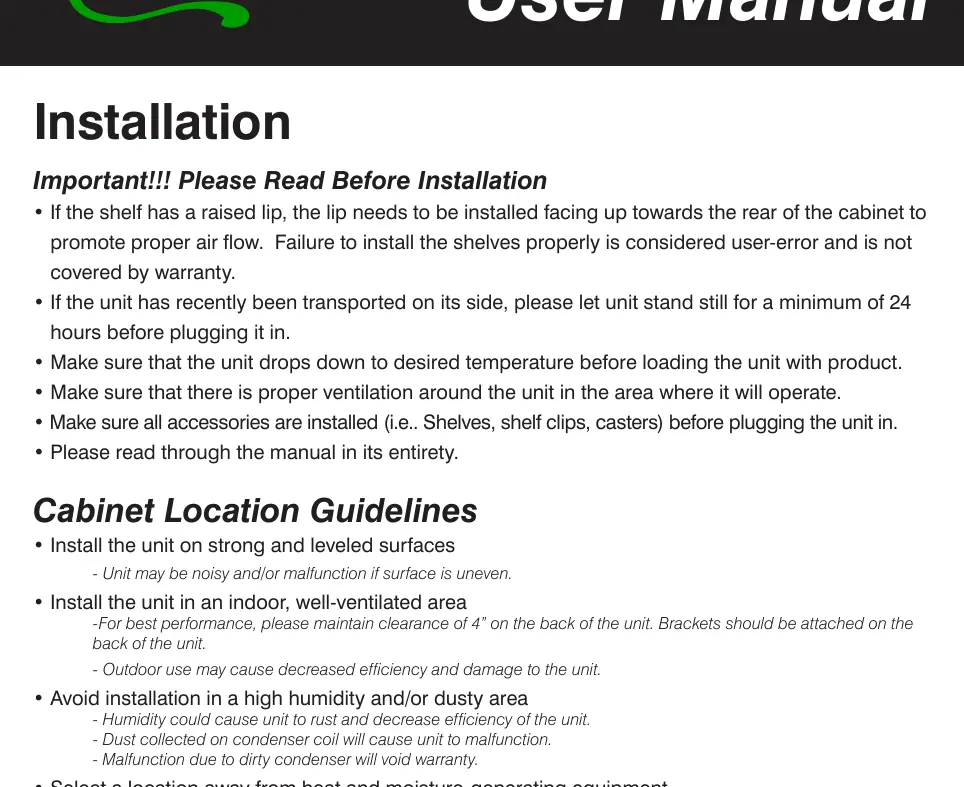

Installation
Proper installation is critical for performance and warranty coverage:
- Surface: Install on a strong, level surface to prevent noise and malfunction.
- Transport: If the unit was transported on its side, let it stand for at least 24 hours before plugging it in.
- Clearance: Maintain at least 4 inches of clearance at the back and 3 inches around all vented panels for proper airflow.
- Environment: Install indoors in a well-ventilated area. Avoid high humidity, dusty areas, and locations near heat-generating equipment.
- Electrical: Use a dedicated, grounded, and properly-sized electrical outlet. Do not use extension cords.
Temperature Controls
Units are factory-set to optimal temperatures. To adjust the minimum temperature:
- Hold the SET button for 1 second until the display flashes.
- Use the arrow buttons to adjust the temperature.
- Press SET again to save the new setting.
Note: The cabinet temperature will fluctuate up to +7 degrees above the set minimum as the compressor cycles.
Loading Product
Ensure all shelf clips are securely fastened and shelves are level before loading. Maintain 2 to 4 inches of space between the back wall and stored product to ensure proper airflow. Blocking evaporator fans can lead to warmer temperatures and compressor failure.
Running a Manual Defrost Cycle
Units are pre-programmed for automatic defrosting. To run a manual cycle:
- Freezers: Press the defrost button (labeled 'def' and down arrow) for approximately 5 seconds. Repeat to stop.
- Refrigerators: Press the defrost button (snowflake symbol and down arrow) for approximately 3 seconds. Repeat to stop.
Regular Maintenance
Warning: Always disconnect the power cord before cleaning.
- Condenser Coil: Clean at least once per month using a commercial condenser coil cleaner. Brush fins from top to bottom.
- Interior: Use warm water and mild soap. Avoid steel wool, caustic soaps, or bleach.
- Gaskets: Wash door gaskets weekly. Remove, soak in warm soapy water, dry, and replace.
Manufacturer information
Avantco Equipment
Practical help
Common problems
Compressor not running
Check if the fuse is blown or circuit breaker tripped. Ensure the power cord is plugged in. Verify the thermostat is not set too high or the unit is not in a defrost cycle.
Unit runs for long periods
Ensure doors are closed properly. Check if the condenser coil is dirty (clean it) or if the evaporator coil is iced over (unplug and allow to defrost).
Cabinet temperature too warm
Ensure airflow is not blocked (maintain 4 inches clearance from evaporator). Check if the thermostat is set too warm or if the unit is overloaded with warm product.
Before use
- Ensure the unit is on a level surface.
- If transported on its side, let the unit stand for 24 hours before plugging in.
- Install all shelves and shelf clips.
- Ensure 4-inch clearance at the back and 3-inch clearance around vents.
- Plug into a dedicated, grounded outlet.
Specs in practice
- Refrigerator Temperature Range
- Cycles between 33°F and 40°F.
- Freezer Temperature Range
- Cycles between -5°F and 2°F.
Images and diagrams
- The control panel features a digital display with buttons for setting temperature (SET), manual defrost (def), and navigation (arrows).
Model compatibility
- Indoor use only.
- Do not use extension cords.
- Do not store flammable or explosive gases/liquids inside.
